NCZ20-AHPXK (2003)
Toyota Raum

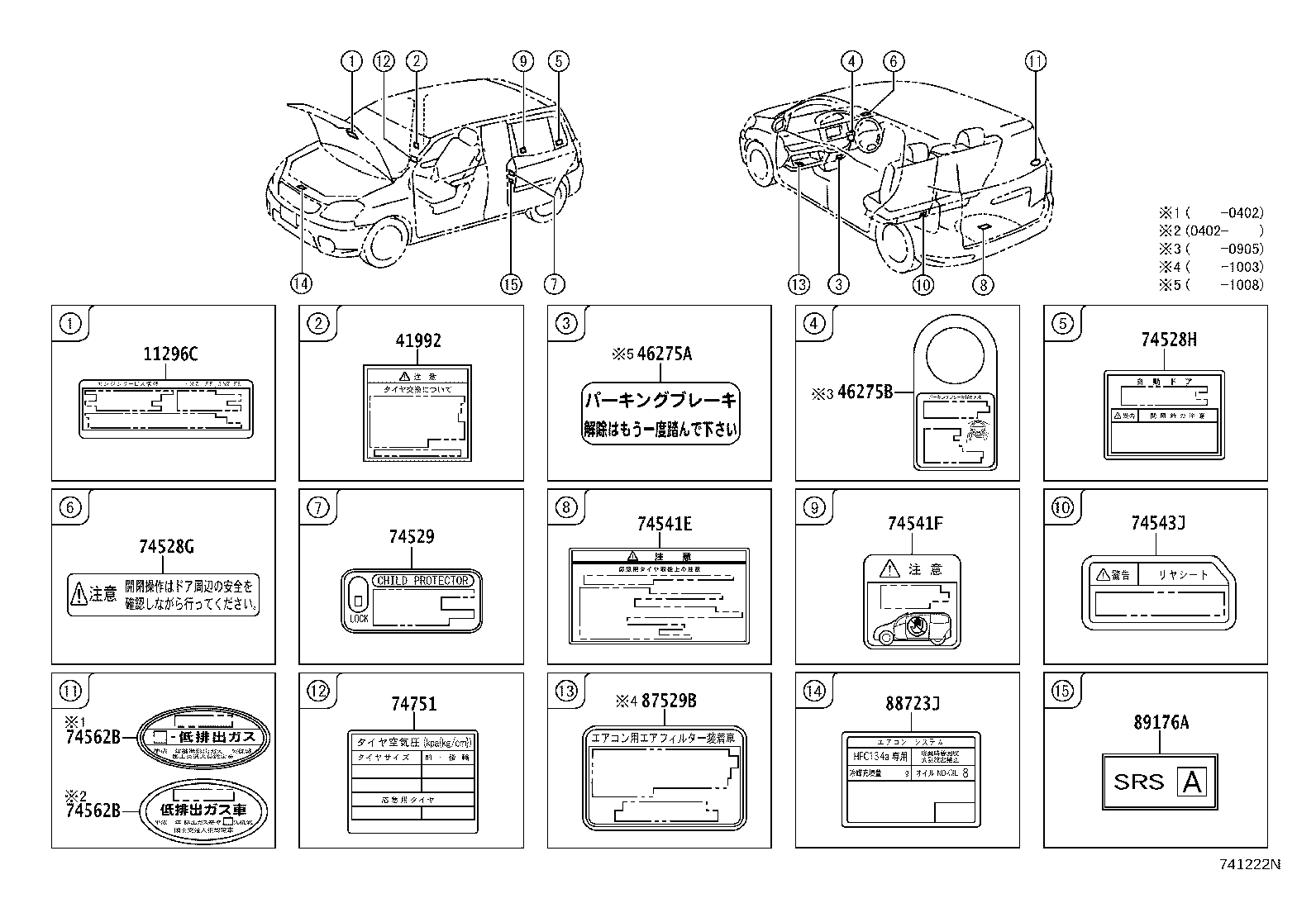

ILLUST NO. 2 OF 3(0304- )
ｴﾝｼﾞﾝﾙｰﾑ& ｶﾞｲｿｳﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11296C - LABEL, ENGINE SERVICE INFORMATION | ||||
| 11296-21021 |
1NZFE..NCZ2# |
1 | ||
| 46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1 | ||||
| 46275-22010B0 |
NCZ2# GRAY,TRIM1# |
1 | ||
| 46275-22010A0 |
NCZ2# WHITE,TRIM4# |
1 | ||
| 46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2 | ||||
| 46275-47010 |
NCZ2# |
1 | ||
| 74528G - LABEL, POWER SLIDE DOOR CAUTION | ||||
| 85628-26011 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 85628-26011 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 74528H - LABEL, POWER SLIDE DOOR CAUTION | ||||
| 74528-28080 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 74528-28080 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 74528-28080 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 74528-28080 |
NCZ2# S PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 74528-28080 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 74528-28080 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 74528-28080 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 74528-28080 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 74528-28080 |
NCZ2# G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 74528-28080 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 74528-28080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 74528-28080 |
NCZ2# C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION | ||||
| 69339-12010 |
NCZ2# |
2 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-28060 |
NCZ2# |
1 | ||
| 74541F - LABEL, SLIDE DOOR GLASS CAUTION | ||||
| 74541-46020 |
NCZ2# |
2 | ||
| 74543J - LABEL, REAR SEAT CAUTION | ||||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74543-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 74562B - LABEL, EMISSION INFORMATION | ||||
| 74562-40050 |
NCZ2# H12 排出ｶﾞｽ75%低減 |
1 | ||
| 74562-12610 |
NCZ2# H17 排出ｶﾞｽ50%低減 |
1 | ||
| 74562-47010 |
NCZ2# H17 排出ｶﾞｽ75%低減 |
1 | ||
| 74562B - LABEL, EMISSION INFORMATION | ||||
| 74562-40050 |
NCZ2# H12 排出ｶﾞｽ75%低減 |
1 | ||
| 74562-12610 |
NCZ2# H17 排出ｶﾞｽ50%低減 |
1 | ||
| 74562-47010 |
NCZ2# H17 排出ｶﾞｽ75%低減 |
1 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-52121 |
NCZ20 |
1 | ||
| 42661-46030 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 42661-46040 |
NCZ20 |
1 | ||
| 87529B - LABEL, A/C FILTER INFORMATION | ||||
| 87529-50020 |
NCZ2# |
1 | ||
| 87529-50020 |
NCZ2# “HIDｾﾚｸｼｮﾝ” *(T)&ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 87529-50020 |
NCZ2# “HIDｾﾚｸｼｮﾝ” *(T) |
1 | ||
| 87529-50020 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 88723J - LABEL, COOLER SERVICE CAUTION, NO.2 | ||||
| 88733-52030 |
NCZ2# |
1 | ||
| 89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION | ||||
| 89176-32010 |
NCZ2# |
1 | ||

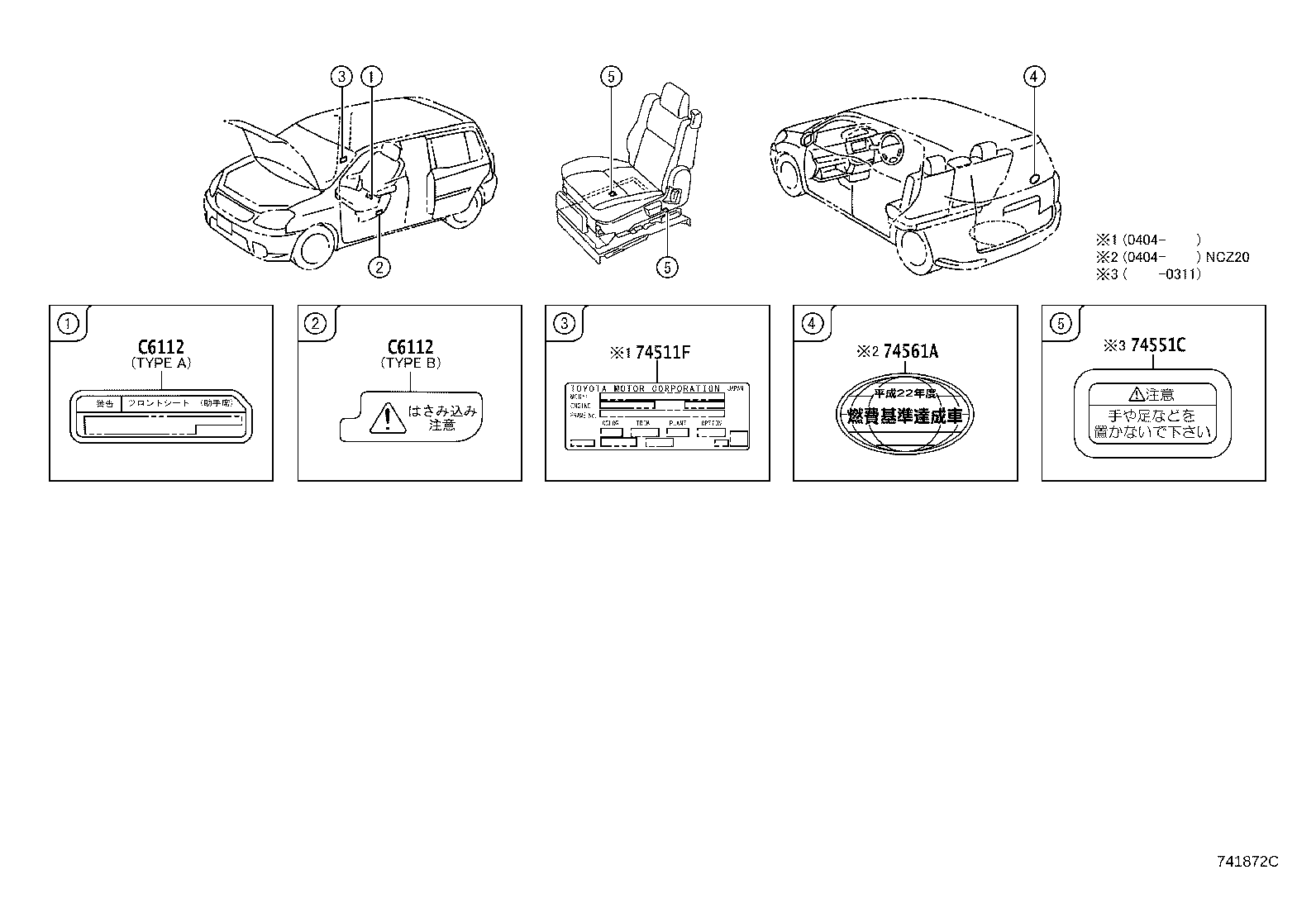

ILLUST NO. 3 OF 3(0304- )
ｶﾞｲｿｳﾊﾟﾈﾙ&ﾅｲｿｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-2B300 |
NCZ2# *111 |
1 | ||
| 74551C - PLATE, REAR SEAT PROTECTOR CAUTION | ||||
| 74553-46070 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 74561A - LABEL, FUEL CONSUMPTION INFORMATION | ||||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 74561-52010 |
NCZ20 |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付ﾀｲﾌﾟ1) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 74561-52010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| C6112 - LABEL, SAFETY INFORMATION, NO.2 | ||||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ,TYPd B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46060 |
NCZ2# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,TYPE B:Cﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,TYPd B:ｲﾗｽﾄ参照 |
1 | ||
| C6112 - LABEL, SAFETY INFORMATION, NO.2 | ||||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ,TYPd B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46060 |
NCZ2# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,TYPE B:Cﾗｽﾄ参照 |
1 | ||
| 74553-46080 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,TYPd B:ｲﾗｽﾄ参照 |
1 | ||

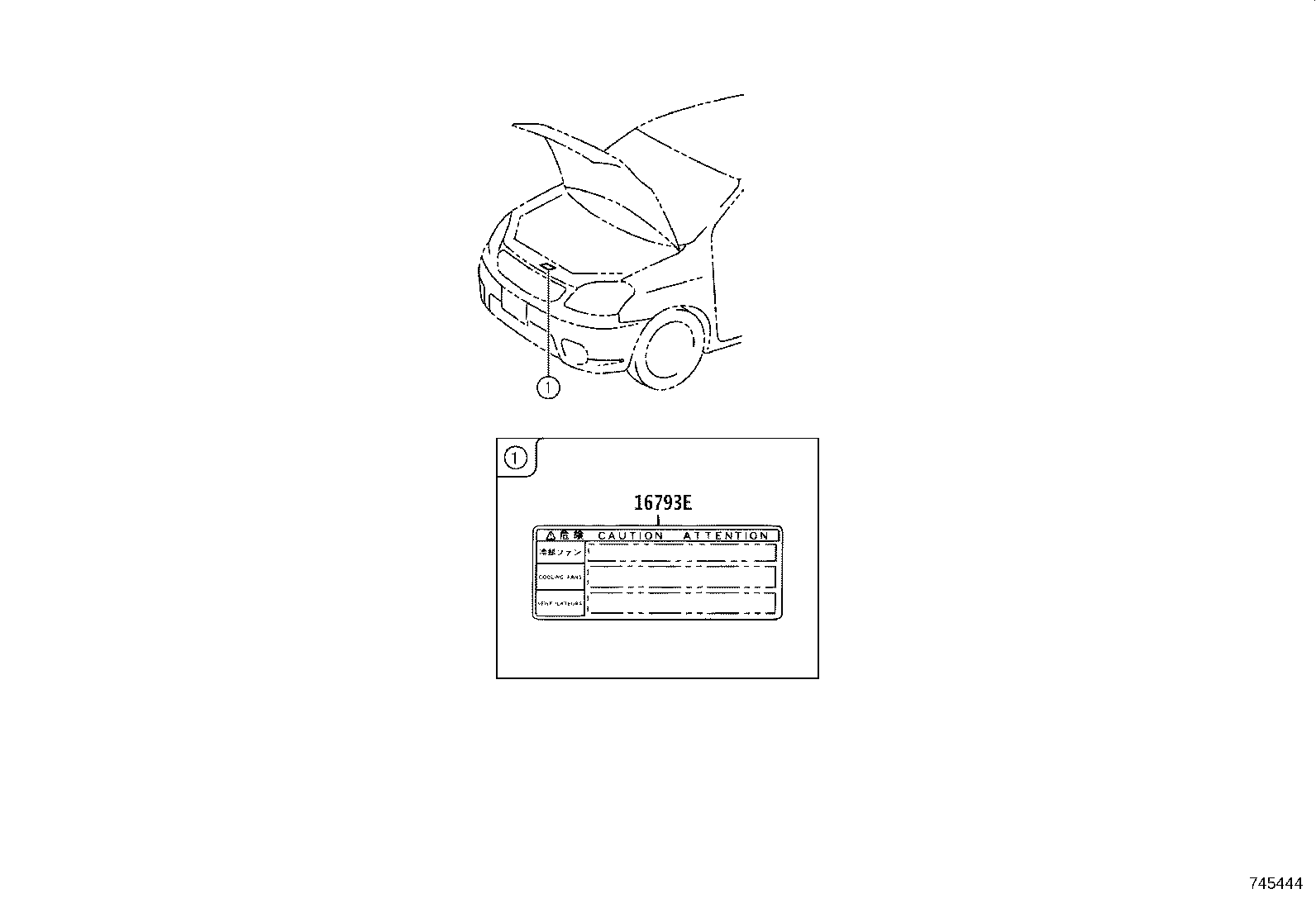

ILLUST NO. 1 OF 3(0304- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16793E - LABEL, COOLING FAN CAUTION | ||||
| 16793-46010 |
1NZFE..NCZ2# |
1 | ||
