NCZ20-AHPXK (2003)
Toyota Raum

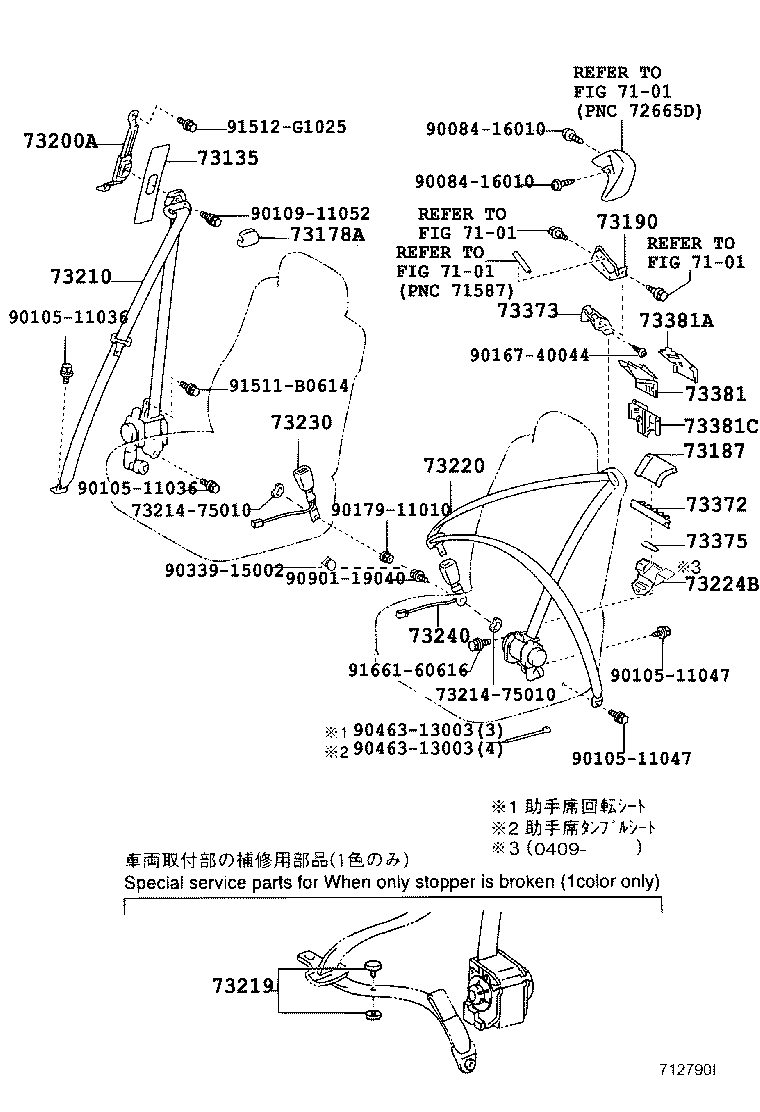

ILLUST NO. 1 OF 2(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-46010A0 |
NCZ2# IVORY,TRIM4# |
1 | ||
| 73135-46010B0 |
NCZ2# LT.GRAY,TRIM1# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020A1 |
NCZ2# IVORY,TRIM4# |
1 | ||
| 73178-33020B3 |
NCZ2# LT.GRAY,TRIM1# |
1 | ||
| 73187 - GUIDE, FRONT SEAT SHOULDER BELT | ||||
| 73187-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 73187-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 73187-46010 |
NCZ2# “HIDｾﾚｸｼｮﾝ” *(T) |
1 | ||
| 73187-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ) |
1 | ||
| 73187-46010B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 73187-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ |
1 | ||
| 73187-46010E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73187-46010 |
NCZ2# “ｽﾏｲﾙｴﾃﾞｨｼｮﾝ” *(F) |
1 | ||
| 73187-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ) |
1 | ||
| 73187-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ) |
1 | ||
| 73187-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ |
1 | ||
| 73187-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ) |
1 | ||
| 73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH | ||||
| 73012-46010 |
NCZ2# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52010A0 |
NCZ2# IVORY,TRIM4# |
1 | ||
| 73200-52010B0 |
NCZ2# LT.GRAY,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-46040B0 |
NCZ2# LT.GRAY,TRIM1# |
1 | ||
| 73210-46040A0 |
NCZ2# IVORY,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NCZ2# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-46050E0 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,FAWN,TRIM4# |
1 | ||
| 73220-46050B1 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,SHADOW GRAY,TRIM1# |
1 | ||
| 73220-46050E0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,FAWN,TRIM4# |
1 | ||
| 73220-46060E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73220-46060B1 |
NCZ2# SHADOW GRAY,TRIM1# |
1 | ||
| 73220-46050B1 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,SHADOW GRAY,TRIM1# |
1 | ||
| 73220-46070E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ),FAWN,TRIM4# |
1 | ||
| 73220-46070E0 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,FAWN,TRIM4# |
1 | ||
| 73220-46070E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ),FAWN,TRIM4# |
1 | ||
| 73220-46070E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ,FAWN,TRIM4# |
1 | ||
| 73220-46080E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73220-46080B0 |
NCZ2# SHADOW GRAY,TRIM1# |
1 | ||
| 73220-46070E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ,FAWN,TRIM4# |
1 | ||
| 73220-46070E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,FAWN,TRIM4# |
1 | ||
| 73220-46070E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,FAWN,TRIM4# |
1 | ||
| 73220-46070E0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,FAWN,TRIM4# |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ) |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-46030B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 73230-46030E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-46020B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 73240-46030B0 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,MD.GRAY,TRIM1# |
1 | ||
| 73240-46030E0 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73240-46020E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73240-46030B0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,MD.GRAY,TRIM1# |
1 | ||
| 73240-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73240-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73240-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73240-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席回転ｼｰﾄ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73240-46030E0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73240-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73240-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ(左席のみ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73372-46010 |
NCZ2# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-46010B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 73373-46010E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-46010E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73375-46010B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 73381 - HOLDER, REAR SEAT BELT | ||||
| 73381-44010 |
NCZ2# |
1 | ||
| 73381-46010 |
NCZ2# |
1 | ||
| 73381A - HOLDER, REAR SEAT BELT NO.2 | ||||
| 73381-44020 |
NCZ2# |
1 | ||
| 73381C - HOLDER, SEAT BELT | ||||
| 73381-44030 |
NCZ2# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90084-16010 | ||||
| 90105-11036 | ||||
| 90105-11047 | ||||
| 90109-11052 | ||||
| 90167-40044 | ||||
| 90179-11010 | ||||
| 90339-15002 | ||||
| 90463-13003 | ||||
| 90901-19040 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 7101 | ||||

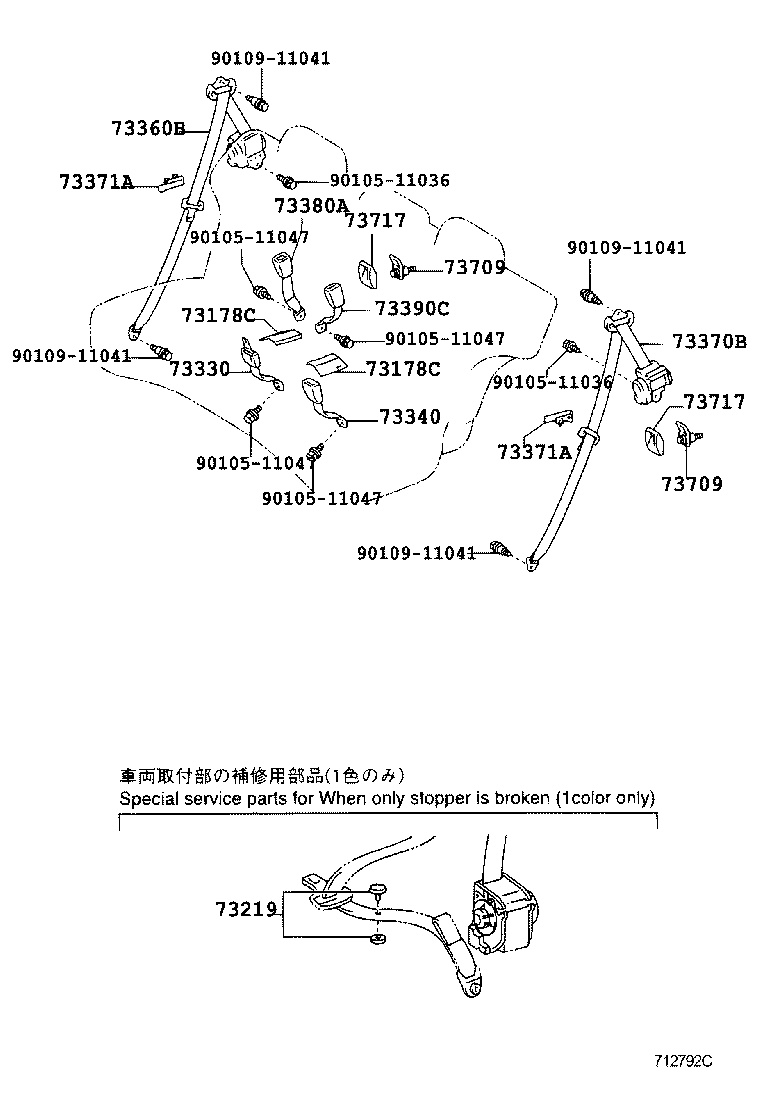

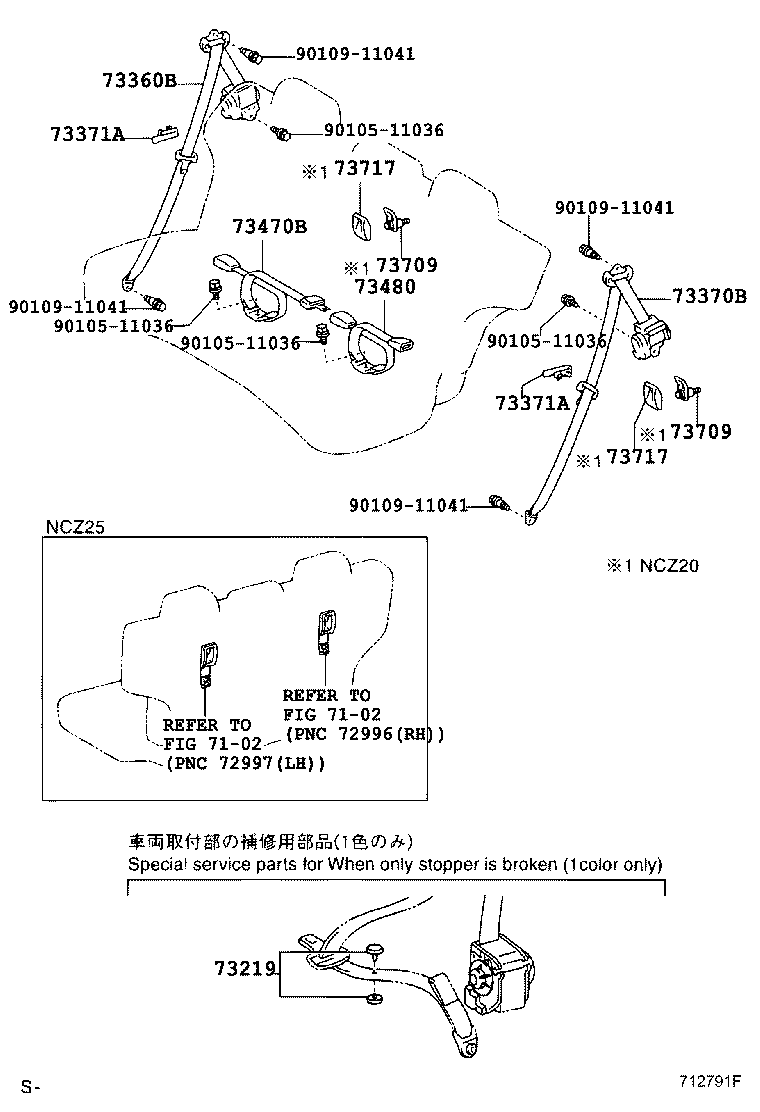

ILLUST NO. 2 OF 2(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NCZ2# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030B0 |
NCZ2# SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73360-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73360-46031B0 |
NCZ20 G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73360-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73360-46031B0 |
NCZ20 S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46032B0 |
NCZ20 G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46031E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73360-46032E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73360-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73360-46032B0 |
NCZ20 S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73370-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73370-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73370-46030B0 |
NCZ2# SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46031B0 |
NCZ20 G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73370-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73370-46031E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73370-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73370-46032E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73370-46031B0 |
NCZ20 S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46032B0 |
NCZ20 G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46032B0 |
NCZ20 S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050P6 |
NCZ2# MD.GRAY,TRIM1# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050P6 |
NCZ2# MD.GRAY,TRIM1# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-52201B1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52201E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73470-52201E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73470-52201B1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52201E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73470-52200B1 |
NCZ20 SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52201B1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52201E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73470-52201B1 |
NCZ20 SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52201E1 |
NCZ20 FAWN,TRIM4# |
1 | ||
| 73470-52200E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73470-52200E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73470-52200B1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52201B1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52200B1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52200E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73470-52200E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73470-52200B1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52200B1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73470-52200E1 |
NCZ20 FAWN,TRIM4# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-52160B2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73480-52160E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73480-52160B2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73480-52160B2 |
NCZ20 SHADOW GRAY,TRIM1# |
1 | ||
| 73480-52160B2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73480-52160E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73480-52160E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73480-52160E1 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73480-52160B2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73480-52160E1 |
NCZ20 FAWN,TRIM4# |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73708-46010 |
NCZ20 |
2 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73708-46010 |
NCZ20 |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-47010B2 |
NCZ20 MD.GRAY,TRIM1# |
2 | ||
| 73717-47010E1 |
NCZ20 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-47010B2 |
NCZ20 MD.GRAY,TRIM1# |
2 | ||
| 73717-47010E1 |
NCZ20 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11041 | ||||
| Linked diagrams | ||||
| 7102 | ||||
ILLUST NO. 2 OF 2(0304- )NCZ20
ｱﾘ(ﾘﾔ ﾀﾝﾌﾞﾙ ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰg |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰg |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰg |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰg |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰg |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰg |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰg |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73179-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,左側ｼｰﾄ |
1 | ||
| 73178-46010 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,右側ｼｰﾄ |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NCZ2# |
1 | ||
| 73330 - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73330-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340 - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73340-46010B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030B0 |
NCZ2# SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73360-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73360-46031B0 |
NCZ20 G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73360-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73360-46031B0 |
NCZ20 S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46032B0 |
NCZ20 G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73360-46031E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73360-46032E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73360-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73360-46032B0 |
NCZ20 S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73370-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73370-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73370-46030B0 |
NCZ2# SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46031B0 |
NCZ20 G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73370-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,FAWN,TRIM4# |
1 | ||
| 73370-46031E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73370-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,FAWN,TRIM4# |
1 | ||
| 73370-46032E0 |
NCZ2# FAWN,TRIM4# |
1 | ||
| 73370-46031B0 |
NCZ20 S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46032B0 |
NCZ20 G PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73370-46032B0 |
NCZ20 S PACKAGE,SHADOW GRAY,TRIM1# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050P6 |
NCZ2# MD.GRAY,TRIM1# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050P6 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,MD.GRAY,TRIM1# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73371-16050P6 |
NCZ2# MD.GRAY,TRIM1# |
2 | ||
| 73371-16050E2 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-46030B0 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 S PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 G PACKAGE&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ&後席ﾀﾝﾌﾞﾙｼｰﾄ,LT.GRAY,TRIM1# |
1 | ||
| 73380-46030A0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE&ﾌﾛﾝﾄｼｰﾄ−助手席回転&後席ﾀﾝﾌﾞﾙｼｰﾄ,IVORY,TRIM4# |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73708-46010 |
NCZ20 |
2 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73708-46010 |
NCZ20 |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-47010B2 |
NCZ20 MD.GRAY,TRIM1# |
2 | ||
| 73717-47010E1 |
NCZ20 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-47010B2 |
NCZ20 MD.GRAY,TRIM1# |
2 | ||
| 73717-47010E1 |
NCZ20 MD.NEUTRAL BONE,TRIM4# |
2 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11047 | ||||
| 90109-11041 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
