NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

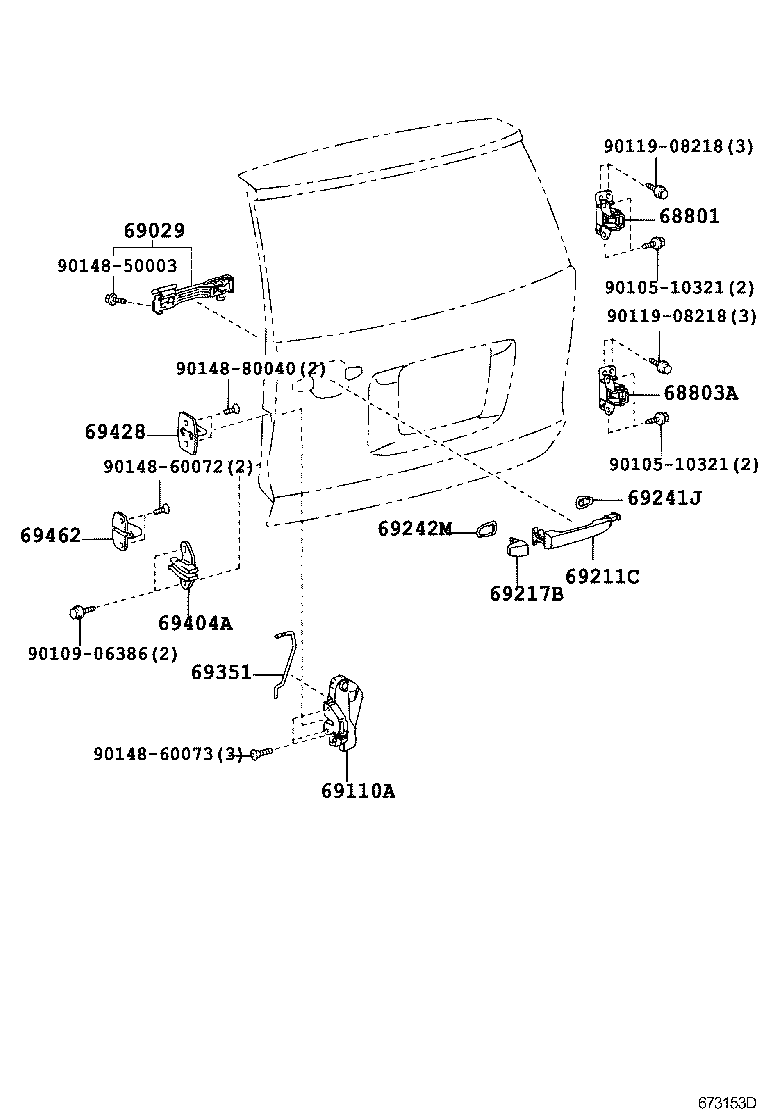

Click highlighted areas on diagram

diagram 68801 68803A 69029 69110A 69211C 69217B 69241J 69242M 69351 69404A 69428 69462 9010510321 9010510321 9010906386 9011908218 9011908218 9014850003 9014860072 9014860073 9014880040
Part # Description Qty Price
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-46040

NCZ2#

 1
68803A - HINGE SUB-ASSY, BACK DOOR, LOWER RH
68801-46040

NCZ2#

 1
69029 - FRAME SUB-ASSY, BACK DOOR OUTSIDE HANDLE
69029-60010

NCZ2#

 1
69110A - LOCK ASSY, BACK DOOR W/MOTOR
69110-46030

NCZ2#

 1
69110-46040

NCZ2#

 1
69211C - HANDLE, BACK DOOR OUTSIDE
69211-28070A0

NCZ2#

G PACKAGE,SUPER WHITE 2,040

 1
69211-28070B8

NCZ2#

GRAY,040 ,1D9 ,3P0 ,3Q9 ,594 ,6T4 ,8N8 ,8R2

 1
69211-28070B9

NCZ2#

S PACKAGE,SILVER ME.GR.,1D9

 1
69211-28070D4

NCZ2#

S PACKAGE,SUPER RED 5,3P0

 1
69211-28070B9

NCZ2#

C PACKAGE,SILVER ME.GR.,1D9

 1
69211-28070G4

NCZ2#

G PACKAGE,LT.GREEN M.M.,6T4

 1
69211-28070J9

NCZ2#

S PACKAGE,DK.BLUE MC.,8N8

 1
69211-28070D4

NCZ2#

C PACKAGE,SUPER RED 5,3P0

 1
69211-28070B9

NCZ2#

G PACKAGE,SILVER ME.GR.,1D9

 1
69211-28070F4

NCZ2#

S PACKAGE,CREAM PM.,594

 1
69211-28070A0

NCZ2#

S PACKAGE,SUPER WHITE 2,040

 1
69211-28070D4

NCZ2#

G PACKAGE,SUPER RED 5,3P0

 1
69211-28070A7

NCZ2#

C PACKAGE&NEO EDITION *(A),WHITE PEARL CS.,073

 1
69211-28070A0

NCZ2#

C PACKAGE,SUPER WHITE 2,040

 1
69211-28070F4

NCZ2#

C PACKAGE,CREAM PM.,594

 1
69211-28070F4

NCZ2#

G PACKAGE,CREAM PM.,594

 1
69211-28070J9

NCZ2#

G PACKAGE,DK.BLUE MC.,8N8

 1
69211-28070G4

NCZ2#

C PACKAGE,LT.GREEN M.M.,6T4

 1
69211-28070L1

NCZ2#

PALE ORANGE MICA METALLIC,4S3

 1
69211-28070J9

NCZ2#

DK.BLUE MC.,8N8

 1
69211-28070A3

NCZ2#

WHITE PEARL CS.,070

 1
69211-28070R3

NCZ2#

S PACKAGE,LT.BLUE M.M.,8R2

 1
69211-28070R3

NCZ2#

G PACKAGE,LT.BLUE M.M.,8R2

 1
69211-28070R3

NCZ2#

C PACKAGE,LT.BLUE M.M.,8R2

 1
69211-28070J9

NCZ2#

C PACKAGE,DK.BLUE MC.,8N8

 1
69211-28070C0

NCZ2#

BLACK MC.,209

 1
69211-28070R3

NCZ2#

LT.BLUE M.M.,8R2

 1
69211-28070P2

NCZ2#

SILVER ME.,1F7

 1
69211-28070G4

NCZ2#

LT.GREEN M.M.,6T4

 1
69211-28070G4

NCZ2#

S PACKAGE,LT.GREEN M.M.,6T4

 1
69211-28070D4

NCZ2#

SUPER RED 5,3P0

 1
69217B - COVER, BACK DOOR OUTSIDE HANDLE
69217-60020A2

NCZ2#

C PACKAGE,SUPER WHITE 2,040

 1
69217-60020A2

NCZ2#

G PACKAGE,SUPER WHITE 2,040

 1
69217-60020A6

NCZ2#

C PACKAGE&NEO EDITION *(A),WHITE PEARL CS.,073

 1
69217-60020B8

NCZ2#

C PACKAGE,SILVER ME.GR.,1D9

 1
69217-60020F2

NCZ2#

G PACKAGE,CREAM PM.,594

 1
69217-60020D2

NCZ2#

G PACKAGE,SUPER RED 5,3P0

 1
69217-60020B8

NCZ2#

S PACKAGE,SILVER ME.GR.,1D9

 1
69217-60020D2

NCZ2#

C PACKAGE,SUPER RED 5,3P0

 1
69217-60020D2

NCZ2#

S PACKAGE,SUPER RED 5,3P0

 1
69217-60020G4

NCZ2#

S PACKAGE,LT.GREEN M.M.,6T4

 1
69217-60020J8

NCZ2#

G PACKAGE,DK.BLUE MC.,8N8

 1
69217-60020A1

NCZ2#

WHITE PEARL CS.,070

 1
69217-60020J8

NCZ2#

S PACKAGE,DK.BLUE MC.,8N8

 1
69217-60020A2

NCZ2#

S PACKAGE,SUPER WHITE 2,040

 1
69217-60020B7

NCZ2#

GRAY,040 ,1D9 ,3P0 ,3Q9 ,594 ,6T4 ,8N8 ,8R2

 1
69217-60020P0

NCZ2#

SILVER ME.,1F7

 1
69217-60020B8

NCZ2#

G PACKAGE,SILVER ME.GR.,1D9

 1
69217-60020F2

NCZ2#

C PACKAGE,CREAM PM.,594

 1
69217-60020R0

NCZ2#

LT.BLUE M.M.,8R2

 1
69217-60020R0

NCZ2#

G PACKAGE,LT.BLUE M.M.,8R2

 1
69217-60020F2

NCZ2#

S PACKAGE,CREAM PM.,594

 1
69217-60020R0

NCZ2#

C PACKAGE,LT.BLUE M.M.,8R2

 1
69217-60020J8

NCZ2#

DK.BLUE MC.,8N8

 1
69217-60020R0

NCZ2#

S PACKAGE,LT.BLUE M.M.,8R2

 1
69217-60020J8

NCZ2#

C PACKAGE,DK.BLUE MC.,8N8

 1
69217-60020L2

NCZ2#

PALE ORANGE MICA METALLIC,4S3

 1
69217-60020G4

NCZ2#

G PACKAGE,LT.GREEN M.M.,6T4

 1
69217-60020G4

NCZ2#

LT.GREEN M.M.,6T4

 1
69217-60020G4

NCZ2#

C PACKAGE,LT.GREEN M.M.,6T4

 1
69217-60020D2

NCZ2#

SUPER RED 5,3P0

 1
69217-60020C1

NCZ2#

BLACK MC.,209

 1
69241J - PAD, BACK DOOR OUTSIDE HANDLE, FRONT
69241-28060

NCZ2#

 1
69242M - PAD, BACK DOOR OUTSIDE HANDLE, REAR
69242-28020

NCZ2#

 1
69351 - ROD, BACK DOOR LOCK CONTROL, UPPER
69378-46010

NCZ2#

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-46010

NCZ2#

 1
69403-46011

NCZ2#

 1
69428 - PLATE, BACK DOOR LOCK BASE
69410-60020

NCZ2#

 1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
69461-60010

NCZ2#

 1
Common parts
90105-10321
90109-06386
90119-08218
90148-50003
90148-60072
90148-60073
90148-80040
