NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

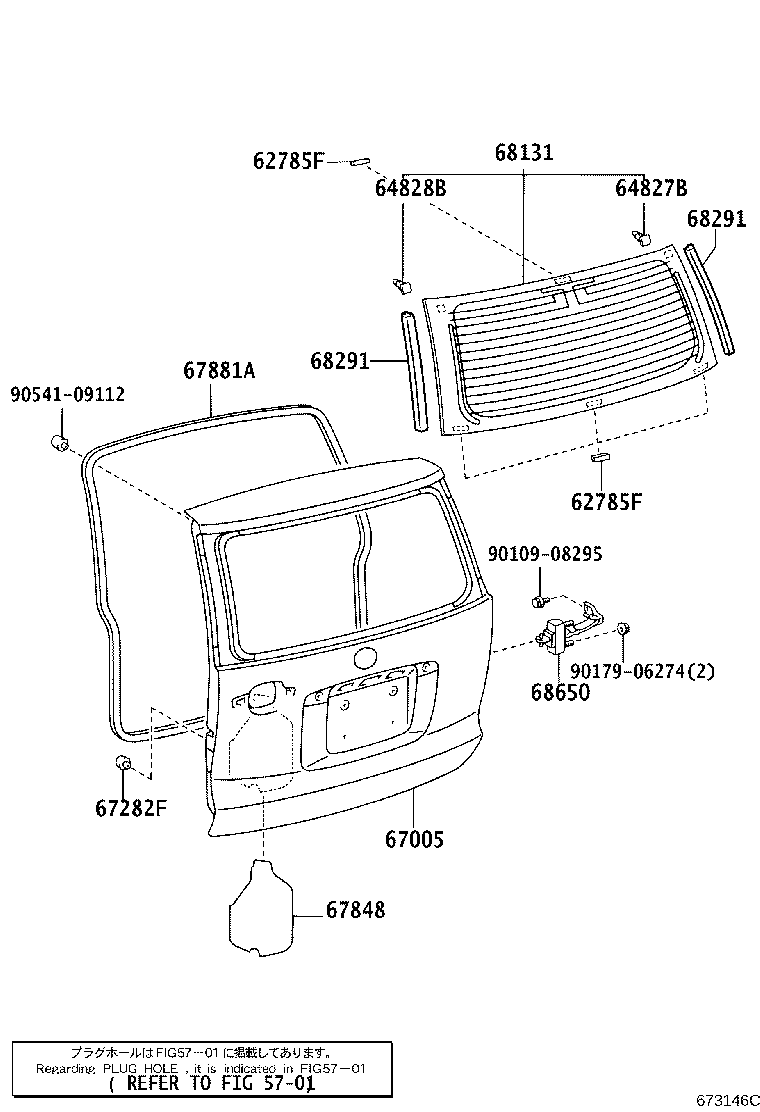

ILLUST NO. 1 OF 2(0304- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 5701 62785F 62785F 64827B 64828B 67005 67282F 67848 67881A 68131 68291 68291 68650 9010908295 9017906274 9054109112
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-60030

NCZ2#

 4
62785F - SPACER, BACK DOOR GLASS
62785-60030

NCZ2#

 4
64827B - CLIP, BACK WINDOW GLASS, RH
64827-46010

NCZ2#

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-46010

NCZ2#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-46050

NCZ2#

 1
67005-46060

NCZ2#

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
67005-46080

NCZ2#

ﾘﾔ ｽﾎﾟｲﾗｰ−有り(ｶﾗｰﾄﾞ)&ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
67005-46081

NCZ2#

ﾘﾔ ｽﾎﾟｲﾗｰ−有り(ｶﾗｰﾄﾞ)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き

 1
67005-46061

NCZ2#

ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き

 1
67005-46051

NCZ2#

 1
67005-46071

NCZ2#

S PACKAGE

 1
67005-46061

NCZ2#

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
67005-46070

NCZ2#

ﾘﾔ ｽﾎﾟｲﾗｰ−有り(ｶﾗｰﾄﾞ)

 1
67005-46081

NCZ2#

ﾘﾔ ｽﾎﾟｲﾗｰ−有り(ｶﾗｰﾄﾞ)&ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
67005-46071

NCZ2#

ﾘﾔ ｽﾎﾟｲﾗｰ−有り(ｶﾗｰﾄﾞ)

 1
67282F - STOPPER, BACK DOOR, LWR LH
67282-46010

NCZ2#

 1
67848 - COVER, BACK DOOR SERVICE HOLE, LH
67848-46010

NCZ2#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-46020

NCZ2#

 1
68131 - GLASS, BACK DOOR
68105-46120

NCZ2#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68105-46110

NCZ2#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ,ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞQｰｼｮﾝ付ﾜｲﾄﾞﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
68105-46130

NCZ2#

*TT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ,ｻｲﾄﾞｶﾞﾗｽ−ﾌﾛﾝﾄ−ｸﾞﾘｰﾝUVｶｯﾄ,潟п|ﾌﾟﾗｲﾊﾞｼｰ&ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ付ﾜｲﾄﾞ}ﾙﾁAVｽﾃｰｼｮﾝ

 1
68105-46140

NCZ2#

*TT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ,ｻｲﾄﾞｶﾞﾗｽ−ﾌﾛﾝﾄ−ｸﾞﾘｰﾝUVｶｯﾄ,潟п|ﾌﾟﾗｲﾊﾞｼｰ

 1
68105-46130

NCZ2#

*TT,厚さ=3.1,ｸｰﾙｸﾞﾘｰﾝ,ｻｲﾄﾞｶﾞﾗｽ−ﾌﾛﾝﾄ−ｸﾞﾘｰﾝUVｶｯﾄ,潟п|ﾌﾟﾗｲﾊﾞｼｰ&ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き

 1
68105-46110

NCZ2#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ,ｵｰﾃﾞｨｵ−ﾅﾋﾞ付き

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
75573-46030

NCZ2#

 2
68291 - WEATHERSTRIP, BACK DOOR GLASS
75573-46030

NCZ2#

 2
68650 - CHECK ASSY, BACK DOOR
68650-46020

NCZ2#

 1
68650-46021

NCZ2#

 1
Common parts
90109-08295
90179-06274
90541-09112
Linked diagrams
5701

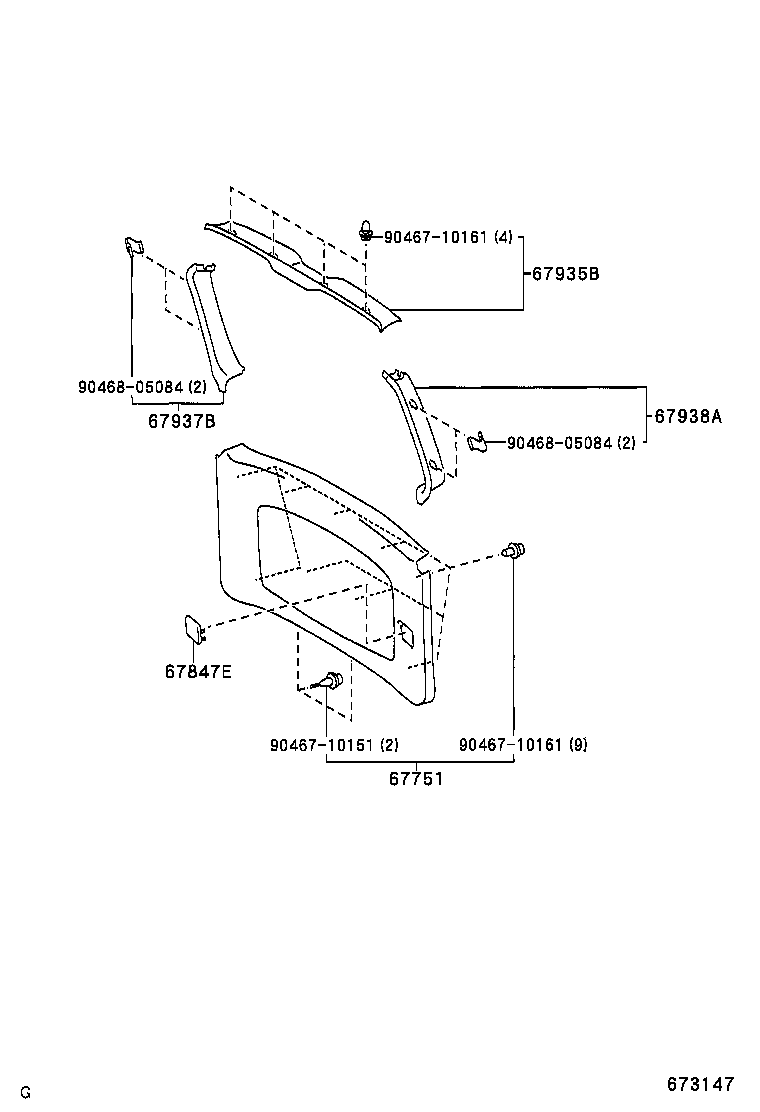

ILLUST NO. 2 OF 2(0304- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 67751 67847E 67935B 67937B 67938A 9046710151 9046710161 9046710161 9046805084 9046805084
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-46020E0

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
67751-46020B0

NCZ2#

MD.GRAY,TRIM1#

 1
67847E - COVER, BACK DOOR SERVICE HOLE, RH
67847-46020B0

NCZ2#

MD.GRAY,TRIM1#

 1
67847-46020E0

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
67935B - GARNISH, BACK DOOR
67935-46030A0

NCZ2#

IVORY,TRIM4#

 1
67935-46030B0

NCZ2#

LT.GRAY,TRIM1#

 1
67935-46020B0

NCZ2#

LT.GRAY,TRIM1#

 1
67935-46020A0

NCZ2#

IVORY,TRIM4#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-46030A0

NCZ2#

IVORY,TRIM4#

 1
67937-46030B0

NCZ2#

LT.GRAY,TRIM1#

 1
67938A - GARNISH, BACK DOOR SIDE, LH
67938-46020A0

NCZ2#

IVORY,TRIM4#

 1
67938-46020B0

NCZ2#

LT.GRAY,TRIM1#

 1
Common parts
90467-10151
90467-10161
90468-05084
