NCZ20-AHPXK (2003)
Toyota Raum

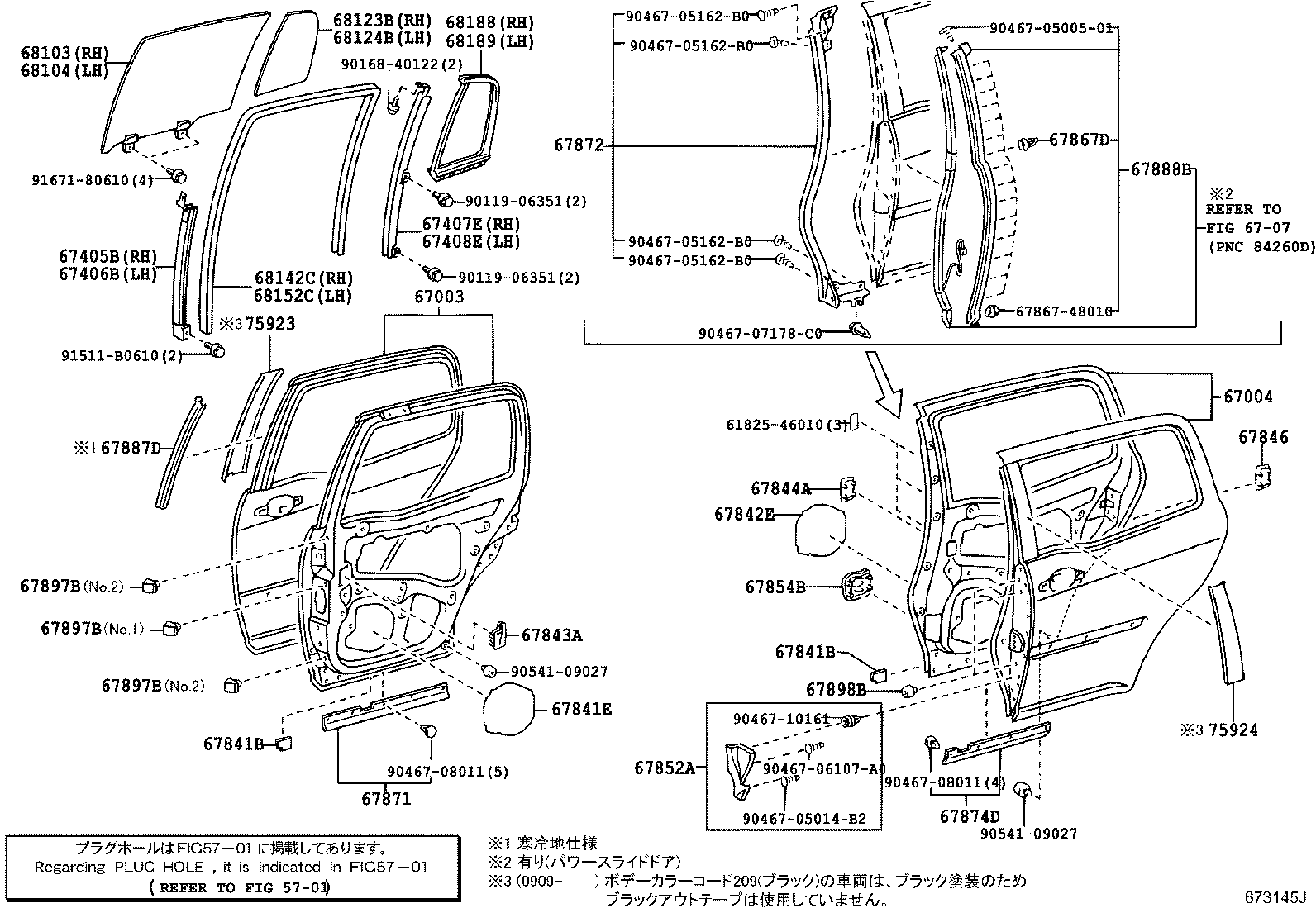

ILLUST NO. 1 OF 2(0304- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67003-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67003-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67003-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67003-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67003-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67003-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67003-46020 |
NCZ2# |
1 | ||
| 67003-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67003-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67003-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-46030 |
NCZ2# |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-46020 |
NCZ2# |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-46020 |
NCZ2# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-46020 |
NCZ2# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-46020 |
NCZ2# |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67842-46030 |
NCZ2# |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67842-46030 |
NCZ2# |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-46020 |
NCZ2# |
1 | ||
| 67841-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67841-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67841-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67841-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67841-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67841-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67841-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-46020 |
NCZ2# |
1 | ||
| 67842-46020 |
NCZ2# C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67842-46020 |
NCZ2# G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67842-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67842-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67842-46020 |
NCZ2# S PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67842-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67842-46020 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67843A - COVER, REAR DOOR SERVICE HOLE, NO.2 | ||||
| 67843-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67843-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67843-46010 |
NCZ2# |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67844-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67844-46010 |
NCZ2# |
1 | ||
| 67846 - SEAL, REAR DOOR SERVICE HOLE | ||||
| 67846-46010 |
NCZ2# |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-46010 |
NCZ2# |
1 | ||
| 67854B - COVER, SLIDE DOOR SERVICE HOLE, NO.3 | ||||
| 67854-46010 |
NCZ2# |
1 | ||
| 67854-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67854-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCZ2# |
15 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-46020 |
NCZ2# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-46020 |
NCZ2# |
1 | ||
| 67874D - WEATHERSTRIP, ACCESS PANEL, REAR LH | ||||
| 67874-46010 |
NCZ2# |
1 | ||
| 67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-46020 |
NCZ2# 寒冷地仕様 |
1 | ||
| 67887-46020 |
NCZ2# 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
1 | ||
| 67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH | ||||
| 67888-46020 |
NCZ2# |
1 | ||
| 67897B - CUSHION, REAR DOOR, RH | ||||
| 67897-46010 |
NCZ2# NO.2 |
2 | ||
| 67897-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.1 |
1 | ||
| 67897-46020 |
NCZ2# NO.1 |
1 | ||
| 67897-46030 |
NCZ2# NO.2 |
2 | ||
| 67897-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.2 |
2 | ||
| 67897-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.2 |
2 | ||
| 67897-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.1 |
1 | ||
| 67897B - CUSHION, REAR DOOR, RH | ||||
| 67897-46020 |
NCZ2# NO.1 |
1 | ||
| 67897-46010 |
NCZ2# NO.2 |
2 | ||
| 67897-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.1 |
1 | ||
| 67897-46030 |
NCZ2# NO.2 |
2 | ||
| 67897-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.2 |
2 | ||
| 67897-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.2 |
2 | ||
| 67897-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.1 |
1 | ||
| 67897B - CUSHION, REAR DOOR, RH | ||||
| 67897-46020 |
NCZ2# NO.1 |
1 | ||
| 67897-46010 |
NCZ2# NO.2 |
2 | ||
| 67897-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.1 |
1 | ||
| 67897-46030 |
NCZ2# NO.2 |
2 | ||
| 67897-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.2 |
2 | ||
| 67897-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.2 |
2 | ||
| 67897-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),NO.1 |
1 | ||
| 67898B - CUSHION, REAR DOOR, LH | ||||
| 67898-46010 |
NCZ2# |
3 | ||
| 67898-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
3 | ||
| 67898-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側) |
3 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-46040 |
NCZ2# *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68103-46050 |
NCZ2# *TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｻｲﾄﾞｶﾞﾗｽ−ﾌﾛﾝﾄ−ｸﾞﾘｰﾝUVｶｯﾄ,ﾘп|ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-46040 |
NCZ2# *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68104-46050 |
NCZ2# *TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｻｲﾄﾞｶﾞﾗｽ−ﾌﾛﾝﾄ−ｸﾞﾘｰﾝUVｶｯﾄ,ﾘп|ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-46050 |
NCZ2# *TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｻｲﾄﾞｶﾞﾗｽ−ﾌﾛﾝﾄ−ｸﾞﾘｰﾝUVｶｯﾄ,ﾘп|ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68123-46040 |
NCZ2# *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-46050 |
NCZ2# *TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｻｲﾄﾞｶﾞﾗｽ−ﾌﾛﾝﾄ−ｸﾞﾘｰﾝUVｶｯﾄ,ﾘп|ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68124-46040 |
NCZ2# *UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-46020 |
NCZ2# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-46020 |
NCZ2# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-46020 |
NCZ2# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-46020 |
NCZ2# |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-46010 |
NCZ2# |
1 | ||
| 75923-46010 |
NCZ2# |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-46010 |
NCZ2# |
1 | ||
| 75924-46010 |
NCZ2# |
1 | ||
| Common parts | ||||
| 61825-46010 | ||||
| 67867-48010 | ||||
| 90119-06351 | ||||
| 90168-40122 | ||||
| 90467-0500501 | ||||
| 90467-05014B2 | ||||
| 90467-05162B0 | ||||
| 90467-06107A0 | ||||
| 90467-07178C0 | ||||
| 90467-08011 | ||||
| 90467-10161 | ||||
| 90541-09027 | ||||
| 91511-B0610 | ||||
| 91671-80610 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6707 | ||||
ILLUST NO. 2 OF 2(0304- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-46121B1 |
NCZ2# C PACKAGE&NEO EDITION *(A),GRAY,TRIM1# |
1 | ||
| 67630-46122B2 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 67630-46120B1 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 67630-46130B0 |
NCZ2# S PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 67630-46122E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67630-46140E0 |
NCZ2# G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67630-46121E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67630-46121B2 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 67630-46120E1 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67630-46141E2 |
NCZ2# G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
NCZ2# |
12 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
NCZ2# |
12 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
NCZ2# |
12 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10167 |
NCZ2# |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-46121B2 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 67640-46121E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67640-46130B0 |
NCZ2# S PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 67640-46122B2 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 67640-46120B1 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 67640-46120E1 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67640-46122E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67640-46121B1 |
NCZ2# C PACKAGE&NEO EDITION *(A),GRAY,TRIM1# |
1 | ||
| 67640-46141E2 |
NCZ2# G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67640-46140E0 |
NCZ2# G PACKAGE,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 67676C - GARNISH, REAR DOOR FRAME, NO.2 LH | ||||
| 67676-46010B0 |
NCZ2# LT.GRAY,TRIM1# |
1 | ||
| 67676-46010A0 |
NCZ2# IVORY,TRIM4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-46020 |
NCZ2# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-46020 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90164-60028 | ||||
| 90189-06018 | ||||
| 90467-10161 | ||||
