NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

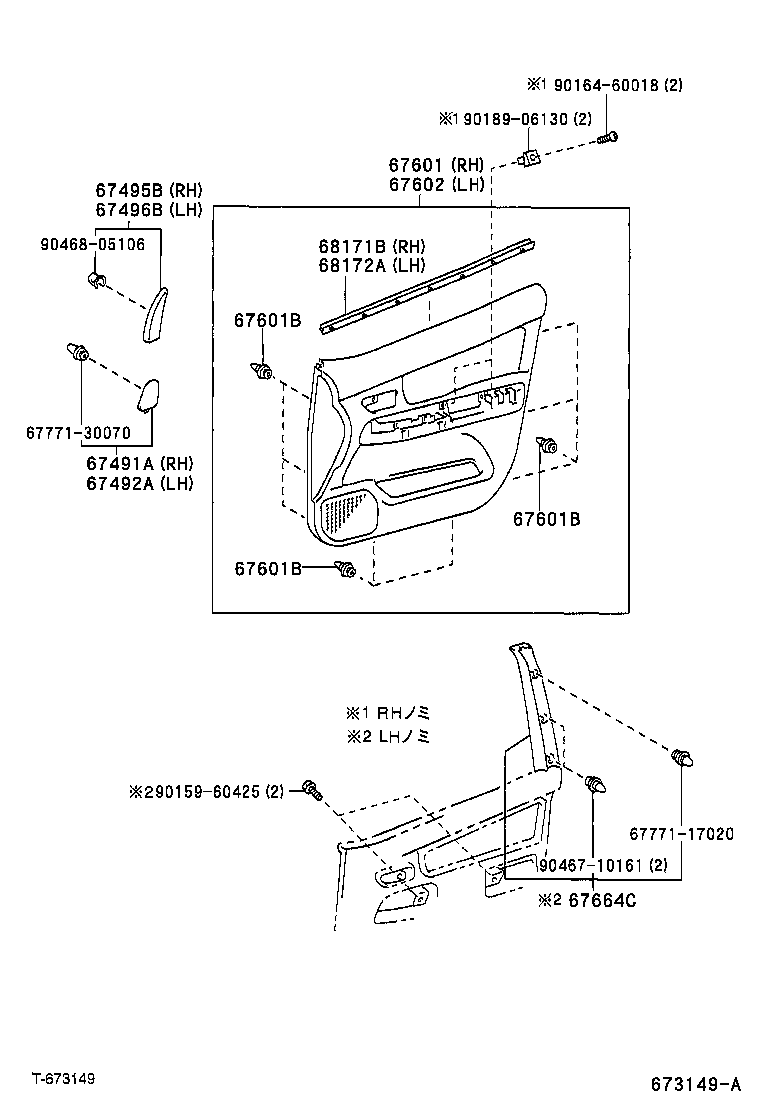

ILLUST NO. 2 OF 3(0304- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 67491A 67492A 67495B 67496B 67601 67601B 67601B 67601B 67602 67664C 6777117020 6777130070 68171B 68172A 9015960425 9016460018 9018906130 9046710161 9046805106
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-46020C0

NCZ2#

BLACK,TRIM1#,4#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-46020C0

NCZ2#

BLACK,TRIM1#,4#

 1
67495B - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-46010C0

NCZ2#

BLACK,TRIM1#,4#

 1
67496B - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-46010C0

NCZ2#

BLACK,TRIM1#,4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-46121B1

NCZ2#

C PACKAGE&NEO EDITION *(A),GRAY,TRIM1#

 1
67610-46130B0

NCZ2#

S PACKAGE,MD.GRAY,TRIM1#

 1
67610-46121B2

NCZ2#

MD.GRAY,TRIM1#

 1
67610-46141E2

NCZ2#

G PACKAGE,MD.NEUTRAL BONE,TRIM4#

 1
67610-46122E2

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
67610-46120B1

NCZ2#

MD.GRAY,TRIM1#

 1
67610-46140E0

NCZ2#

G PACKAGE,MD.NEUTRAL BONE,TRIM4#

 1
67610-46122B2

NCZ2#

MD.GRAY,TRIM1#

 1
67610-46120E1

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
67610-46121E2

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161

NCZ2#

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161

NCZ2#

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161

NCZ2#

 16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-46121B1

NCZ2#

C PACKAGE&NEO EDITION *(A),GRAY,TRIM1#

 1
67620-46121B2

NCZ2#

MD.GRAY,TRIM1#

 1
67620-46120E1

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
67620-46130B0

NCZ2#

S PACKAGE,MD.GRAY,TRIM1#

 1
67620-46140E0

NCZ2#

G PACKAGE,MD.NEUTRAL BONE,TRIM4#

 1
67620-46121E2

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
67620-46122B2

NCZ2#

MD.GRAY,TRIM1#

 1
67620-46120B1

NCZ2#

MD.GRAY,TRIM1#

 1
67620-46122E2

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
67620-46141E2

NCZ2#

G PACKAGE,MD.NEUTRAL BONE,TRIM4#

 1
67664C - GARNISH, DOOR FRAME, LH
67664-46010B0

NCZ2#

LT.GRAY,TRIM1#

 1
67664-46010A0

NCZ2#

IVORY,TRIM4#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-46010

NCZ2#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-46020

NCZ2#

 1
Common parts
67771-17020
67771-30070
90159-60425
90164-60018
90189-06130
90467-10161
90468-05106

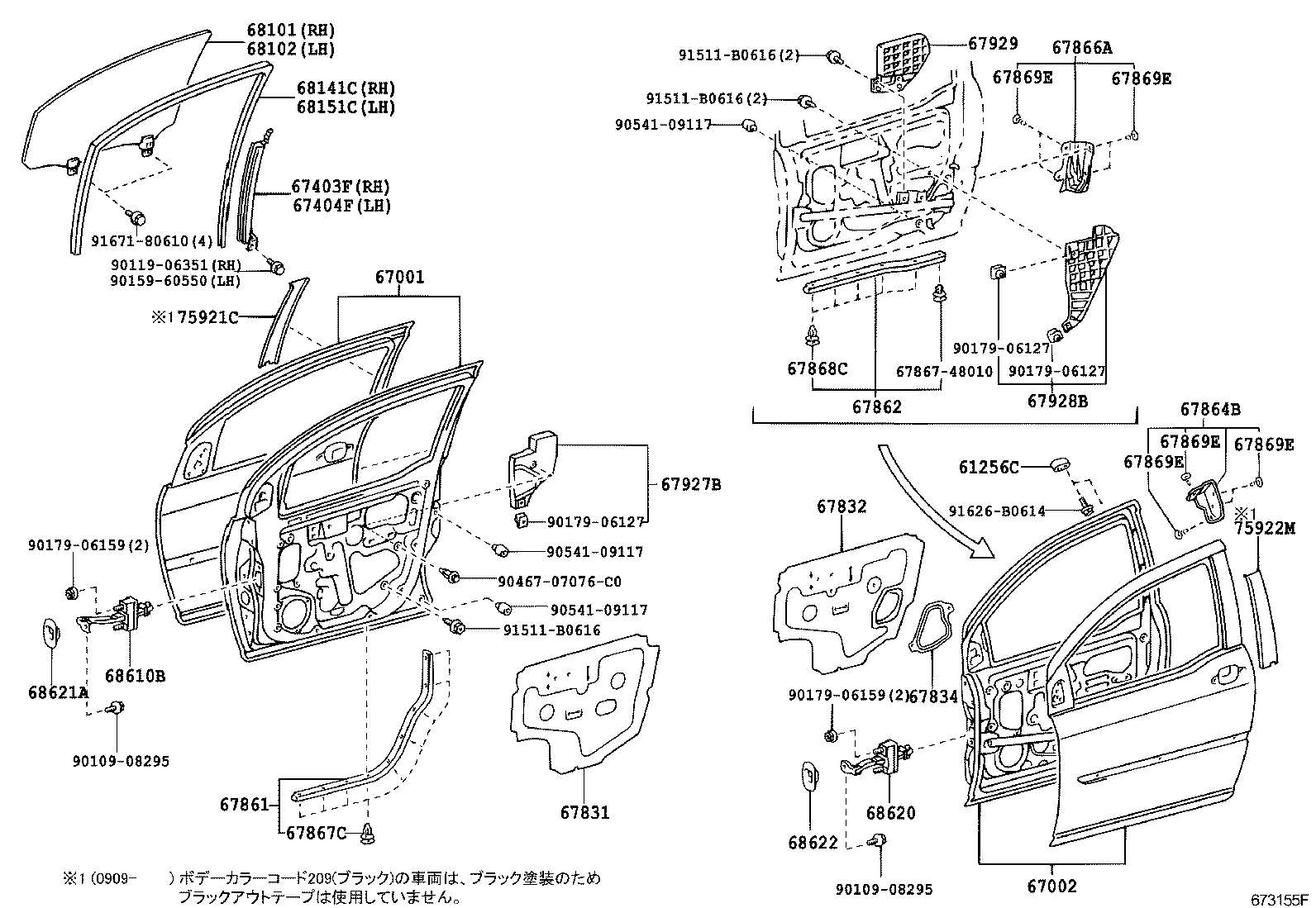

ILLUST NO. 1 OF 3(0304- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 61256C 67001 67002 67403F 67404F 67831 67832 67834 67861 67862 67864B 67866A 6786748010 67867C 67868C 67869E 67869E 67869E 67869E 67869E 67927B 67928B 67929 68101 68102 68141C 68151C 68610B 68620 68621A 68622 75921C 75922M 9010908295 9010908295 9011906351 9015960550 9017906127 9017906127 9017906127 9017906159 9017906159 9046707076C0 9054109117 9054109117 9054109117 91511B0616 91511B0616 91511B0616 91626B0614 9167180610
Part # Description Qty Price
61256C - PLATE, ROOF SIDE RAIL, OUTER LH
61256-46010

NCZ2#

 1
61256-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
61256-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-46020

NCZ2#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-46020

NCZ2#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-46020

NCZ2#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-46020

NCZ2#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-46020

NCZ2#

 1
67831-46020

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)

 1
67831-46021

NCZ2#

 1
67831-46021

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-46021

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)

 1
67832-46020

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)

 1
67832-46020

NCZ2#

 1
67832-46021

NCZ2#

 1
67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67834-46010

NCZ2#

 1
67834-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
67834-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-46020

NCZ2#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-46020

NCZ2#

 1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-46010

NCZ2#

 1
67866A - WEATHERSTRIP, FRONT DOOR, NO.3 LH
67866-46010

NCZ2#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

NCZ2#

 10
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

NCZ2#

 5
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-24010

NCZ2#

 8
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-24010

NCZ2#

 8
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-24010

NCZ2#

 8
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-24010

NCZ2#

 8
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-24010

NCZ2#

 8
67927B - CUSHION, SEPARATION DOOR STIFFENER, NO.1
67927-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
67927-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
67927-46010

NCZ2#

 1
67928B - CUSHION, SEPARATION DOOR STIFFENER, NO.2
67928-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
67928-46010

NCZ2#

 1
67928-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
67929 - CUSHION, SEPARATION DOOR STIFFENER, NO.3
67929-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&C PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
67929-46010

NCZ2#

 1
67929-46010

NCZ2#

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-46040

NCZ2#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68101-46050

NCZ2#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ,ｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝUVｶｯﾄ

 1
68101-46050

NCZ2#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ,ｻｲﾄﾞｶﾞﾗｽ−ﾌﾛﾝﾄ−ｸﾞﾘｰﾝUVｶｯﾄ,潟п|ﾌﾟﾗｲﾊﾞｼｰ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-46050

NCZ2#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ,ｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝUVｶｯﾄ

 1
68102-46040

NCZ2#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68102-46050

NCZ2#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ,ｻｲﾄﾞｶﾞﾗｽ−ﾌﾛﾝﾄ−ｸﾞﾘｰﾝUVｶｯﾄ,潟п|ﾌﾟﾗｲﾊﾞｼｰ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-46020

NCZ2#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-46020

NCZ2#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-46021

NCZ2#

 1
68610-46020

NCZ2#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-46021

NCZ2#

 1
68620-46020

NCZ2#

 1
68621A - COVER, FRONT DOOR CHECK, RH
68621-46020

NCZ2#

 1
68622 - COVER, FRONT DOOR CHECK, LH
68622-46010

NCZ2#

 1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-46010

NCZ2#

 1
75921-46010

NCZ2#

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-46010

NCZ2#

 1
75922-46010

NCZ2#

 1
Common parts
67867-48010
90109-08295
90119-06351
90159-60550
90179-06127
90179-06159
90467-07076C0
90541-09117
91511-B0616
91626-B0614
91671-80610

ILLUST NO. 3 OF 3(0304- )

Click highlighted areas on diagram

ﾄﾘﾑｺｰﾄﾞ

diagram
Part # Description Qty Price
