NCZ20-AHPXK (2003)
Toyota Raum
Production
Apr 2003
-
Apr 2011
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0304- )

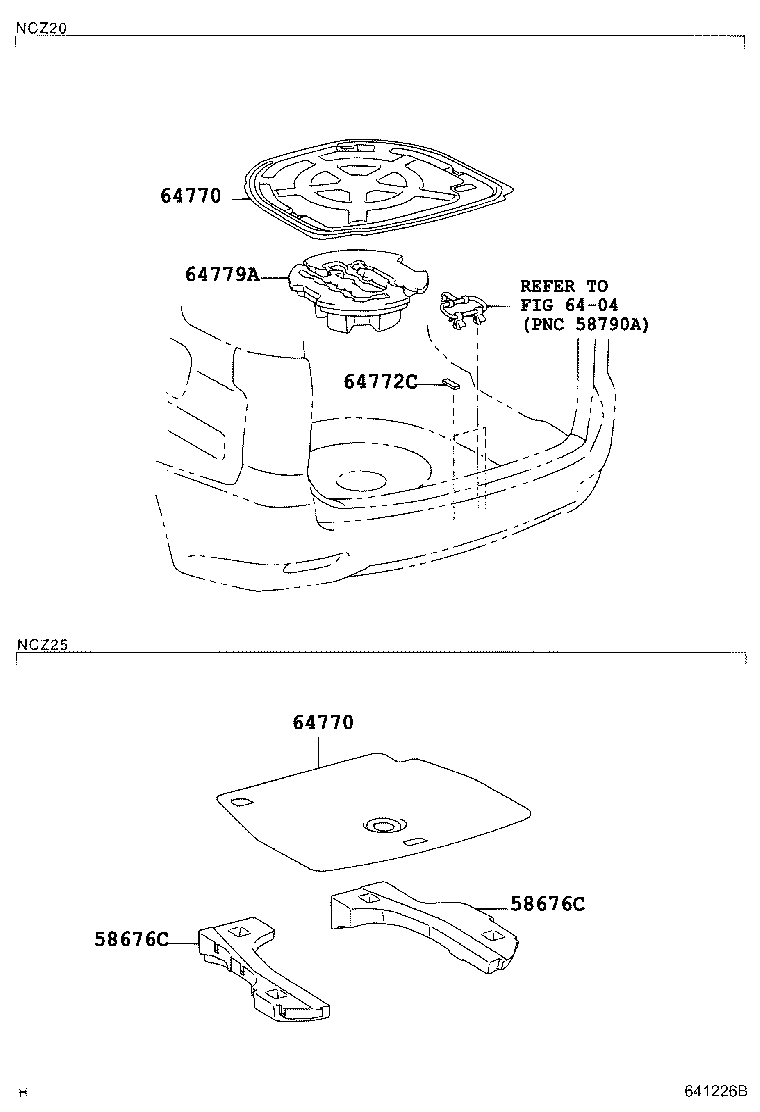

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-46050 |
NCZ20 |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-46050 |
NCZ20 |
1 | ||
| 64772C - PAD, SPARE WHEEL COVER | ||||
| 64772-16100 |
NCZ20 |
2 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-46010 |
NCZ20 |
1 | ||
| Linked diagrams | ||||
| 6404 | ||||
