NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

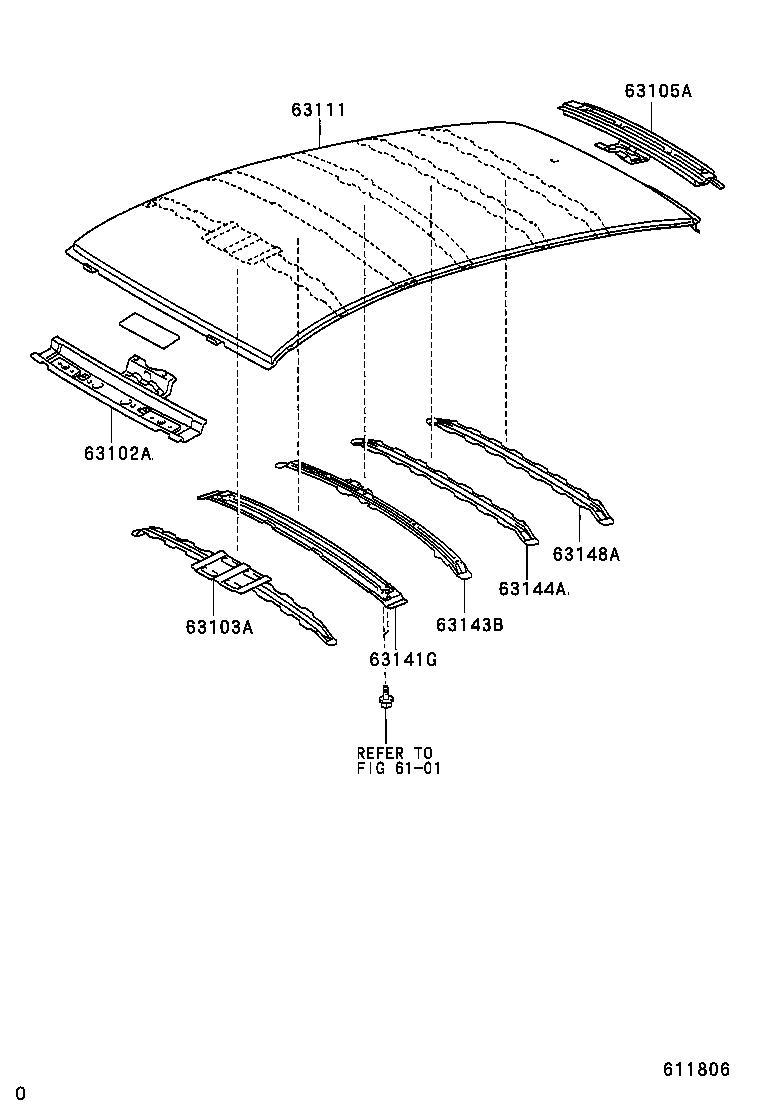

Click highlighted areas on diagram

diagram 6101 63102A 63103A 63105A 63111 63141G 63143B 63144A 63148A
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-46020

NCZ2#

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-46020

NCZ2#

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-46020

NCZ2#

 1
63111 - PANEL, ROOF
63111-46050

NCZ2#

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-46020

NCZ2#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63104-46010

NCZ2#

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-46020

NCZ2#

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-46010

NCZ2#

 1
Linked diagrams
6101
