NCZ20-AHPXK (2003)
Toyota Raum
Production
Apr 2003
-
Apr 2011
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

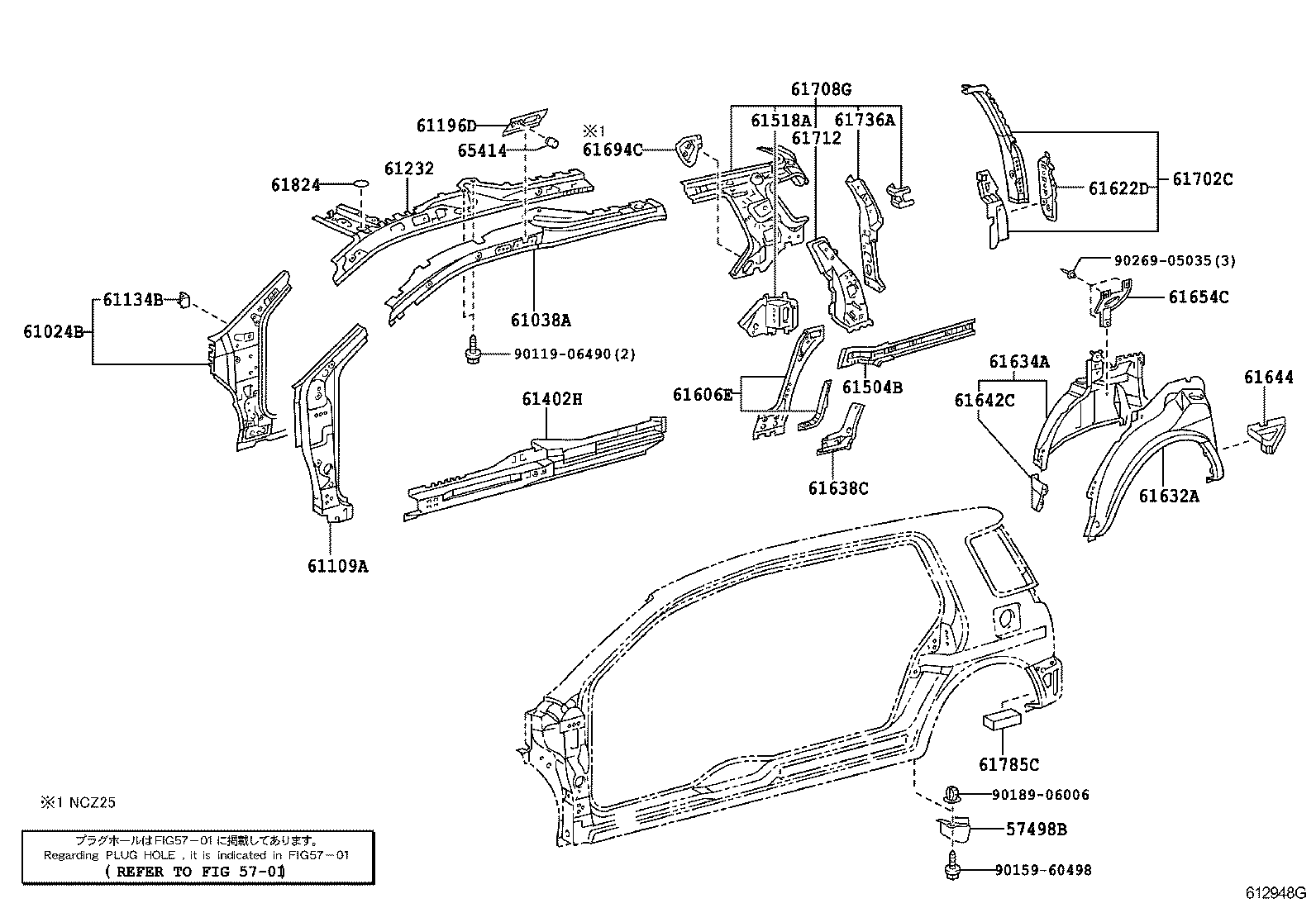

ILLUST NO. 2 OF 2(0304- )
Click highlighted areas on diagram
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57498B - SHIELD, REAR FLOOR HOUSING, LH | ||||
| 57497-46010 |
NCZ2# 右側 |
1 | ||
| 57498-46010 |
NCZ2# 左側 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-46020 |
NCZ2# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-46020 |
NCZ2# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-46020 |
NCZ2# |
1 | ||
| 61134B - BRACKET, FRONT BODY PILLAR OUTER, LH | ||||
| 61133-20140 |
NCZ2# |
1 | ||
| 61196D - COVER, FRONT PILLAR END, LH | ||||
| 61196-46010 |
NCZ2# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61308-46020 |
NCZ2# |
1 | ||
| 61402H - REINFORCEMENT SUB-ASSY, ROCKER PANEL, LH | ||||
| 61402-46020 |
NCZ2# |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-46030 |
NCZ2# |
1 | ||
| 61518A - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61504-46020 |
NCZ2# |
1 | ||
| 61606E - PANEL, QUARTER, LH | ||||
| 61606-46020 |
NCZ2# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-46020 |
NCZ2# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-46020 |
NCZ2# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-46030 |
NCZ20 |
1 | ||
| 61638C - BRACE, QUARTER WHEEL HOUSE, NO.2 LH | ||||
| 61638-46010 |
NCZ2# |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-46010 |
NCZ20 |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61644-46010 |
NCZ2# |
1 | ||
| 61654C - BRACKET, DECK SIDE TRIM, LH | ||||
| 61654-46010 |
NCZ2# |
1 | ||
| 61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61702-46020 |
NCZ2# |
1 | ||
| 61708G - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH | ||||
| 61708-46020 |
NCZ2# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-46020 |
NCZ2# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-46020 |
NCZ2# |
1 | ||
| 61785C - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 61785-46020 |
NCZ2# |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
NCZ2# |
2 | ||
| 61825-52030 |
NCZ2# |
2 | ||
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-46010 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90119-06490 | ||||
| 90159-60498 | ||||
| 90189-06006 | ||||
| 90269-05035 | ||||
| Linked diagrams | ||||
| 5701 | ||||

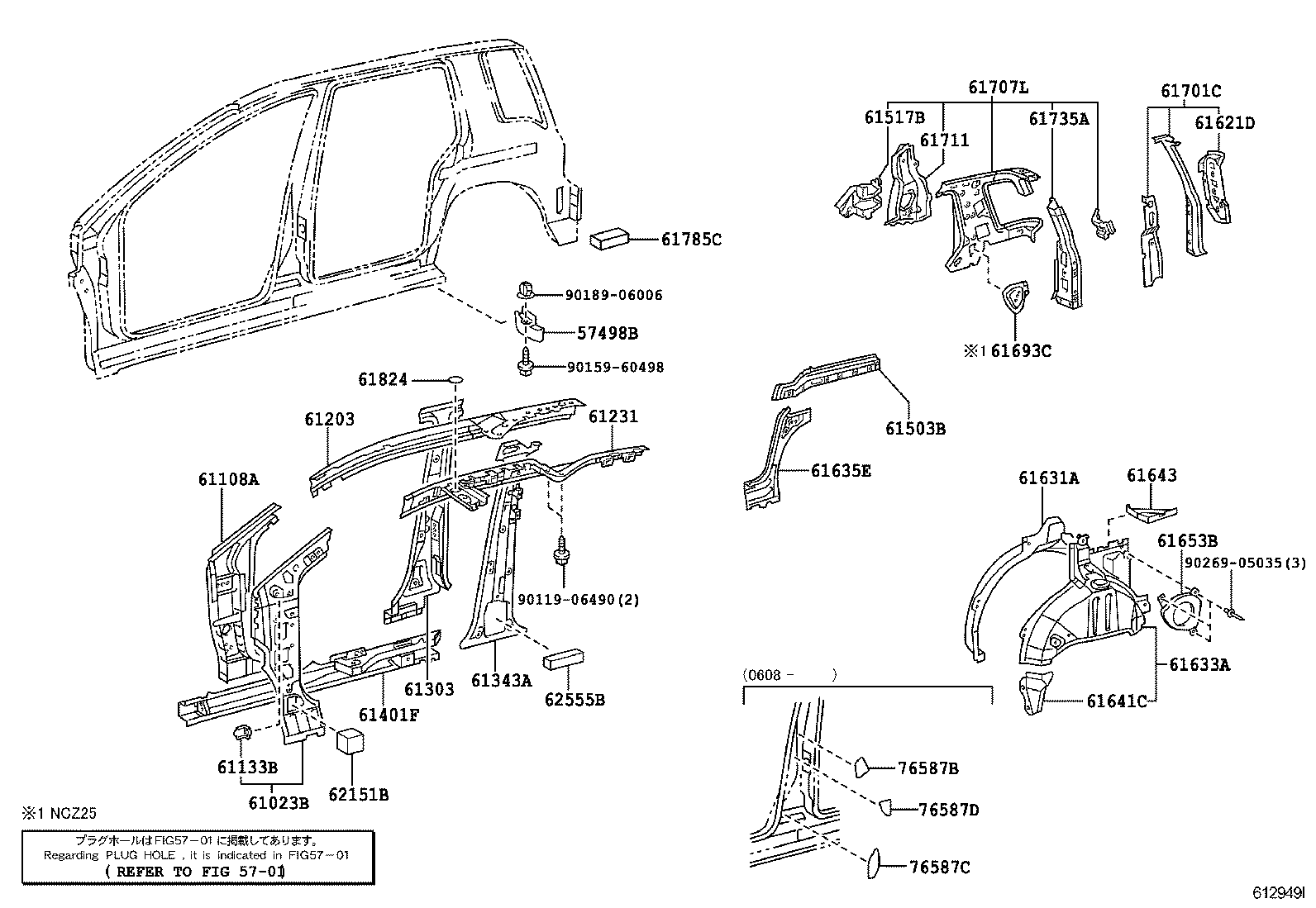

ILLUST NO. 2 OF 2(0304- )
Click highlighted areas on diagram
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57498B - SHIELD, REAR FLOOR HOUSING, LH | ||||
| 57497-46010 |
NCZ2# 右側 |
1 | ||
| 57498-46010 |
NCZ2# 左側 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-46020 |
NCZ2# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-46020 |
NCZ2# |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-20140 |
NCZ2# |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-46900 |
NCZ2# |
1 | ||
| 61203-46900 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-46900 |
NCZ2# |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-46010 |
NCZ2# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-46900 |
NCZ2# |
1 | ||
| 61401F - REINFORCEMENT SUB-ASSY, ROCKER PANEL, RH | ||||
| 61401-46020 |
NCZ2# |
1 | ||
| 61401-46020 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61401-46020 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-46030 |
NCZ2# |
1 | ||
| 61517B - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61503-46020 |
NCZ2# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-46020 |
NCZ2# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-46020 |
NCZ2# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-46030 |
NCZ20 |
1 | ||
| 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61635-46020 |
NCZ2# |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52010 |
NCZ20 |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-46010 |
NCZ2# |
1 | ||
| 61653B - BRACKET, DECK SIDE TRIM | ||||
| 61653-46010 |
NCZ2# |
1 | ||
| 61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61701-46020 |
NCZ2# |
1 | ||
| 61707L - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH | ||||
| 61707-46020 |
NCZ2# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-46020 |
NCZ2# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-46020 |
NCZ2# |
1 | ||
| 61785C - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 61785-46020 |
NCZ2# |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
NCZ2# |
2 | ||
| 61825-52030 |
NCZ2# |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12130 |
NCZ2# |
1 | ||
| 62555B - PAD, PILLAR, NO.5 | ||||
| 62555-52010 |
NCZ2# |
1 | ||
| 62554-12180 |
NCZ2# |
1 | ||
| 76587B - PROTECTOR, PILLAR OUTER GARNISH, NO.1 | ||||
| 76587-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 76587-46010 |
NCZ2# |
1 | ||
| 76587C - PROTECTOR, PILLAR OUTER GARNISH, NO.2 | ||||
| 76588-46010 |
NCZ2# |
1 | ||
| 76588-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 76587D - PROTECTOR, PILLAR OUTER GARNISH, NO.3 | ||||
| 76587-46020 |
NCZ2# |
1 | ||
| 76587-46020 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| Common parts | ||||
| 90119-06490 | ||||
| 90159-60498 | ||||
| 90189-06006 | ||||
| 90269-05035 | ||||
| Linked diagrams | ||||
| 5701 | ||||

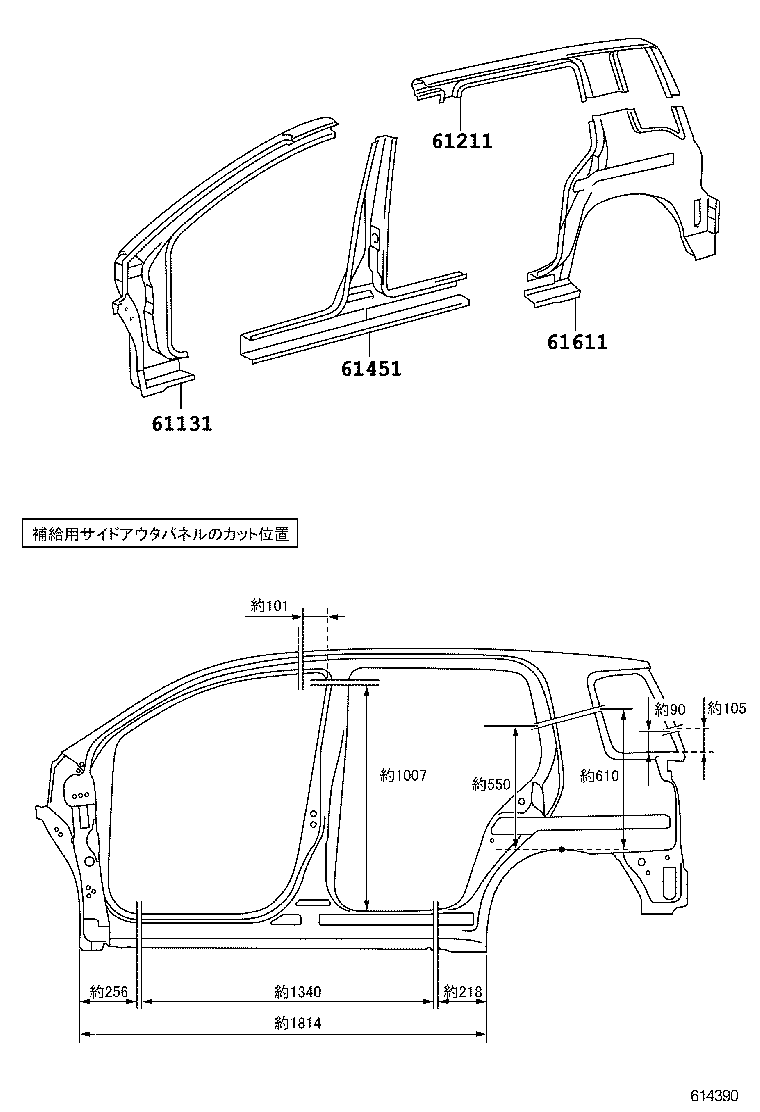

ILLUST NO. 1 OF 2(0304- )
Click highlighted areas on diagram
ｱｳﾀﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-46030 |
NCZ2# ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61131-46020 |
NCZ2# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-46020 |
NCZ2# |
1 | ||
| 61211-46021 |
NCZ2# |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-46020 |
NCZ2# |
1 | ||
| 61451-46030 |
NCZ2# ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-46030 |
NCZ2# |
1 | ||
| 61611-46040 |
NCZ2# ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61611-46041 |
NCZ2# ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61611-46032 |
NCZ2# |
1 | ||
| 61611-46031 |
NCZ2# |
1 | ||
| 61611-46042 |
NCZ2# ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||

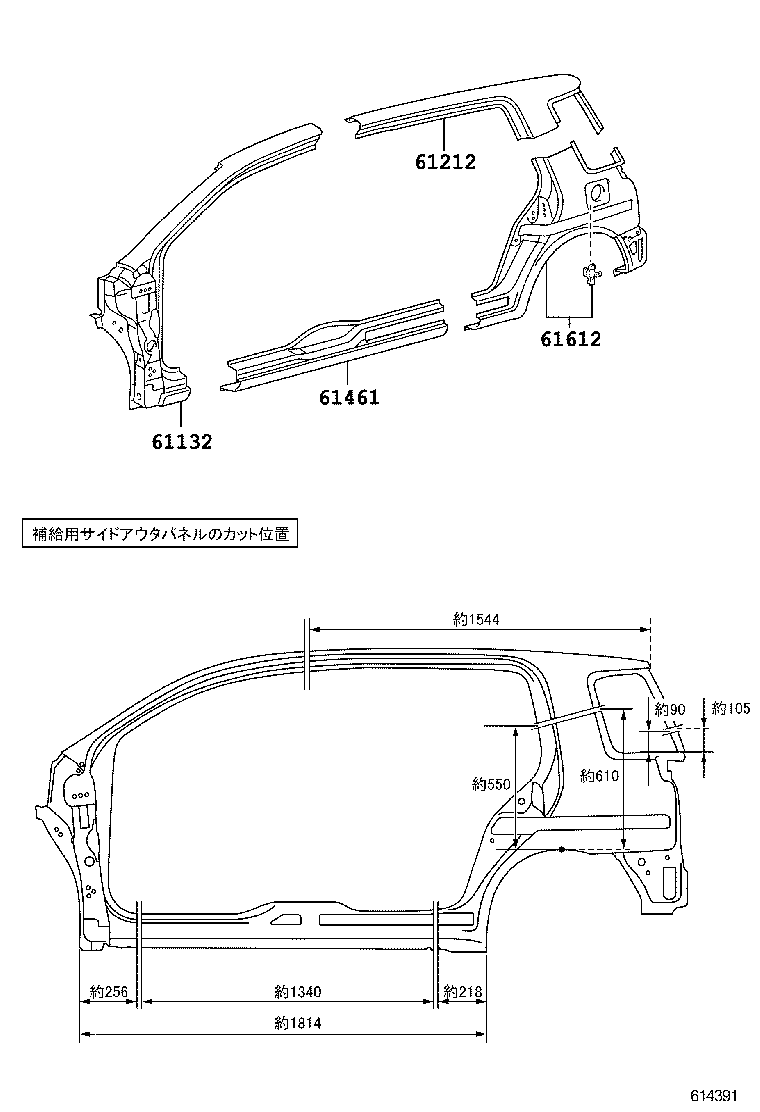

ILLUST NO. 1 OF 2(0304- )
Click highlighted areas on diagram
ｱｳﾀﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-46030 |
NCZ2# ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61132-46020 |
NCZ2# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-46020 |
NCZ2# |
1 | ||
| 61212-46021 |
NCZ2# |
1 | ||
| 61461 - PANEL, ROCKER, OUTER LH | ||||
| 61461-46030 |
NCZ2# ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61461-46020 |
NCZ2# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-46030 |
NCZ2# |
1 | ||
| 61602-46040 |
NCZ2# ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
| 61602-46031 |
NCZ2# |
1 | ||
| 61602-46041 |
NCZ2# ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ) |
1 | ||
