NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

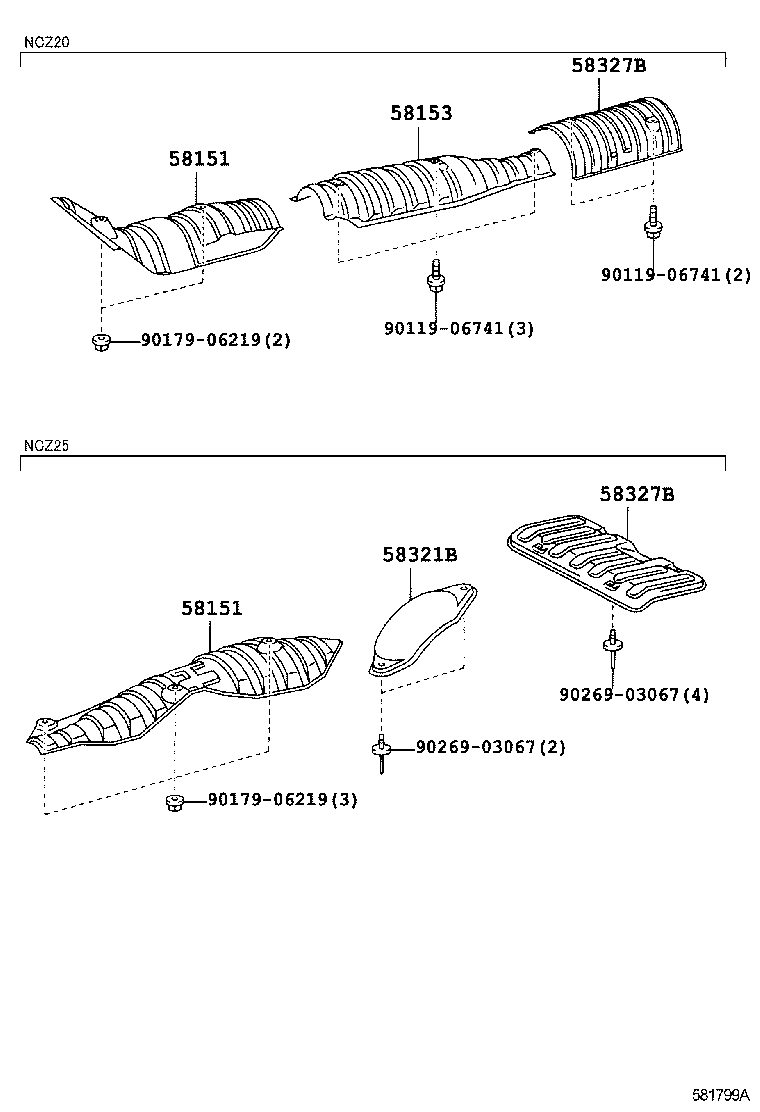

Click highlighted areas on diagram

diagram 58151 58151 58153 58321B 58327B 58327B 9011906741 9011906741 9017906219 9017906219 9026903067 9026903067
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-52030

NCZ20

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-52030

NCZ20

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52050

NCZ20

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52050

NCZ20

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52050

NCZ20

 1
Common parts
90119-06741
90179-06219
90269-03067
