NCZ20-AHPXK (2003)
Toyota Raum

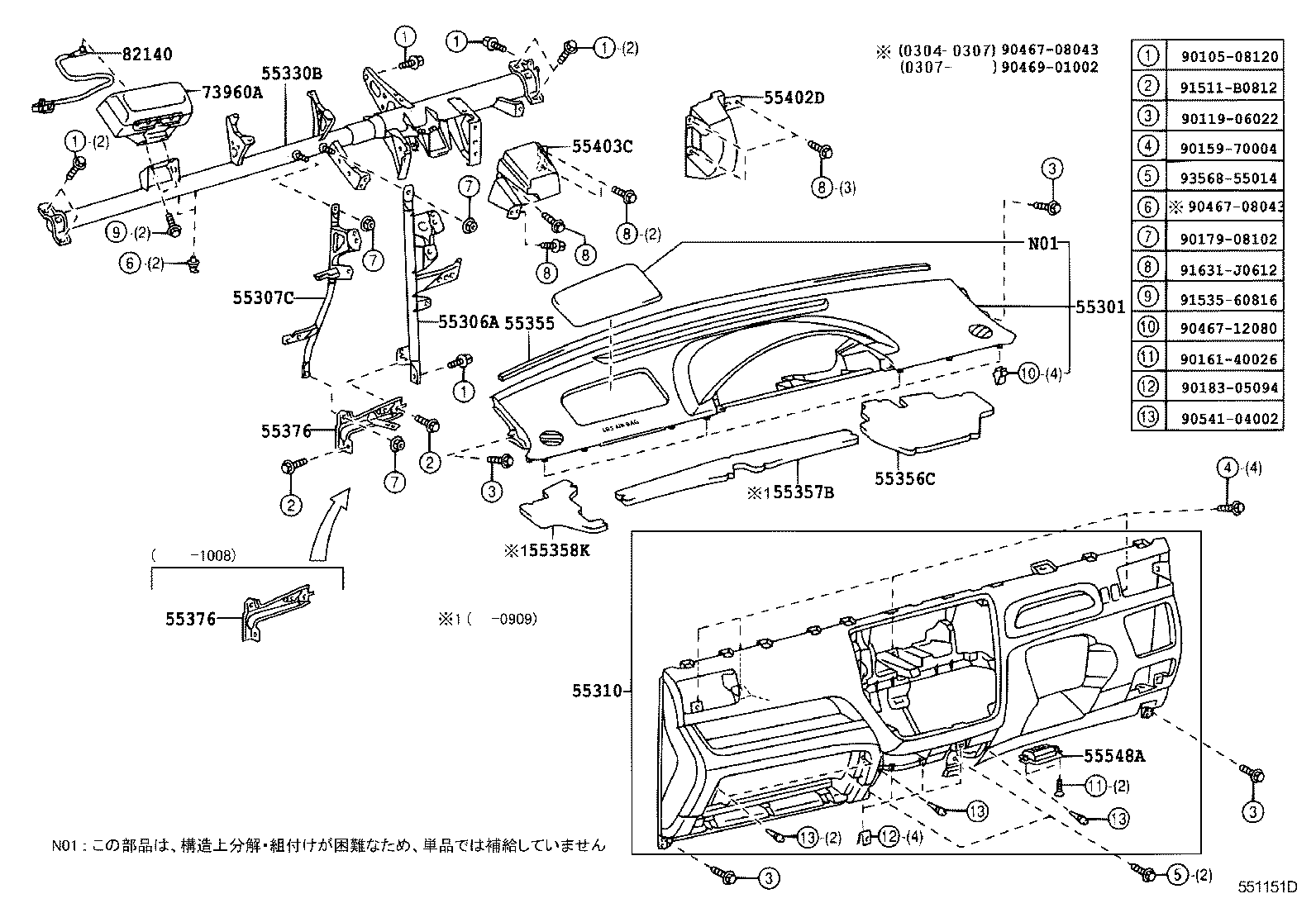

ILLUST NO. 1 OF 2(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-46010E0 |
NCZ2# ORCHID BROWN,TRIM4# |
1 | ||
| 55300-46010C0 |
NCZ2# BLACK,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-46020 |
NCZ2# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-46020 |
NCZ2# |
1 | ||
| 55307-46030 |
NCZ2# |
1 | ||
| 55310 - PANEL ASSY, INSTRUMENT, LOWER | ||||
| 55310-46010B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55310-46010E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-46021 |
NCZ2# |
1 | ||
| 55330-46020 |
NCZ2# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55349-52060 |
NCZ2# |
1 | ||
| 55355-52012 |
NCZ2# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-46010 |
NCZ2# |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-46010 |
NCZ2# |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-46010 |
NCZ2# |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-46010 |
NCZ2# |
1 | ||
| 55309-46020 |
NCZ2# |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-46010 |
NCZ2# |
1 | ||
| 55309-46020 |
NCZ2# |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-46010 |
NCZ2# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-46010 |
NCZ2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-46010B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55548-46010E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-46010 |
NCZ2# |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-46010 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06022 | ||||
| 90159-70004 | ||||
| 90161-40026 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90467-08043 | ||||
| 90467-12080 | ||||
| 90469-01002 | ||||
| 90541-04002 | ||||
| 91511-B0812 | ||||
| 91535-60816 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-22030 |
NCZ2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-46030 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-46010 |
NCZ2# |
1 | ||
| 55405-46010 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-46040 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾 |
1 | ||
| 55405-46010 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-46031 |
NCZ2# |
1 | ||
| 55405-46030 |
NCZ2# |
1 | ||
| 55405-46020 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾 |
1 | ||
| 55405-46031 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-46031 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-46030 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55405-46041 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-46031 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55406-46021 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55406-46030 |
NCZ2# |
1 | ||
| 55406-46030 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55406-46020 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55406-46031 |
NCZ2# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-46031 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55406-46021 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55406-46030 |
NCZ2# |
1 | ||
| 55406-46030 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55406-46020 |
NCZ2# ｴｱｺﾝ−ｵｰﾄ |
1 | ||
| 55406-46031 |
NCZ2# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-46020E0 |
NCZ2# ORCHID BROWN,TRIM4# |
1 | ||
| 55411-46020C0 |
NCZ2# BLACK,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-46030B0 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&C PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 55434-46030B0 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),MD.GRAY,TRIM1# |
1 | ||
| 55434-46030E0 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&C PACKAGE,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55434-46030E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55434-46030B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55434-46030B0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),MD.GRAY,TRIM1# |
1 | ||
| 55434-46030E0 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55434-46030E0 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-46010B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55440-46010E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-52040B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ2# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ2# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り,MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040B0 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040B0 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55441-52040E0 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-52040E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-46010B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010B0 |
NCZ2# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ2# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ20 VSC−有り,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010B0 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010B0 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010B0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1# |
1 | ||
| 55446-46010E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55446-46010E0 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-46020B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55450-46020E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-46020E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55460-46020B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-46020E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55550-46020B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NCZ2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020B4 |
NCZ2# MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 55539-51020E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4#,NO.1 |
1 | ||
| 55539-33080B1 |
NCZ2# MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り,MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-51020B4 |
NCZ2# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-51020E2 |
NCZ2# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,MD.NEUTRAL BONE,TRIM4#,NO.1 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り,MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020B4 |
NCZ2# MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 55539-51020E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4#,NO.1 |
1 | ||
| 55539-33080B1 |
NCZ2# MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り,MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-51020B4 |
NCZ2# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-51020E2 |
NCZ2# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,MD.NEUTRAL BONE,TRIM4#,NO.1 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り,MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-51020B4 |
NCZ2# MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 55539-51020E2 |
NCZ2# MD.NEUTRAL BONE,TRIM4#,NO.1 |
1 | ||
| 55539-33080B1 |
NCZ2# MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り,MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-51020B4 |
NCZ2# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,MD.GRAY,TRIM1#,NO.1 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-51020E2 |
NCZ2# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,MD.NEUTRAL BONE,TRIM4#,NO.1 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り,MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# 有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(左側),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080B1 |
NCZ20 VSC−有り&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ20 VSC−有り&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55539-33080E1 |
NCZ2# ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(右側)&有り(ｳｲﾝﾄﾞｼｰﾙﾄﾞﾃﾞｱｲｻｰ),MD.NEUTRAL BONE,TRIM4#,NO.2 |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-46010B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55545-46010E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-46030E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55550-46030B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-46030B0 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾,MD.GRAY,TRIM1# |
1 | ||
| 55650-46020E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55650-46030E0 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55650-46020B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-46020B0 |
NCZ2# MD.GRAY,TRIM1# |
1 | ||
| 55660-46020E0 |
NCZ2# MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55660-46030E0 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾,MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55660-46030B0 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾,MD.GRAY,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-46030 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55670-46020 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55670-46020 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55670-46020 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55670-46020 |
NCZ2# |
1 | ||
| 55670-46030 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-46030 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55670-46020 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55670-46020 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55670-46020 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55670-46020 |
NCZ2# |
1 | ||
| 55670-46030 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-46020 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾 |
1 | ||
| 55680-46020 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55680-46010 |
NCZ2# |
1 | ||
| 55680-46010 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55680-46010 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55680-46010 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-46020 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾 |
1 | ||
| 55680-46020 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55680-46010 |
NCZ2# |
1 | ||
| 55680-46010 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55680-46010 |
NCZ2# ﾚｼﾞｽﾀｰ−ﾒｯｷ加飾&ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 55680-46010 |
NCZ2# ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｶｾ 6ｽﾋﾟｰｶ |
1 | ||
| 89279J - COVER | ||||
| 89279-52020 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90164-45013 | ||||
| 90467-0502022 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
