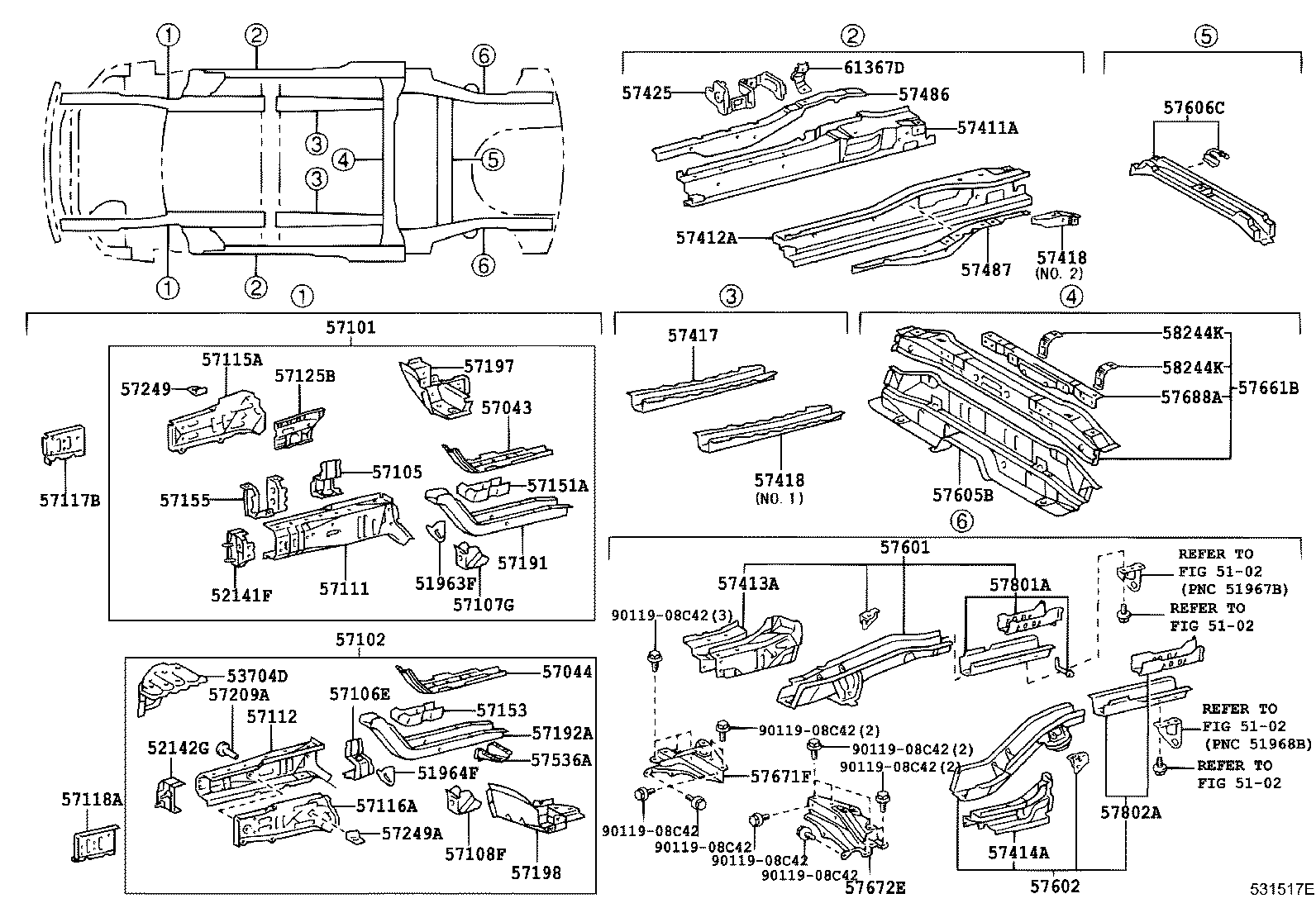

NCZ20-AHPXK (2003)
Toyota Raum
(0304- )NCZ20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963F - HOOK, TRANSPORT | ||||
| 51963-52030 |
NCZ2# |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51963-52030 |
NCZ2# |
1 | ||
| 52141F - ARM, FRONT BUMPER, RH | ||||
| 52141-46020 |
NCZ2# |
1 | ||
| 52142G - ARM, FRONT BUMPER, LH | ||||
| 52142-52010 |
NCZ2# |
1 | ||
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-52010 |
NCZ2# |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-46010 |
NCZ2# |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-46010 |
NCZ2# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-46901 |
NCZ2# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-46901 |
NCZ2# |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-52010 |
NCZ2# |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-52010 |
NCZ2# |
1 | ||
| 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57107-52020 |
NCZ2# |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-52020 |
NCZ2# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-52010 |
NCZ2# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-52010 |
NCZ2# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-52010 |
NCZ2# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-52010 |
NCZ2# |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 57117-52010 |
NCZ2# |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-52010 |
NCZ2# |
1 | ||
| 57125B - REINFORCEMENT, FRONT SIDE MEMBER, RH | ||||
| 57127-46010 |
NCZ2# |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-46010 |
NCZ2# |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-52010 |
NCZ2# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-52012 |
NCZ2# |
1 | ||
| 57155-52011 |
NCZ2# |
1 | ||
| 57191 - PLATE, FRONT SIDE MEMBER, OUTER REAR RH | ||||
| 57191-52900 |
NCZ2# |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-52011 |
NCZ2# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57077-52030 |
NCZ2# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57078-52030 |
NCZ2# |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57209-16090 |
NCZ2# |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-10040 |
NCZ2# |
1 | ||
| 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH | ||||
| 57249-10040 |
NCZ2# |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-46020 |
NCZ2# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-46020 |
NCZ2# |
1 | ||
| 57413A - MEMBER, FLOOR SIDE, INNER REAR RH | ||||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57413-46900 |
NCZ20 |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&後席回転ｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&後席回転ｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414A - MEMBER, FLOOR SIDE, INNER REAR LH | ||||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 57414-46900 |
NCZ20 |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&後席回転ｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&後席回転ｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
2 | ||
| 57417-52031 |
NCZ20 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57417-52031 |
NCZ20 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
2 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-52031 |
NCZ20 NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
1 | ||
| 57418-46010 |
NCZ2# NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.2 |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-52031 |
NCZ20 NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
1 | ||
| 57418-46010 |
NCZ2# NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.2 |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-46010 |
NCZ2# |
1 | ||
| 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-46020 |
NCZ2# |
1 | ||
| 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-46010 |
NCZ2# |
1 | ||
| 57536A - BRACE, FRONT FLOOR, LH | ||||
| 57536-46010 |
NCZ2# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-46030 |
NCZ20 |
1 | ||
| 57601-46040 |
NCZ20 S PACKAGE |
1 | ||
| 57601-46040 |
NCZ20 G PACKAGE |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-46030 |
NCZ20 |
1 | ||
| 57602-46040 |
NCZ20 G PACKAGE |
1 | ||
| 57602-46040 |
NCZ20 S PACKAGE |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-52010 |
NCZ20 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-52040 |
NCZ20 S PACKAGE |
1 | ||
| 57606-52040 |
NCZ20 G PACKAGE |
1 | ||
| 57606-52030 |
NCZ20 |
1 | ||
| 57661B - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 58202-52020 |
NCZ20 G PACKAGE |
1 | ||
| 58202-52020 |
NCZ20 S PACKAGE |
1 | ||
| 58202-52030 |
NCZ20 |
1 | ||
| 57671F - BRACE, REAR FLOOR NO.1 CROSSMEMBER, RH | ||||
| 57671-46020 |
NCZ20 |
1 | ||
| 57672E - BRACE, REAR FLOOR NO.1 CROSSMEMBER, LH | ||||
| 57672-46020 |
NCZ20 |
1 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-52010 |
NCZ20 |
1 | ||
| 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH | ||||
| 57801-46010 |
NCZ20 |
1 | ||
| 57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH | ||||
| 57802-46010 |
NCZ20 |
1 | ||
| 61367D - REINFORCE, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-46010 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| Linked diagrams | ||||
| 5102 | ||||
(0304- )NCZ20
ｱﾘ(ﾘﾔ ﾀﾝﾌﾞﾙ ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963F - HOOK, TRANSPORT | ||||
| 51963-52030 |
NCZ2# |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51963-52030 |
NCZ2# |
1 | ||
| 52141F - ARM, FRONT BUMPER, RH | ||||
| 52141-46020 |
NCZ2# |
1 | ||
| 52142G - ARM, FRONT BUMPER, LH | ||||
| 52142-52010 |
NCZ2# |
1 | ||
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-52010 |
NCZ2# |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-46010 |
NCZ2# |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-46010 |
NCZ2# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-46901 |
NCZ2# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-46901 |
NCZ2# |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-52010 |
NCZ2# |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-52010 |
NCZ2# |
1 | ||
| 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57107-52020 |
NCZ2# |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-52020 |
NCZ2# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-52010 |
NCZ2# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-52010 |
NCZ2# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-52010 |
NCZ2# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-52010 |
NCZ2# |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 57117-52010 |
NCZ2# |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-52010 |
NCZ2# |
1 | ||
| 57125B - REINFORCEMENT, FRONT SIDE MEMBER, RH | ||||
| 57127-46010 |
NCZ2# |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-46010 |
NCZ2# |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-52010 |
NCZ2# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-52012 |
NCZ2# |
1 | ||
| 57155-52011 |
NCZ2# |
1 | ||
| 57191 - PLATE, FRONT SIDE MEMBER, OUTER REAR RH | ||||
| 57191-52900 |
NCZ2# |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-52011 |
NCZ2# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57077-52030 |
NCZ2# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57078-52030 |
NCZ2# |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57209-16090 |
NCZ2# |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-10040 |
NCZ2# |
1 | ||
| 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH | ||||
| 57249-10040 |
NCZ2# |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-46020 |
NCZ2# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-46020 |
NCZ2# |
1 | ||
| 57413A - MEMBER, FLOOR SIDE, INNER REAR RH | ||||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57413-46900 |
NCZ20 |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&後席回転ｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&後席回転ｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE |
1 | ||
| 57413-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414A - MEMBER, FLOOR SIDE, INNER REAR LH | ||||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 57414-46900 |
NCZ20 |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&後席回転ｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&後席回転ｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ)&後席ﾀﾝﾌﾞﾙｼｰﾄ |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&S PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&G PACKAGE |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57414-46900 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&G PACKAGE |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
2 | ||
| 57417-52031 |
NCZ20 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57417-52031 |
NCZ20 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
2 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-52031 |
NCZ20 NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
1 | ||
| 57418-46010 |
NCZ2# NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.2 |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-52031 |
NCZ20 NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
1 | ||
| 57418-46010 |
NCZ2# NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.2 |
1 | ||
| 57418-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.2 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NOD1 |
2 | ||
| 57417-52031 |
NCZ20 ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
1 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席ﾘﾌﾄｱｯﾌﾟ,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.P |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ+ｸﾚｰﾝ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(後席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−助手席回転,NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(運転席回転ｼｰﾄ),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),NO.1 |
2 | ||
| 57417-52031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),NO.1 |
2 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-46010 |
NCZ2# |
1 | ||
| 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-46020 |
NCZ2# |
1 | ||
| 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-46010 |
NCZ2# |
1 | ||
| 57536A - BRACE, FRONT FLOOR, LH | ||||
| 57536-46010 |
NCZ2# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-46030 |
NCZ20 |
1 | ||
| 57601-46040 |
NCZ20 S PACKAGE |
1 | ||
| 57601-46040 |
NCZ20 G PACKAGE |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-46030 |
NCZ20 |
1 | ||
| 57602-46040 |
NCZ20 G PACKAGE |
1 | ||
| 57602-46040 |
NCZ20 S PACKAGE |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-52010 |
NCZ20 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-52040 |
NCZ20 S PACKAGE |
1 | ||
| 57606-52040 |
NCZ20 G PACKAGE |
1 | ||
| 57606-52030 |
NCZ20 |
1 | ||
| 57661B - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 58202-52020 |
NCZ20 G PACKAGE |
1 | ||
| 58202-52020 |
NCZ20 S PACKAGE |
1 | ||
| 58202-52030 |
NCZ20 |
1 | ||
| 57671F - BRACE, REAR FLOOR NO.1 CROSSMEMBER, RH | ||||
| 57671-46020 |
NCZ20 |
1 | ||
| 57672E - BRACE, REAR FLOOR NO.1 CROSSMEMBER, LH | ||||
| 57672-46020 |
NCZ20 |
1 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-52010 |
NCZ20 |
1 | ||
| 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH | ||||
| 57801-46010 |
NCZ20 |
1 | ||
| 57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH | ||||
| 57802-46010 |
NCZ20 |
1 | ||
| 58244K - BRACKET, REAR SEAT CUSHION MOUNTING, RH | ||||
| 58244-52020 |
NCZ20 G PACKAGE |
2 | ||
| 58244-52020 |
NCZ20 S PACKAGE |
2 | ||
| 58244K - BRACKET, REAR SEAT CUSHION MOUNTING, RH | ||||
| 58244-52020 |
NCZ20 G PACKAGE |
2 | ||
| 58244-52020 |
NCZ20 S PACKAGE |
2 | ||
| 61367D - REINFORCE, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-46010 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| Linked diagrams | ||||
| 5102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
