NCZ20-AHPXK (2003)
Toyota Raum
(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53210-46010 |
NCZ2# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-52032 |
NCZ2# |
1 | ||
| 53205-52031 |
NCZ2# |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-52041 |
NCZ2# |
1 | ||
| 53211-52040 |
NCZ2# |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-52040 |
NCZ2# |
1 | ||
| 53212-52041 |
NCZ2# |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-46010 |
NCZ2# |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-46010 |
NCZ2# |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53208-46020 |
NCZ2# |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-52010 |
NCZ2# |
1 | ||
| 53223C - BRACKET, RADIATOR GRILLE MOUNTING, RH | ||||
| 53223-46010 |
NCZ2# |
1 | ||
| 53224B - BRACKET, RADIATOR GRILLE MOUNTING, LH | ||||
| 53224-46010 |
NCZ2# |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 52135-46010 |
NCZ2# |
1 | ||
| 53273A - REINFORCEMENT, RADIATOR SUPPORT, RH | ||||
| 53273-52010 |
NCZ2# |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 52136-46010 |
NCZ2# |
1 | ||
| 53274A - REINFORCEMENT, RADIATOR SUPPORT, LH | ||||
| 53273-52010 |
NCZ2# |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-46010 |
NCZ2# |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-46010 |
NCZ2# |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-52010 |
NCZ2# |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53882-16030 |
NCZ2# |
4 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-46901 |
NCZ2# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-46901 |
NCZ2# |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-52010 |
NCZ2# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-52010 |
NCZ2# |
1 | ||
| 53717D - GUSSET, FENDER APRON, RH | ||||
| 53717-46010 |
NCZ2# |
1 | ||
| 53718D - GUSSET, FENDER APRON, LH | ||||
| 53718-46010 |
NCZ2# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-52020 |
NCZ2# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-52020 |
NCZ2# |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53705-46010 |
NCZ2# |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53706-46010 |
NCZ2# |
1 | ||
| 53783A - INSULATOR, APRON FRONT FENDER, RH | ||||
| 53783-46010 |
NCZ2# |
1 | ||
| 53784A - INSULATOR, APRON FRONT FENDER, LH | ||||
| 53784-46010 |
NCZ2# |
1 | ||
| 53882M - SEAL, FRONT FENDER | ||||
| 53882-46010 |
NCZ2# |
1 | ||
| 53883J - SEAL, FRONT FENDER, LH | ||||
| 53883-46010 |
NCZ2# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-46060 |
NCZ20 |
1 | ||
| 55101-46050 |
NCZ20 |
1 | ||
| 55108B - BRACE SUB-ASSY, DASH TO FRAME, RH | ||||
| 55108-46011 |
NCZ2# |
1 | ||
| 55108-46010 |
NCZ2# |
1 | ||
| 55109 - BRACE SUB-ASSY, DASH TO FRAME, LH | ||||
| 55109-46010 |
NCZ2# |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-52030 |
NCZ2# |
2 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-52030 |
NCZ2# |
2 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-52080 |
NCZ2# |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-52080 |
NCZ2# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-46030 |
NCZ2# |
1 | ||
| 55210-46030 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 55210-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 55210-46031 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 55210-46030 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 55210-46031 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 55210-46031 |
NCZ2# |
1 | ||
| 55210-46031 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-46010 |
NCZ2# |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-46010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 55215-46011 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 55215-46011 |
NCZ2# |
1 | ||
| 55215-46011 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 55215-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 55215-46010 |
NCZ2# |
1 | ||
| 55215-46011 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 55215-46010 |
NCZ2# ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-52010 |
NCZ2# |
1 | ||
| 57233A - RETAINER, ENGINE FRONT SUPPORT, RH | ||||
| 57233-52010 |
NCZ2# |
1 | ||
| 57233-52011 |
NCZ2# |
1 | ||
| 61825F - PLATE, NOISE CONTROL | ||||
| 61826-47010 |
NCZ2# |
2 | ||
| 61825F - PLATE, NOISE CONTROL | ||||
| 61826-47010 |
NCZ2# |
2 | ||
| Common parts | ||||
| 90119-06010 | ||||
| 90119-06506 | ||||
| 90179-08061 | ||||
| 90467-07164 | ||||
| 90541-15024 | ||||
| 90541-15025 | ||||
| 91511-B0818 | ||||
| 91635-40620 | ||||

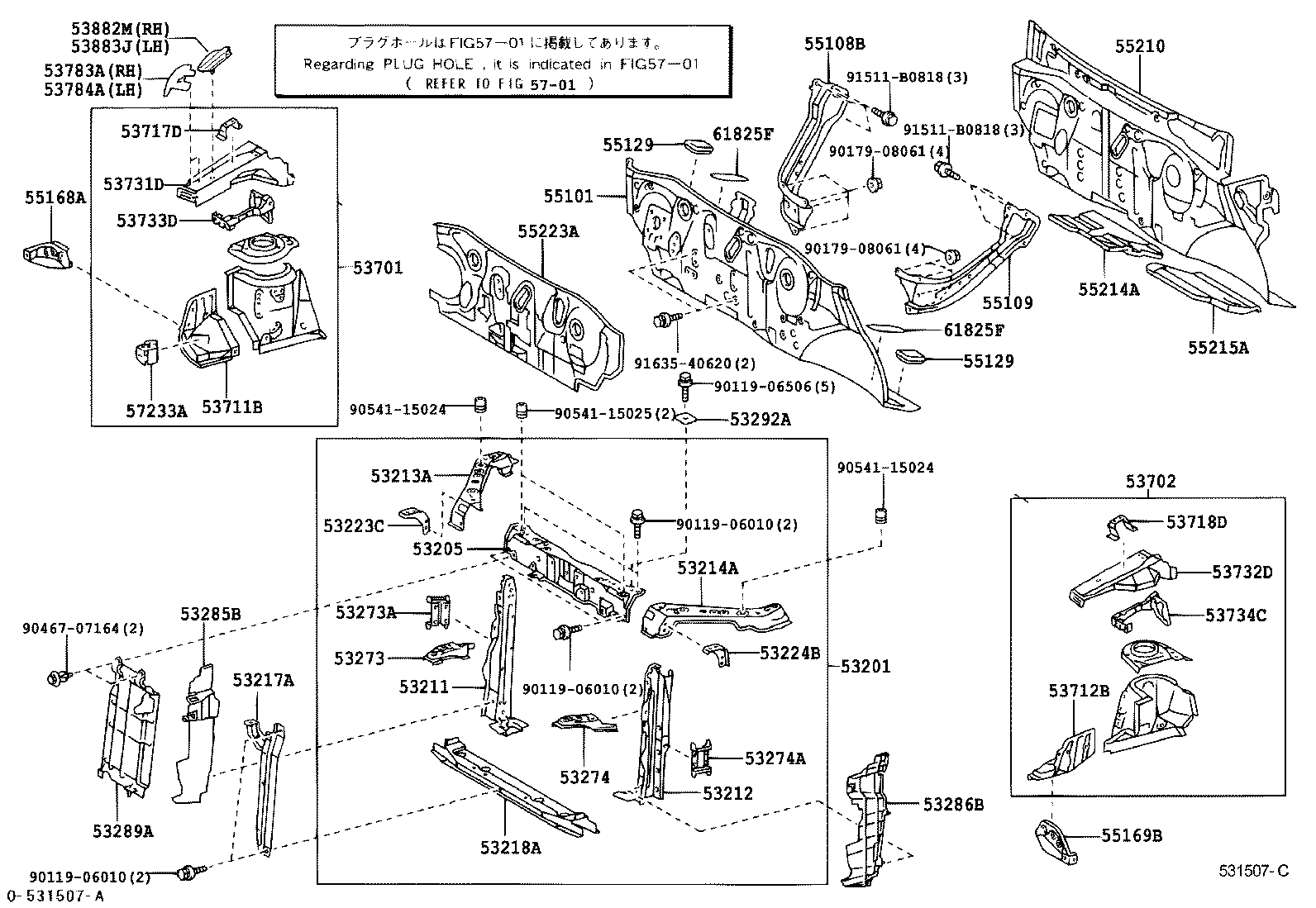

| Linked diagrams | ||||
| 5701 | ||||
