NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

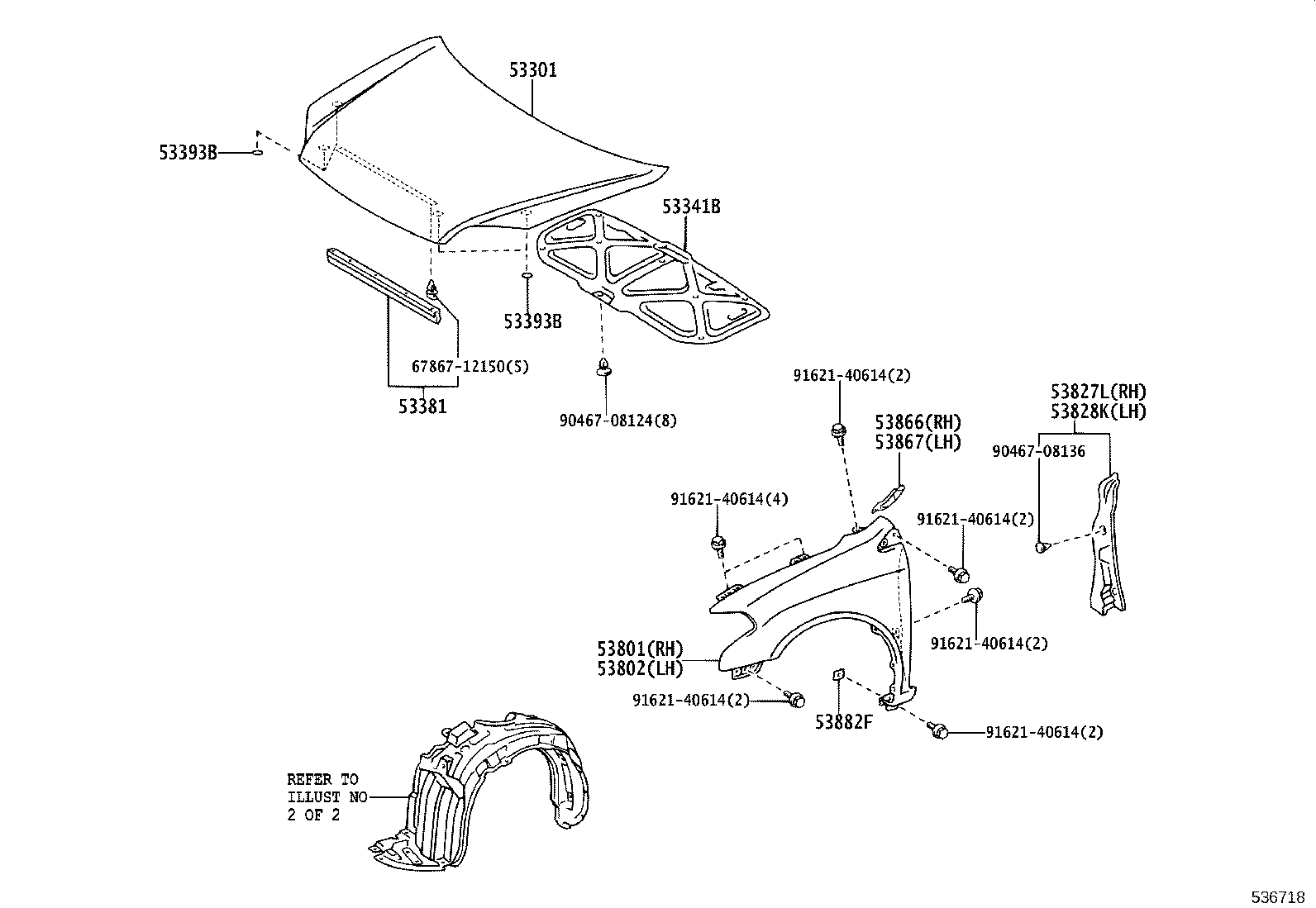

ILLUST NO. 1 OF 2(0304- )

Click highlighted areas on diagram

diagram 53301 53341B 53381 53393B 53393B 53801 53802 53827L 53828K 53866 53867 53882F 6786712150 9046708124 9046708136 9162140614 9162140614 9162140614 9162140614 9162140614 9162140614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-46020

NCZ2#

 1
53341B - INSULATOR, HOOD
53341-46020

NCZ2#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-46020

NCZ2#

 1
53393B - PROTECTOR, HOOD, FRONT
53393-52010

NCZ2#

 4
53393B - PROTECTOR, HOOD, FRONT
53393-52010

NCZ2#

 4
53801 - FENDER SUB-ASSY, FRONT RH
53811-46030

NCZ2#

ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ)

 1
53811-46020

NCZ2#

 1
53811-46050

NCZ2#

ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ)

 1
53811-46040

NCZ2#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-46030

NCZ2#

ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ)

 1
53812-46050

NCZ2#

ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ)

 1
53812-46040

NCZ2#

 1
53812-46020

NCZ2#

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-46020

NCZ2#

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-46020

NCZ2#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-46010

NCZ2#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-46010

NCZ2#

 1
53882F - SEAL, FRONT FENDER
53882-16030

NCZ2#

 4
Common parts
67867-12150
90467-08124
90467-08136
91621-40614

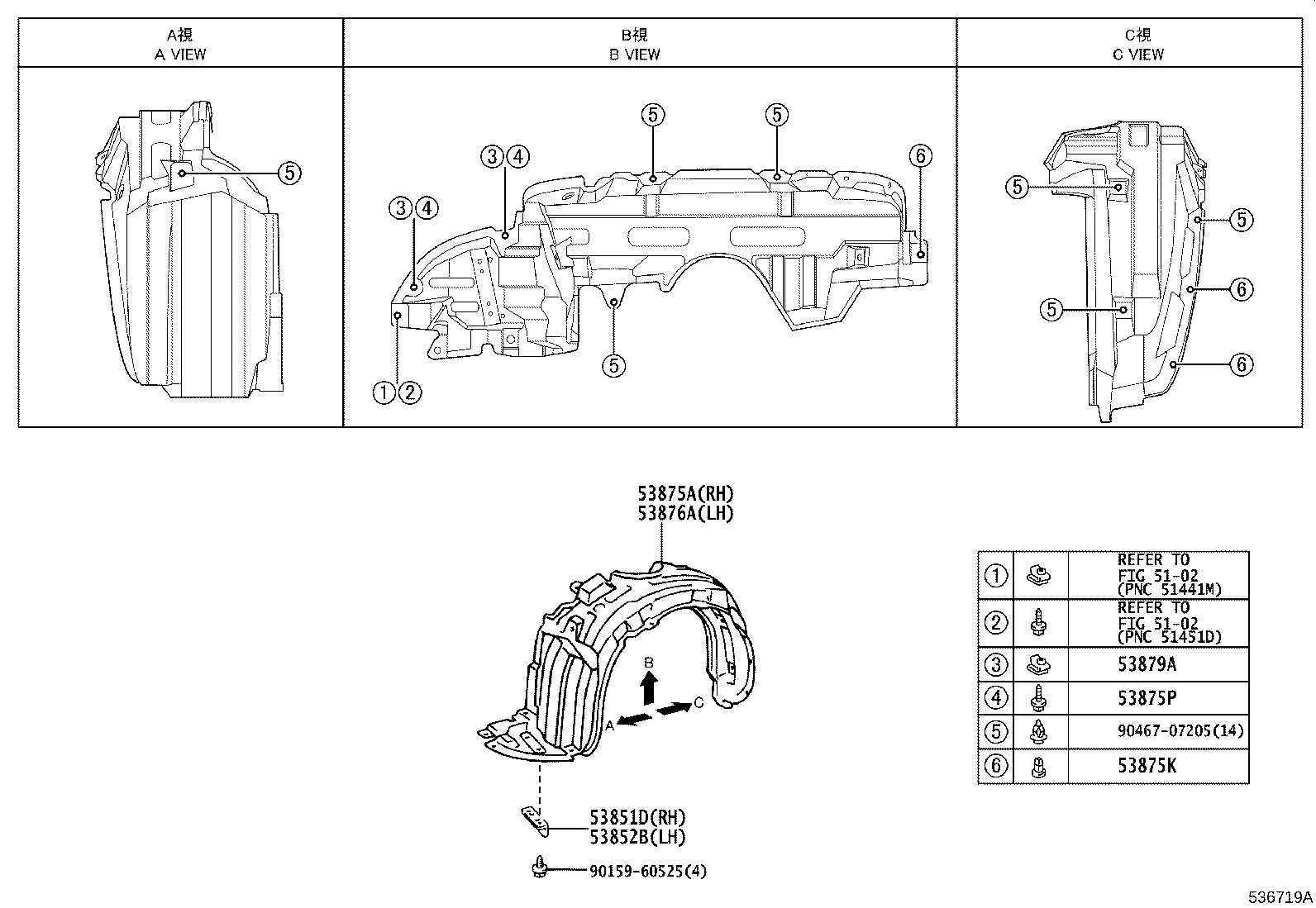

ILLUST NO. 2 OF 2(0304- )

Click highlighted areas on diagram

ﾌｴﾝﾀﾞﾗｲﾅ

diagram 5102 5102 53851D 53852B 53875A 53875K 53875P 53876A 53879A 9015960525 9046707205
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-46010

NCZ2#

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53851-46010

NCZ2#

 1
53875A - LINER, FRONT FENDER, RH
53875-46030

NCZ2#

 1
53875K - GROMMET, SCREW
90189-06013

NCZ2#

 6
53875P - SCREW, NO.1
90159-60488

NCZ2#

 4
53876A - LINER, FRONT FENDER, LH
53876-46030

NCZ2#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-16010

NCZ2#

 4
Common parts
90159-60525
90467-07205
Linked diagrams
5102
