NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

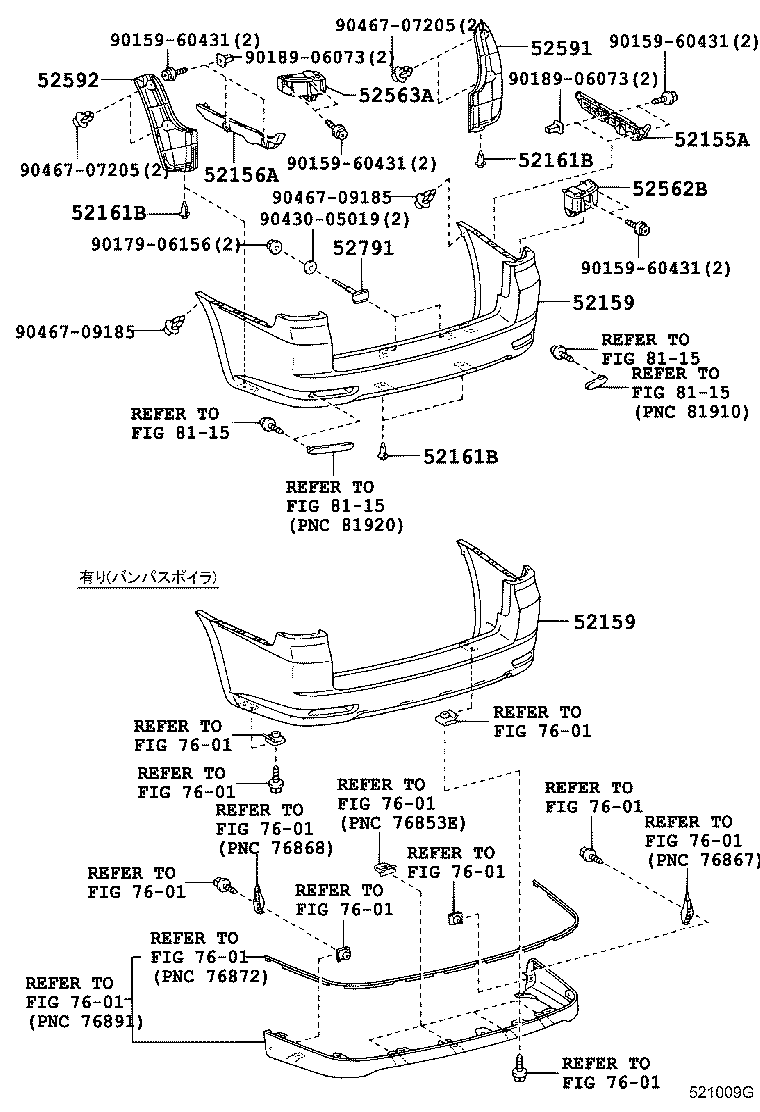

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52159 52161B 52161B 52161B 52562B 52563A 52591 52592 52791 7601 7601 7601 7601 7601 7601 7601 7601 7601 7601 7601 7601 7601 8115 8115 8115 8115 9015960431 9015960431 9015960431 9015960431 9017906156 9018906073 9018906073 9043005019 9046707205 9046707205 9046709185 9046709185
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-46030

NCZ2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-46010

NCZ2#

 1
52159 - COVER, REAR BUMPER
52159-46050A1

NCZ2#

C PACKAGE&NEO EDITION *(A),WHITE PEARL CS.,073

 1
52159-46050A0

NCZ2#

SUPER WHITE 2,040

 1
52159-46060A0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),SUPER WHITE 2,040

 1
52159-46060F0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),CREAM PM.,594

 1
52159-46060J0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),DK.BLUE MC.,8N8

 1
52159-46050D1

NCZ2#

SUPER RED 5,3P0

 1
52159-46050F0

NCZ2#

CREAM PM.,594

 1
52159-46050J1

NCZ2#

LT.BLUE M.M.,8R2

 1
52159-46050J0

NCZ2#

DK.BLUE MC.,8N8

 1
52159-46060D1

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),SUPER RED 5,3P0

 1
52159-46060B0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),SILVER ME.GR.,1D9

 1
52159-46060E0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),PALE ORANGE MICAMETALLIC,4S3

 1
52159-46050B0

NCZ2#

SILVER ME.GR.,1D9

 1
52159-46050G0

NCZ2#

LT.GREEN M.M.,6T4

 1
52159-46050E0

NCZ2#

PALE ORANGE MICA METALLIC,4S3

 1
52159-46060J1

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),LT.BLUE M.M.,8R2

 1
52159-46060G0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),LT.GREEN M.M.,6T4

 1
52159-46050B1

NCZ2#

SILVER ME.,1F7

 1
52159-46060A2

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),WHITE PEARL CS.,070

 1
52159-46050A2

NCZ2#

WHITE PEARL CS.,070

 1
52159-46060B1

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),SILVER ME.,1F7

 1
52159-46050C0

NCZ2#

BLACK MC.,209

 1
52159 - COVER, REAR BUMPER
52159-46050A1

NCZ2#

C PACKAGE&NEO EDITION *(A),WHITE PEARL CS.,073

 1
52159-46050A0

NCZ2#

SUPER WHITE 2,040

 1
52159-46060A0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),SUPER WHITE 2,040

 1
52159-46060F0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),CREAM PM.,594

 1
52159-46060J0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),DK.BLUE MC.,8N8

 1
52159-46050D1

NCZ2#

SUPER RED 5,3P0

 1
52159-46050F0

NCZ2#

CREAM PM.,594

 1
52159-46050J1

NCZ2#

LT.BLUE M.M.,8R2

 1
52159-46050J0

NCZ2#

DK.BLUE MC.,8N8

 1
52159-46060D1

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),SUPER RED 5,3P0

 1
52159-46060B0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),SILVER ME.GR.,1D9

 1
52159-46060E0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),PALE ORANGE MICAMETALLIC,4S3

 1
52159-46050B0

NCZ2#

SILVER ME.GR.,1D9

 1
52159-46050G0

NCZ2#

LT.GREEN M.M.,6T4

 1
52159-46050E0

NCZ2#

PALE ORANGE MICA METALLIC,4S3

 1
52159-46060J1

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),LT.BLUE M.M.,8R2

 1
52159-46060G0

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),LT.GREEN M.M.,6T4

 1
52159-46050B1

NCZ2#

SILVER ME.,1F7

 1
52159-46060A2

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),WHITE PEARL CS.,070

 1
52159-46050A2

NCZ2#

WHITE PEARL CS.,070

 1
52159-46060B1

NCZ2#

S PACKAGE&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ−有り(ｶﾗｰﾄﾞｽﾎﾟｲﾗｰ),SILVER ME.,1F7

 1
52159-46050C0

NCZ2#

BLACK MC.,209

 1
52161B - PIECE, REAR BUMPER
52161-16010

NCZ2#

 4
52161B - PIECE, REAR BUMPER
52161-16010

NCZ2#

 4
52161B - PIECE, REAR BUMPER
52161-16010

NCZ2#

 4
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-46010

NCZ2#

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-46010

NCZ2#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-46020

NCZ2#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-46020

NCZ2#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040

NCZ2#

 2
Common parts
90159-60431
90179-06156
90189-06073
90430-05019
90467-07205
90467-09185
Linked diagrams
7601
8115
