NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

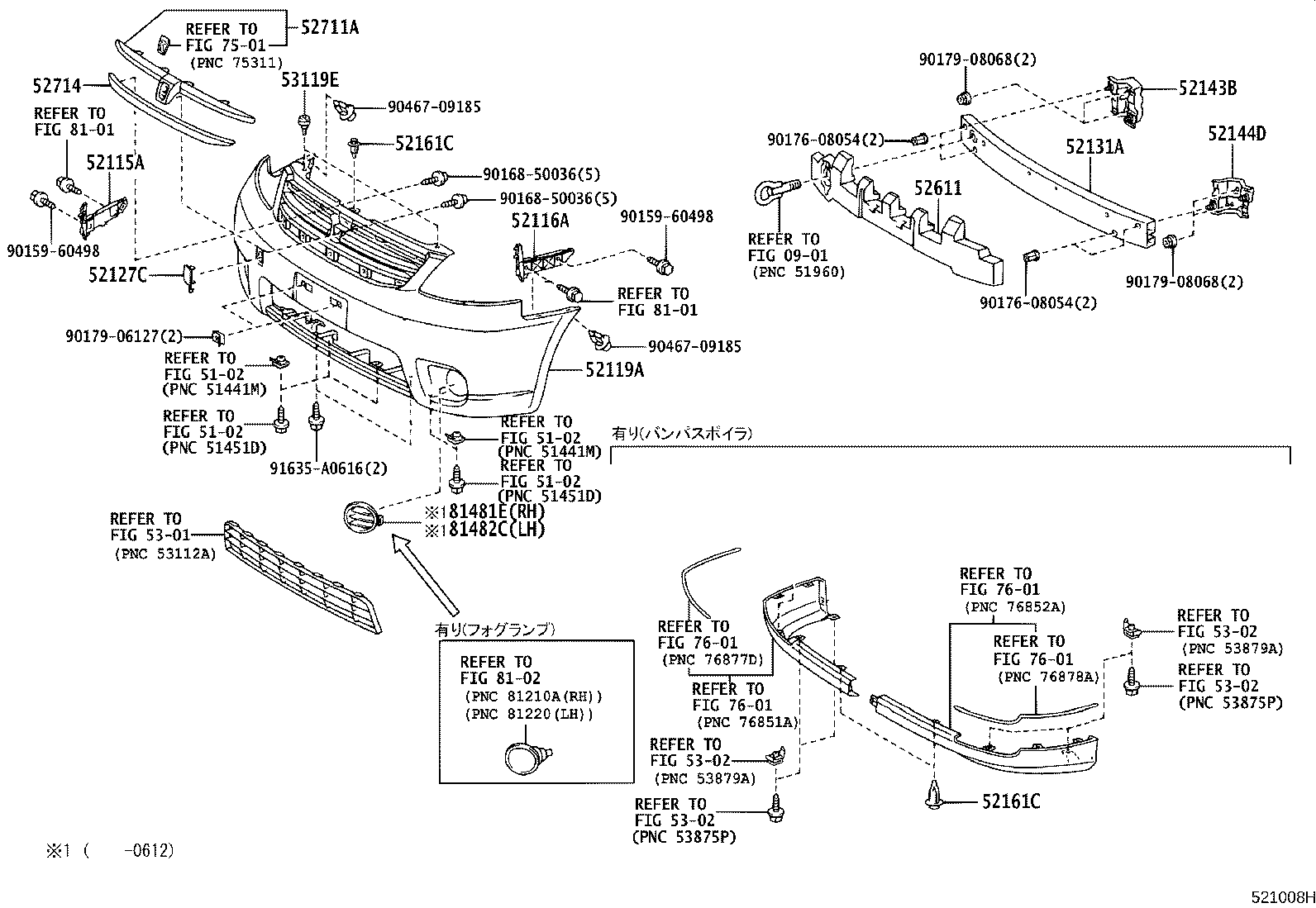

Click highlighted areas on diagram

diagram 0901 5102 5102 5102 5102 52115A 52116A 52119A 52127C 52131A 52143B 52144D 52161C 52161C 52611 52711A 52714 5301 5302 5302 5302 5302 53119E 7501 7601 7601 7601 7601 8101 8101 8102 81481E 81482C 9015960498 9015960498 9016850036 9016850036 9017608054 9017608054 9017906127 9017908068 9017908068 9046709185 9046709185 91635A0616
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-46030

NCZ2#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-46030

NCZ2#

 1
52119A - COVER, FRONT BUMPER
52119-46090A0

NCZ2#

SUPER WHITE 2,040

 1
52119-46110A0

NCZ2#

S PACKAGE,SUPER WHITE 2,040

 1
52119-46110E0

NCZ2#

S PACKAGE,PALE ORANGE MICA METALLIC,4S3

 1
52119-46110F0

NCZ2#

S PACKAGE,CREAM PM.,594

 1
52119-46090D1

NCZ2#

SUPER RED 5,3P0

 1
52119-46090F0

NCZ2#

CREAM PM.,594

 1
52119-46110D1

NCZ2#

S PACKAGE,SUPER RED 5,3P0

 1
52119-46110J0

NCZ2#

S PACKAGE,DK.BLUE MC.,8N8

 1
52119-46110G0

NCZ2#

S PACKAGE,LT.GREEN M.M.,6T4

 1
52119-46090E0

NCZ2#

PALE ORANGE MICA METALLIC,4S3

 1
52119-46090J0

NCZ2#

DK.BLUE MC.,8N8

 1
52119-46090A1

NCZ2#

C PACKAGE&NEO EDITION *(A),WHITE PEARL CS.,073

 1
52119-46090G0

NCZ2#

LT.GREEN M.M.,6T4

 1
52119-46110J1

NCZ2#

S PACKAGE,LT.BLUE M.M.,8R2

 1
52119-46110B0

NCZ2#

S PACKAGE,SILVER ME.GR.,1D9

 1
52119-46090J1

NCZ2#

LT.BLUE M.M.,8R2

 1
52119-46110A2

NCZ2#

S PACKAGE,WHITE PEARL CS.,070

 1
52119-46090A2

NCZ2#

WHITE PEARL CS.,070

 1
52119-46090B1

NCZ2#

SILVER ME.,1F7

 1
52119-46090C0

NCZ2#

BLACK MC.,209

 1
52119-46110B1

NCZ2#

S PACKAGE,SILVER ME.,1F7

 1
52119-46090B0

NCZ2#

SILVER ME.GR.,1D9

 1
52127C - COVER, FRONT BUMPER HOLE
52127-46010A0

NCZ2#

SUPER WHITE 2,040

 1
52127-46010B0

NCZ2#

SILVER ME.GR.,1D9

 1
52127-46010A1

NCZ2#

C PACKAGE&NEO EDITION *(A),WHITE PEARL CS.,073

 1
52127-46010J0

NCZ2#

DK.BLUE MC.,8N8

 1
52127-46010E0

NCZ2#

PALE ORANGE MICA METALLIC,4S3

 1
52127-46010F0

NCZ2#

CREAM PM.,594

 1
52127-46010A2

NCZ2#

WHITE PEARL CS.,070

 1
52127-46010D1

NCZ2#

SUPER RED 5,3P0

 1
52127-46010J1

NCZ2#

LT.BLUE M.M.,8R2

 1
52127-46010G0

NCZ2#

LT.GREEN M.M.,6T4

 1
52127-46010C0

NCZ2#

BLACK MC.,209

 1
52127-46010B1

NCZ2#

SILVER ME.,1F7

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-46020

NCZ2#

 1
52143B - BRACKET, FRONT BUMPER SIDE
52143-46010

NCZ2#

 1
52144D - BRACKET, FRONT BUMPER SIDE, LH
52144-46020

NCZ2#

 1
52161C - PIECE, FRONT BUMPER
52161-16010

NCZ2#

 1
52161C - PIECE, FRONT BUMPER
52161-16010

NCZ2#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-46010

NCZ2#

 1
52711A - GARNISH, FRONT BUMPER
52711-46020

NCZ2#

 1
52711-46010

NCZ2#

 1
52714 - PLUG, FRONT BUMPER MOULDING, LH
52714-46010

NCZ2#

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-12150

NCZ2#

 2
81481E - COVER, FOG LAMP, RH
81481-52040

NCZ2#

 1
81481-52040

NCZ2#

C PACKAGE&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81482C - COVER, FOG LAMP, LH
81482-52020

NCZ2#

 1
81482-52020

NCZ2#

C PACKAGE&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
Common parts
90159-60498
90168-50036
90176-08054
90179-06127
90179-08068
90467-09185
91635-A0616
Linked diagrams
0901
5102
5301
5302
7501
7601
8101
8102
