NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )NCZ20

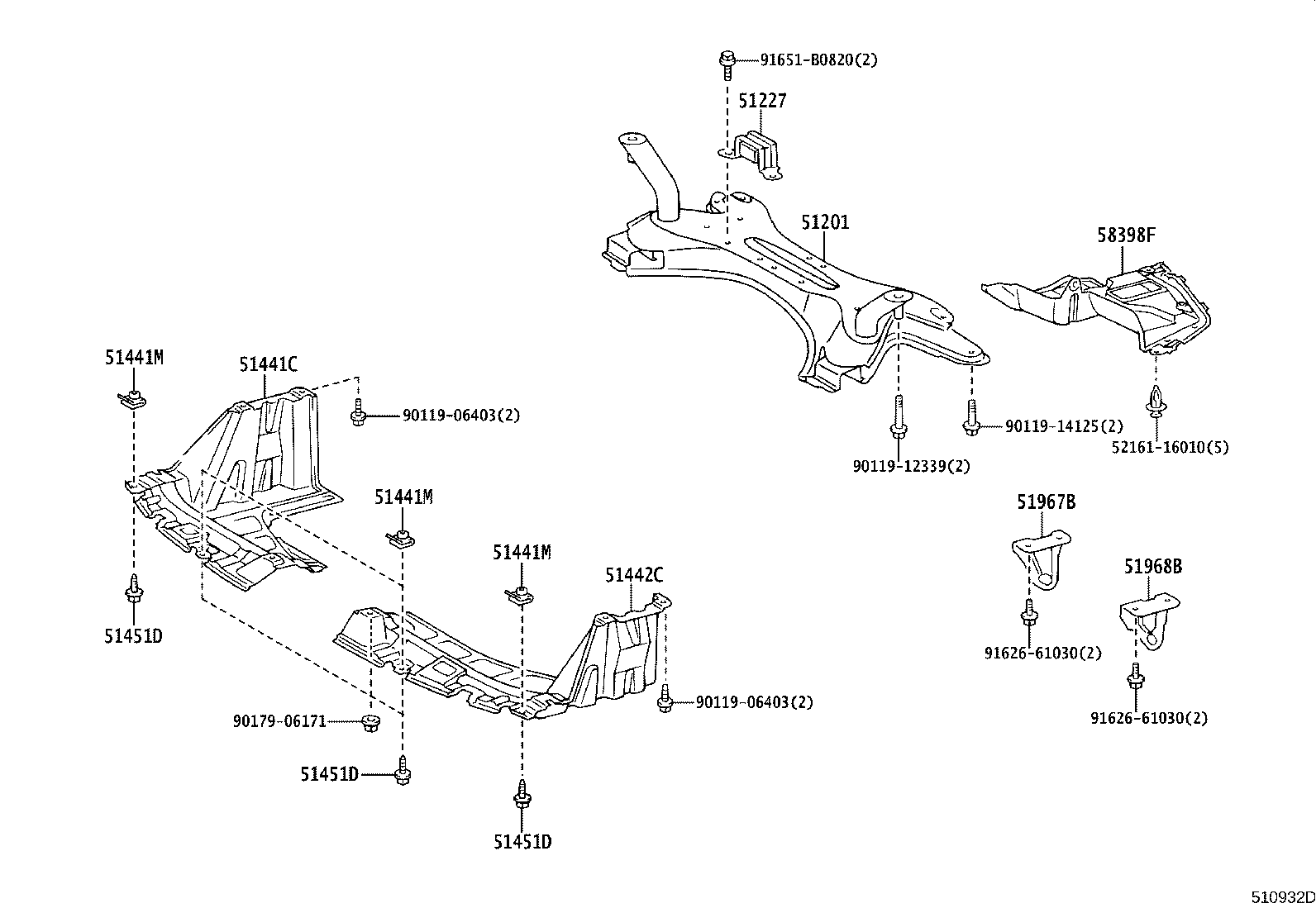

Click highlighted areas on diagram

diagram 51201 51227 51441C 51441M 51441M 51441M 51442C 51451D 51451D 51451D 51967B 51968B 5216116010 58398F 9011906403 9011906403 9011912339 9011914125 9017906171 9162661030 9162661030 91651B0820
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52011

NCZ20

 1
51201-52014

NCZ20

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-46010

NCZ20

 1
51441C - COVER, ENGINE UNDER, RH
51441-52010

NCZ2#

 1
51441M - NUT
90179-05060

NCZ2#

 4
51441M - NUT
90179-05060

NCZ2#

 4
51441M - NUT
90179-05060

NCZ2#

 4
51442C - COVER, ENGINE UNDER, LH
51442-52010

NCZ2#

 1
51451D - SCREW, NO.1
90159-50346

NCZ2#

 4
51451D - SCREW, NO.1
90159-50346

NCZ2#

 4
51451D - SCREW, NO.1
90159-50346

NCZ2#

 4
51967B - HOOK, TRANSPORT, REAR RH
51967-10090

NCZ20

 1
51968B - HOOK, TRANSPORT, REAR LH
51967-48010

NCZ20

寒冷地仕様

 1
51967-10090

NCZ20

 1
58398F - COVER, FLOOR UNDER, NO.1
57629-46010

NCZ20

 1
Common parts
52161-16010
90119-06403
90119-12339
90119-14125
90179-06171
91626-61030
91651-B0820
