NCZ20-AHPXK (2003)
Toyota Raum
Production
Apr 2003
-
Apr 2011
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0304- )NCZ20

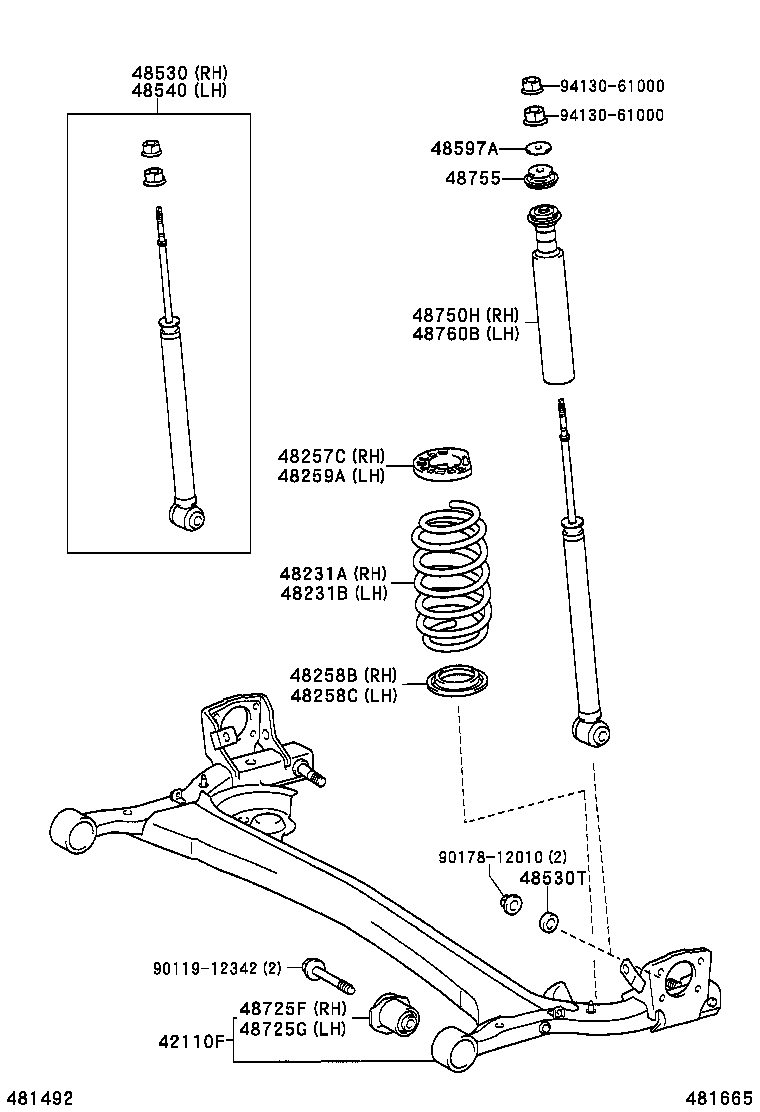

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-46020 |
NCZ20 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-46050 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 48231-46030 |
NCZ20 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-46050 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 48231-46030 |
NCZ20 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-52010 |
NCZ20 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-52010 |
NCZ20 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-52010 |
NCZ20 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-52010 |
NCZ20 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-49365 |
NCZ20 ﾏｰｸ 48530−46040,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15T.5J ｱﾙﾐ |
1 | ||
| 48530-49355 |
NCZ20 ﾏｰｸ 48530−46030 |
1 | ||
| 48530T - SPACER(FOR REAR SHOCK ABSORBER) | ||||
| 90560-12065 |
NCZ20 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-49365 |
NCZ20 ﾏｰｸ 48530−46040,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15T.5J ｱﾙﾐ |
1 | ||
| 48530-49355 |
NCZ20 ﾏｰｸ 48530−46030 |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 90201-10320 |
NCZ20 |
2 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-46020 |
NCZ20 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-46020 |
NCZ20 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-46020 |
NCZ20 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-46010 |
NCZ20 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-46020 |
NCZ20 |
1 | ||
| Common parts | ||||
| 90119-12342 | ||||
| 90178-12010 | ||||
| 94130-61000 | ||||
