NCZ20-AHPXK (2003)
Toyota Raum
Production
Apr 2003
-
Apr 2011
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0304- )

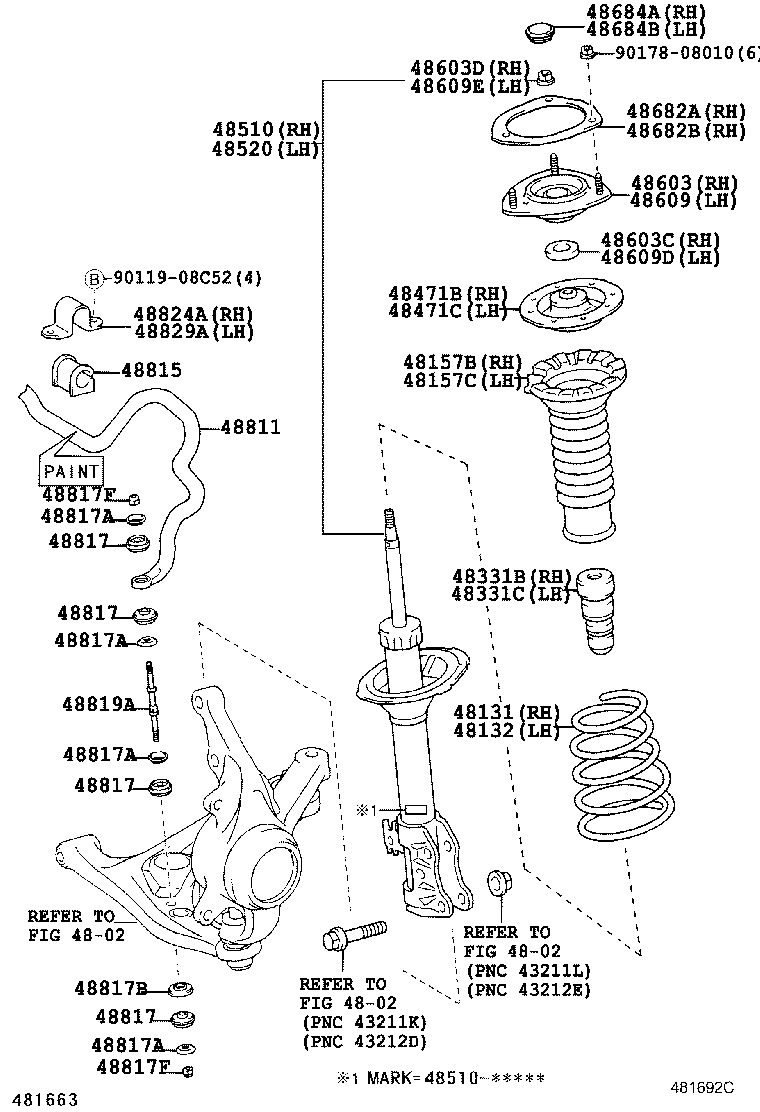

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-46050 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 48131-46030 |
NCZ20 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-46050 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 48131-46030 |
NCZ20 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52010 |
NCZ2# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52010 |
NCZ2# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-52050 |
NCZ20 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-52050 |
NCZ20 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-52010 |
NCZ2# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-52010 |
NCZ2# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-49475 |
NCZ20 ﾏｰｸ 48510−46040,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15T.5J ｱﾙﾐ |
1 | ||
| 48510-49465 |
NCZ20 ﾏｰｸ 48510−46030 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-49465 |
NCZ20 ﾏｰｸ 48510−46030 |
1 | ||
| 48510-49475 |
NCZ20 ﾏｰｸ 48510−46040,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15T.5J ｱﾙﾐ |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52050 |
NCZ2# |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22002 |
NCZ2# |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
NCZ2# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52050 |
NCZ2# |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22002 |
NCZ2# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
NCZ2# |
1 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-52010 |
NCZ2# |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-52010 |
NCZ2# |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
NCZ2# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
NCZ2# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-52060 |
NCZ20 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-52030 |
NCZ2# |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-52010 |
NCZ2# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-52010 |
NCZ2# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-52010 |
NCZ2# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-52010 |
NCZ2# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02179 |
NCZ2# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02179 |
NCZ2# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02179 |
NCZ2# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02179 |
NCZ2# |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02178 |
NCZ2# |
2 | ||
| 48817F - NUT(FOR FRONT STABILIZER BAR) | ||||
| 94182-10800 |
NCZ2# |
4 | ||
| 48817F - NUT(FOR FRONT STABILIZER BAR) | ||||
| 94182-10800 |
NCZ2# |
4 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-52010 |
NCZ2# |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-52031 |
NCZ2# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-52031 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90119-08C52 | ||||
| 90178-08010 | ||||
| Linked diagrams | ||||
| 4802 | ||||
