NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

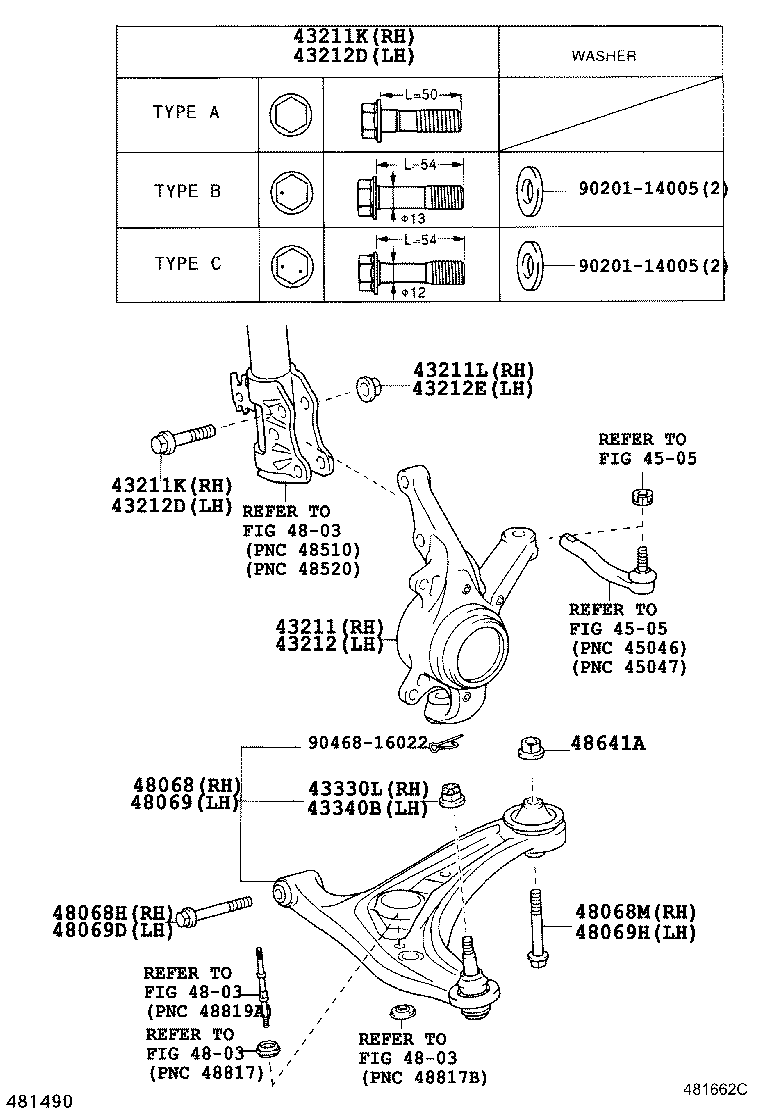

Click highlighted areas on diagram

diagram 43211 43211K 43211K 43211L 43212 43212D 43212D 43212E 43330L 43340B 4505 4505 4803 4803 4803 4803 48068 48068H 48068M 48069 48069D 48069H 48641A 9020114005 9020114005 9046816022
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-52020

NCZ20

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-14147

NCZ2#

外径=12

 1
90105-14140

NCZ2#

外径=14

 2
90105-14146

NCZ2#

外径=13

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-14147

NCZ2#

外径=12

 1
90105-14140

NCZ2#

外径=14

 2
90105-14146

NCZ2#

外径=13

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-14062

NCZ2#

 2
43212 - KNUCKLE, STEERING, LH
43212-52020

NCZ20

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-14140

NCZ2#

外径=14

 2
90105-14146

NCZ2#

外径=13

 1
90105-14147

NCZ2#

外径=12

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-14140

NCZ2#

外径=14

 2
90105-14146

NCZ2#

外径=13

 1
90105-14147

NCZ2#

外径=12

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-14062

NCZ2#

 2
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-12007

NCZ2#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-12007

NCZ2#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-59055

NCZ2#

 1
48068-59035

NCZ2#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-12338

NCZ2#

 1
90119-14086

NCZ2#

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-12337

NCZ2#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-59055

NCZ2#

 1
48069-59035

NCZ2#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-12338

NCZ2#

 1
90119-14086

NCZ2#

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-12337

NCZ2#

 1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90178-12009

NCZ2#

 2
Common parts
90201-14005
90468-16022
Linked diagrams
4505
4803
