NCZ20-AHPXK (2003)
Toyota Raum

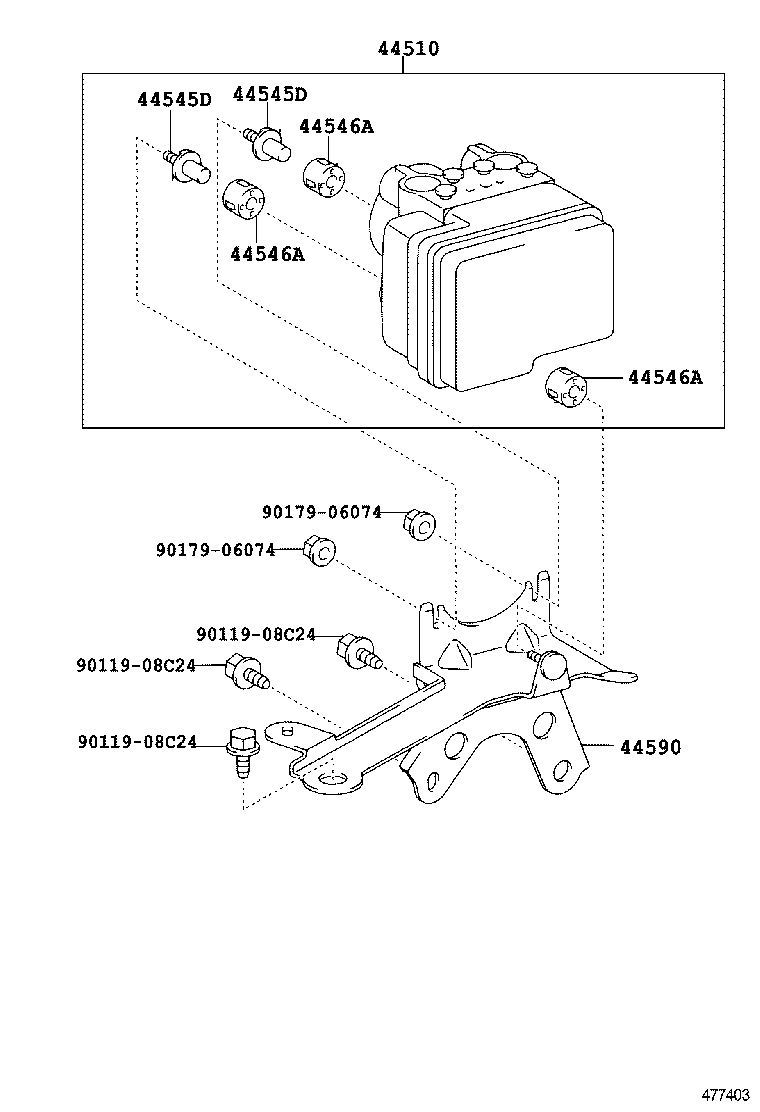

ILLUST NO. 2 OF 2(0304- )NCZ20
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52520 |
NCZ20 VSC−有り |
1 | ||
| 44050-52370 |
NCZ20 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
NCZ20 |
2 | ||
| 44545-42090 |
NCZ20 VSC−有り |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
NCZ20 |
2 | ||
| 44545-42090 |
NCZ20 VSC−有り |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-17050 |
NCZ20 VSC−有り |
3 | ||
| 44546-63010 |
NCZ20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-17050 |
NCZ20 VSC−有り |
3 | ||
| 44546-63010 |
NCZ20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-17050 |
NCZ20 VSC−有り |
3 | ||
| 44546-63010 |
NCZ20 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52060 |
NCZ20 VSC−有り |
1 | ||
| 44590-52110 |
NCZ20 |
1 | ||
| Common parts | ||||
| 90119-08C24 | ||||
| 90179-06074 | ||||

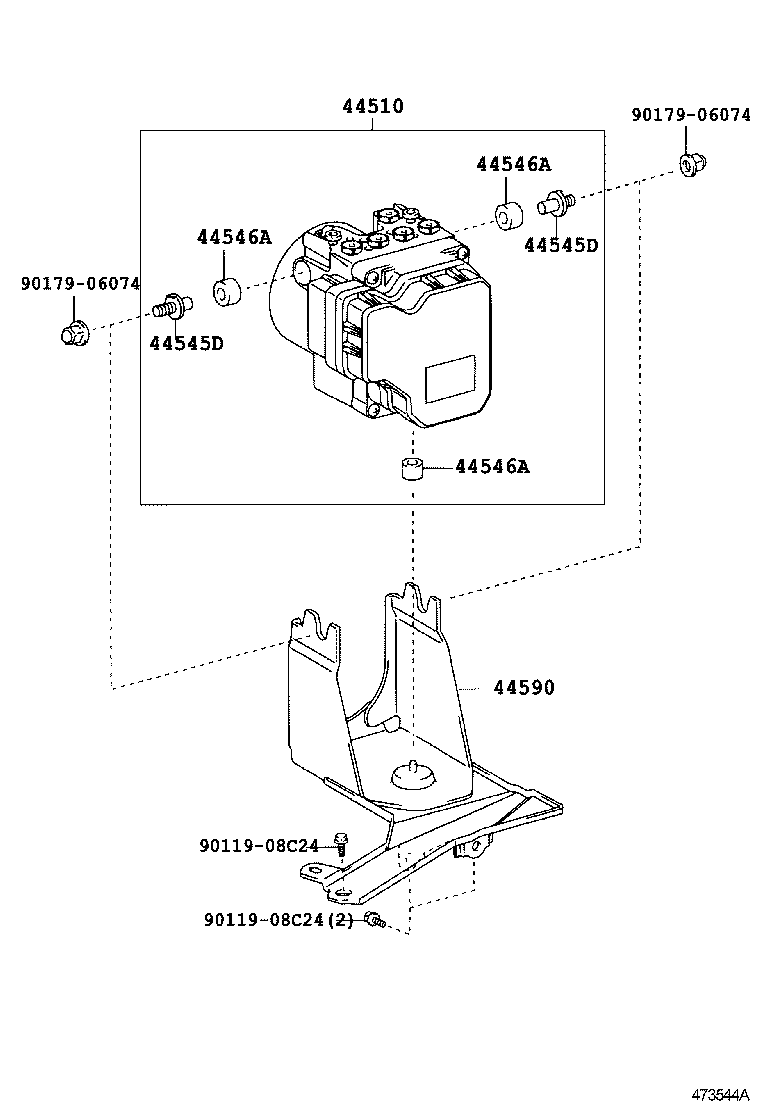

ILLUST NO. 2 OF 2(0304- )NCZ20 ; (0612- )NCZ25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52520 |
NCZ20 VSC−有り |
1 | ||
| 44050-52370 |
NCZ20 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
NCZ20 |
2 | ||
| 44545-42090 |
NCZ20 VSC−有り |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-63010 |
NCZ20 |
2 | ||
| 44545-42090 |
NCZ20 VSC−有り |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-17050 |
NCZ20 VSC−有り |
3 | ||
| 44546-63010 |
NCZ20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-17050 |
NCZ20 VSC−有り |
3 | ||
| 44546-63010 |
NCZ20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-17050 |
NCZ20 VSC−有り |
3 | ||
| 44546-63010 |
NCZ20 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52060 |
NCZ20 VSC−有り |
1 | ||
| 44590-52110 |
NCZ20 |
1 | ||
| Common parts | ||||
| 90119-08C24 | ||||
| 90179-06074 | ||||

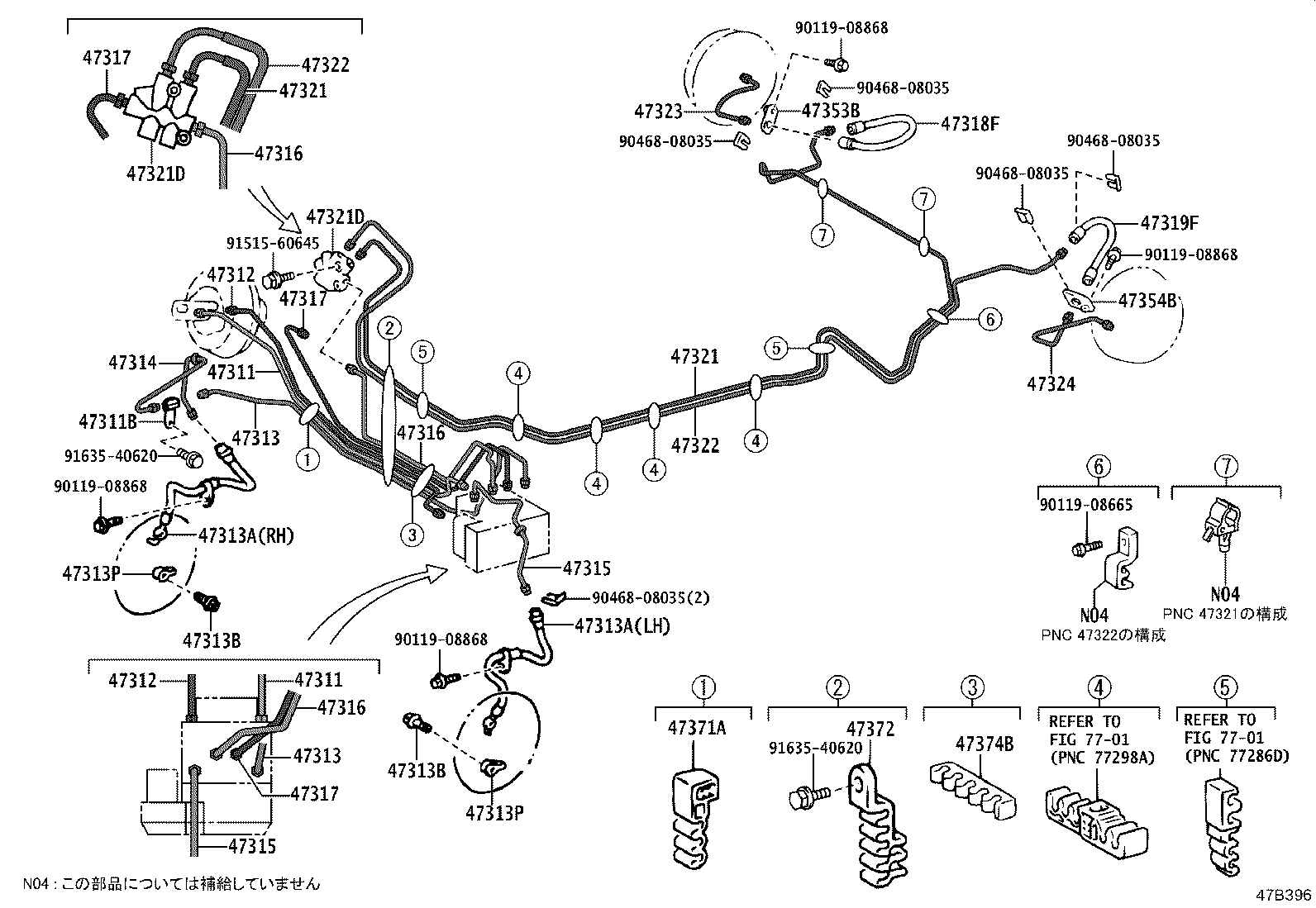

ILLUST NO. 1 OF 2(0304- )NCZ20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52140 |
NCZ20 VSC−有り |
1 | ||
| 47311-46040 |
NCZ20 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52140 |
NCZ20 VSC−有り |
1 | ||
| 47311-46040 |
NCZ20 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10235 |
NCZ2# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52120 |
NCZ20 VSC−有り |
1 | ||
| 47312-46040 |
NCZ20 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52120 |
NCZ20 VSC−有り |
1 | ||
| 47312-46040 |
NCZ20 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52100 |
NCZ20 |
1 | ||
| 47313-52070 |
NCZ20 VSC−有り |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52100 |
NCZ20 |
1 | ||
| 47313-52070 |
NCZ20 VSC−有り |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D76 |
NCZ20 右側 |
1 | ||
| 90947-02D77 |
NCZ20 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D76 |
NCZ20 右側 |
1 | ||
| 90947-02D77 |
NCZ20 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCZ2# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCZ2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCZ2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCZ2# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52011 |
NCZ2# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52070 |
NCZ20 VSC−有り |
1 | ||
| 47315-52110 |
NCZ20 |
1 | ||
| 47315-52071 |
NCZ20 VSC−有り |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52070 |
NCZ20 VSC−有り |
1 | ||
| 47315-52110 |
NCZ20 |
1 | ||
| 47315-52071 |
NCZ20 VSC−有り |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52050 |
NCZ20 VSC−有り |
1 | ||
| 47316-52090 |
NCZ20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52050 |
NCZ20 VSC−有り |
1 | ||
| 47316-52090 |
NCZ20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52050 |
NCZ20 VSC−有り |
1 | ||
| 47316-52090 |
NCZ20 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52050 |
NCZ20 VSC−有り |
1 | ||
| 47317-52090 |
NCZ20 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52050 |
NCZ20 VSC−有り |
1 | ||
| 47317-52090 |
NCZ20 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52050 |
NCZ20 VSC−有り |
1 | ||
| 47317-52090 |
NCZ20 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C30 |
NCZ20 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C30 |
NCZ20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-46050 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47321-52042 |
NCZ20 |
1 | ||
| 47321-46050 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47321-46050 |
NCZ20 VSC−有り |
1 | ||
| 47321-52190 |
NCZ20 VSC−有り |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-46050 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47321-52042 |
NCZ20 |
1 | ||
| 47321-46050 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47321-46050 |
NCZ20 VSC−有り |
1 | ||
| 47321-52190 |
NCZ20 VSC−有り |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCZ2# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCZ2# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-46050 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47322-46050 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47322-52110 |
NCZ20 VSC−有り |
1 | ||
| 47322-52042 |
NCZ20 |
1 | ||
| 47322-46050 |
NCZ20 VSC−有り |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-46050 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47322-46050 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47322-52110 |
NCZ20 VSC−有り |
1 | ||
| 47322-52042 |
NCZ20 |
1 | ||
| 47322-46050 |
NCZ20 VSC−有り |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52090 |
NCZ20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52080 |
NCZ20 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
NCZ20 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NCZ20 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCZ2# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCZ2# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01A18 |
NCZ2# |
1 | ||
| 90949-01A18 |
NCZ20 VSC−有り |
2 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91635-40620 | ||||
| Linked diagrams | ||||
| 7701 | ||||

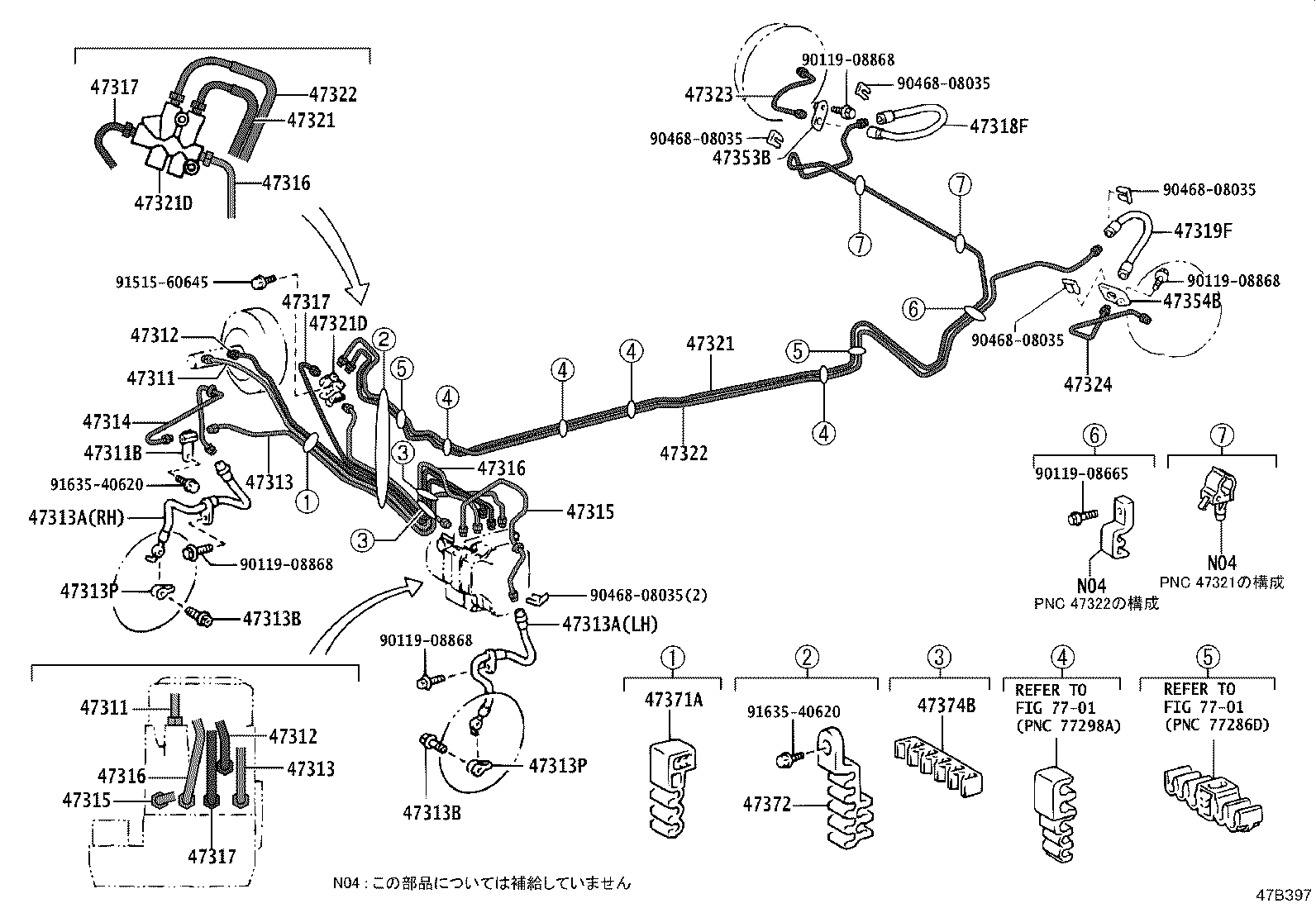

ILLUST NO. 1 OF 2(0304- )NCZ20
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52140 |
NCZ20 VSC−有り |
1 | ||
| 47311-46040 |
NCZ20 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52140 |
NCZ20 VSC−有り |
1 | ||
| 47311-46040 |
NCZ20 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10235 |
NCZ2# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52120 |
NCZ20 VSC−有り |
1 | ||
| 47312-46040 |
NCZ20 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52120 |
NCZ20 VSC−有り |
1 | ||
| 47312-46040 |
NCZ20 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52100 |
NCZ20 |
1 | ||
| 47313-52070 |
NCZ20 VSC−有り |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52100 |
NCZ20 |
1 | ||
| 47313-52070 |
NCZ20 VSC−有り |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D76 |
NCZ20 右側 |
1 | ||
| 90947-02D77 |
NCZ20 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D76 |
NCZ20 右側 |
1 | ||
| 90947-02D77 |
NCZ20 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCZ2# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCZ2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCZ2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCZ2# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52011 |
NCZ2# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52070 |
NCZ20 VSC−有り |
1 | ||
| 47315-52110 |
NCZ20 |
1 | ||
| 47315-52071 |
NCZ20 VSC−有り |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52070 |
NCZ20 VSC−有り |
1 | ||
| 47315-52110 |
NCZ20 |
1 | ||
| 47315-52071 |
NCZ20 VSC−有り |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52050 |
NCZ20 VSC−有り |
1 | ||
| 47316-52090 |
NCZ20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52050 |
NCZ20 VSC−有り |
1 | ||
| 47316-52090 |
NCZ20 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52050 |
NCZ20 VSC−有り |
1 | ||
| 47316-52090 |
NCZ20 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52050 |
NCZ20 VSC−有り |
1 | ||
| 47317-52090 |
NCZ20 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52050 |
NCZ20 VSC−有り |
1 | ||
| 47317-52090 |
NCZ20 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52050 |
NCZ20 VSC−有り |
1 | ||
| 47317-52090 |
NCZ20 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C30 |
NCZ20 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C30 |
NCZ20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-46050 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47321-52042 |
NCZ20 |
1 | ||
| 47321-46050 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47321-46050 |
NCZ20 VSC−有り |
1 | ||
| 47321-52190 |
NCZ20 VSC−有り |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-46050 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47321-52042 |
NCZ20 |
1 | ||
| 47321-46050 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47321-46050 |
NCZ20 VSC−有り |
1 | ||
| 47321-52190 |
NCZ20 VSC−有り |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCZ2# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCZ2# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-46050 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47322-46050 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47322-52110 |
NCZ20 VSC−有り |
1 | ||
| 47322-52042 |
NCZ20 |
1 | ||
| 47322-46050 |
NCZ20 VSC−有り |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-46050 |
NCZ20 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47322-46050 |
NCZ20 VSC−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 47322-52110 |
NCZ20 VSC−有り |
1 | ||
| 47322-52042 |
NCZ20 |
1 | ||
| 47322-46050 |
NCZ20 VSC−有り |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52090 |
NCZ20 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52080 |
NCZ20 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
NCZ20 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NCZ20 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCZ2# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCZ2# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01A18 |
NCZ2# |
1 | ||
| 90949-01A18 |
NCZ20 VSC−有り |
2 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91635-40620 | ||||
| Linked diagrams | ||||
| 7701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
