NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

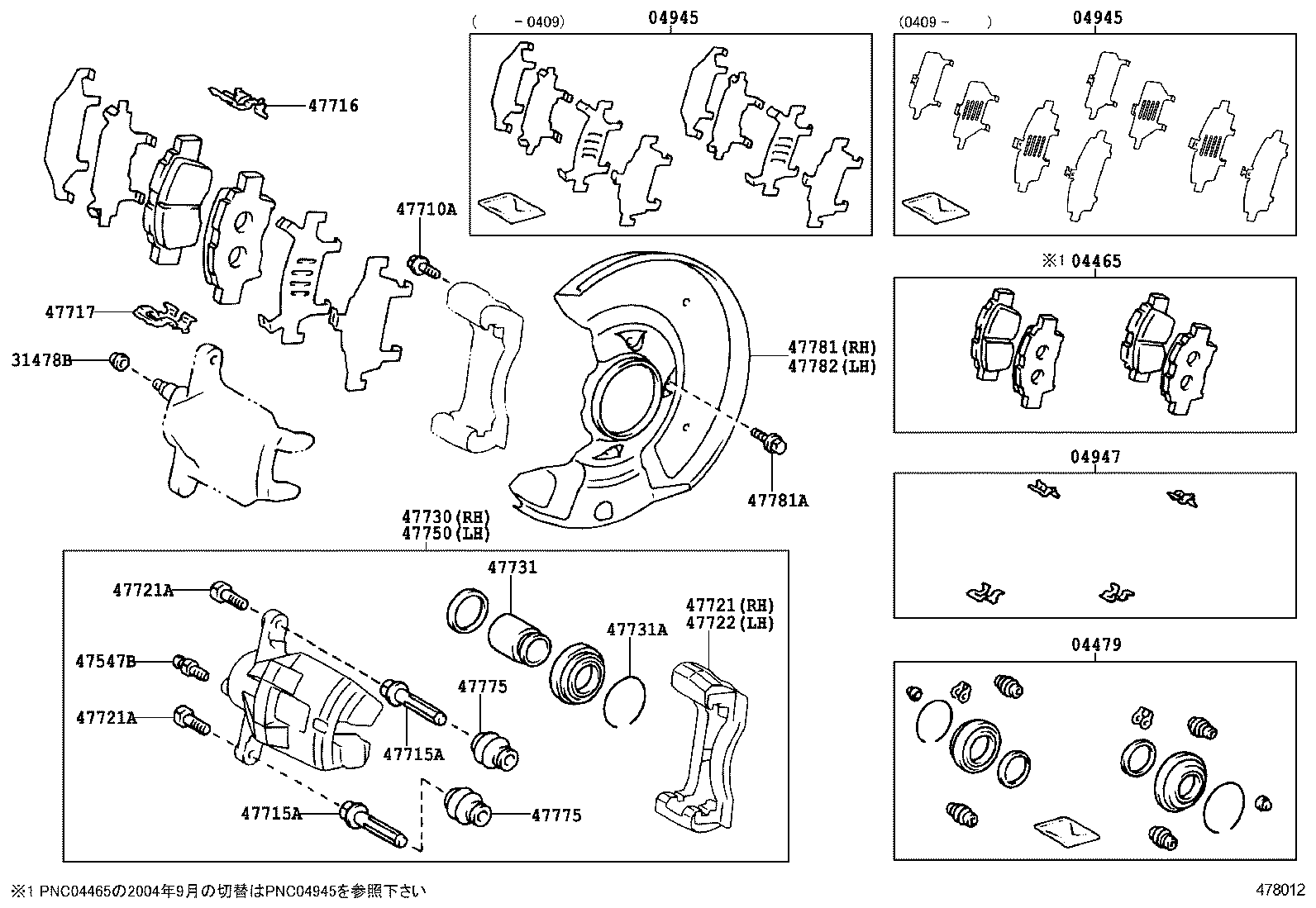

Click highlighted areas on diagram

diagram 04465 04479 04945 04945 04947 31478B 47547B 47710A 47715A 47715A 47716 47717 47721 47721A 47721A 47722 47730 47731 47731A 47750 47775 47775 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-52210

NCZ2#

ﾏｰｸ SUMITOMO PS558H

 1
04465-52170

NCZ2#

ﾏｰｸ SUMITOMO PS558H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-47020

NCZ2#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-52060

NCZ2#

 1
04945-20210

NCZ2#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-52060

NCZ2#

 1
04945-20210

NCZ2#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-47010

NCZ2#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

NCZ2#

 4
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

NCZ2#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12314

NCZ2#

*12−1.25PX27.5−23.8

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-52010

NCZ2#

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-52010

NCZ2#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-12070

NCZ2#

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-12030

NCZ2#

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-52170

NCZ2#

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

NCZ2#

*8−1.00PX23−15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

NCZ2#

*8−1.00PX23−15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-52170

NCZ2#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-52170

NCZ2#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-12170

NCZ2#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-66001

NCZ2#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-52170

NCZ2#

 1
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-52010

NCZ2#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-52010

NCZ2#

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-52020

NCZ2#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

NCZ2#

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-52020

NCZ2#

 1
