NCZ20-AHPXK (2003)
Toyota Raum
Production
Apr 2003
-
Apr 2011
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0304- )

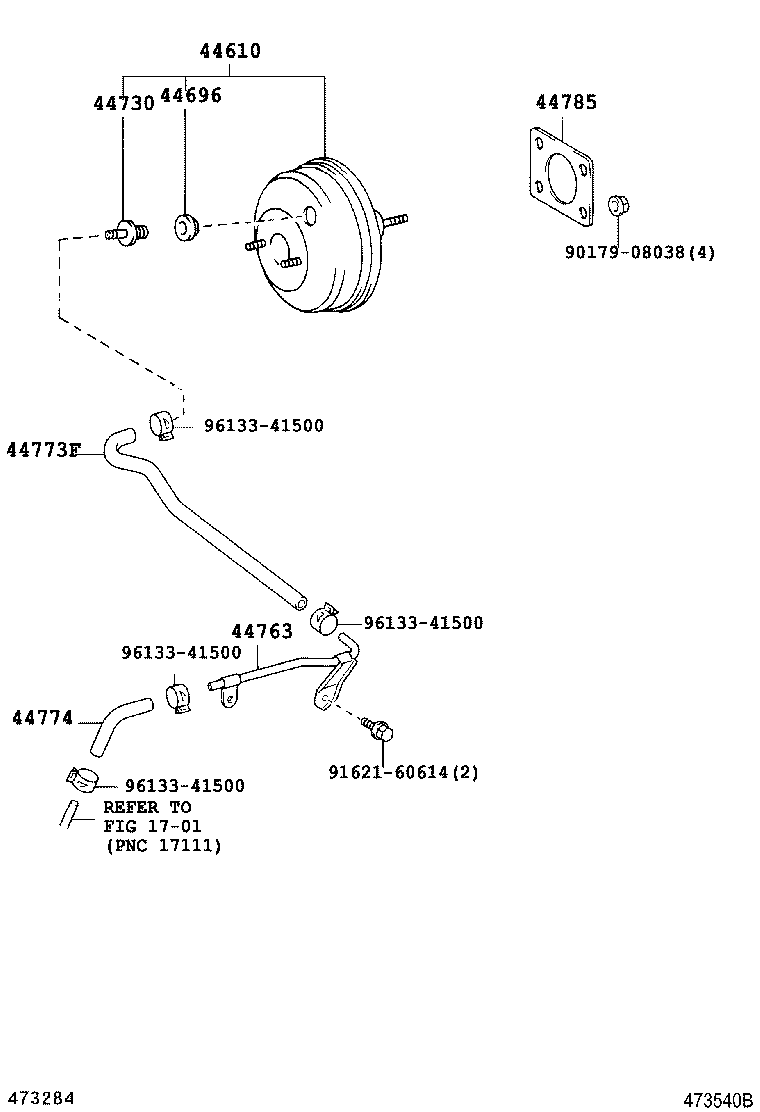

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-46050 |
NCZ20 |
1 | ||
| 44610-46040 |
NCZ20 VSC−有り |
1 | ||
| 44610-46052 |
NCZ20 |
1 | ||
| 44610-46051 |
NCZ20 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NCZ20 VSC−有り |
1 | ||
| 90480-24439 |
NCZ20 |
1 | ||
| 90480-24439 |
NCZ20 |
1 | ||
| 90480-24439 |
NCZ20 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20080 |
NCZ2# |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-52010 |
NCZ2# |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-52080 |
NCZ2# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 95446-09130 |
NCZ2# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NCZ2# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91621-60614 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1701 | ||||
