NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

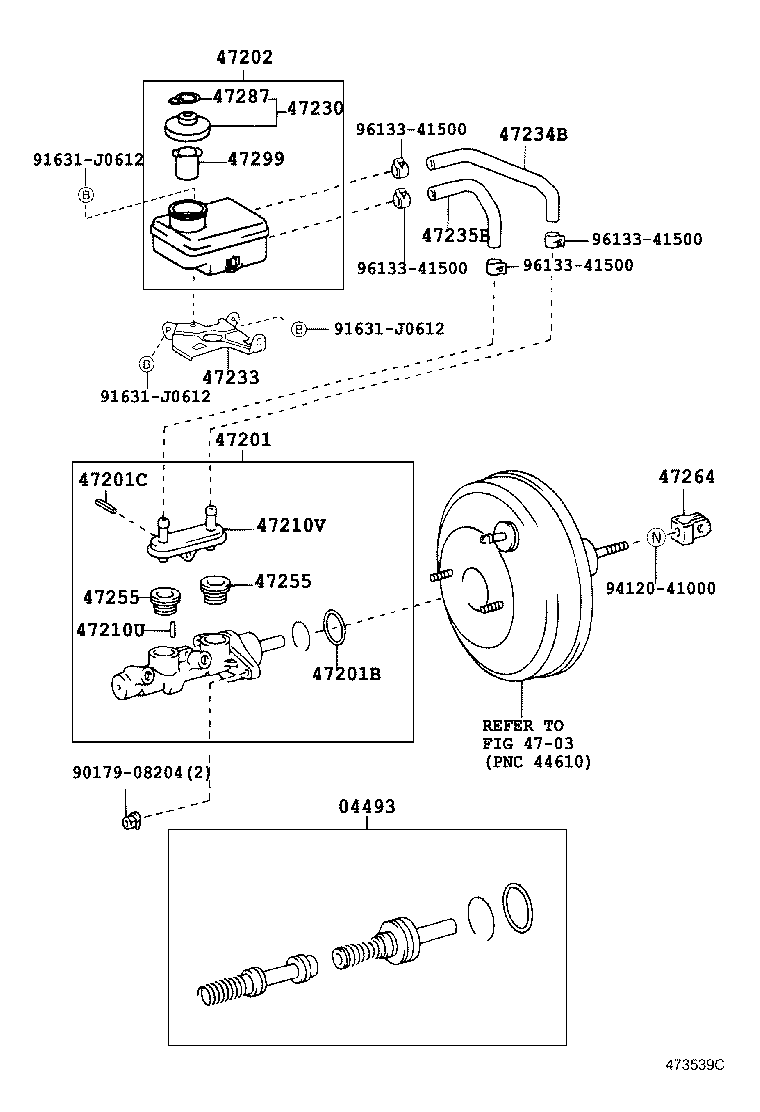

Click highlighted areas on diagram

diagram 04493 4703 47201 47201B 47201C 47202 47210U 47210V 47230 47233 47234B 47235B 47255 47255 47264 47287 47299 9017908204 91631J0612 91631J0612 91631J0612 9412041000 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-46010

NCZ20

 1
04493-52050

NCZ20

VSC−有り

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-46020

NCZ20

VSC−有り

 1
47201-46040

NCZ20

 1
47201-46040

NCZ20

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

NCZ2#

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15804

NCZ2#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-52090

NCZ20

VSC−有り

 1
47220-52090

NCZ20

 1
47220-52090

NCZ20

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-14204

NCZ2#

 1
47210V - UNION(FOR BRAKE MASTER CYLINDER)
90029-40407

NCZ2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-28240

NCZ2#

 1
47233 - BRACKET, RESERVOIR
47233-52010

NCZ2#

 1
47234B - TUBE, RESERVOIR, NO.1
47234-46010

NCZ20

 1
47234-46010

NCZ20

 1
47234-52010

NCZ20

VSC−有り

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-52010

NCZ20

VSC−有り

 1
47235-46010

NCZ20

 1
47235-46010

NCZ20

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
31417-35010

NCZ2#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
31417-35010

NCZ2#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-63020

NCZ2#

 1
47264-68010

NCZ2#

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

NCZ2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010

NCZ2#

 1
Common parts
90179-08204
91631-J0612
94120-41000
96133-41500
