NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )NCZ20

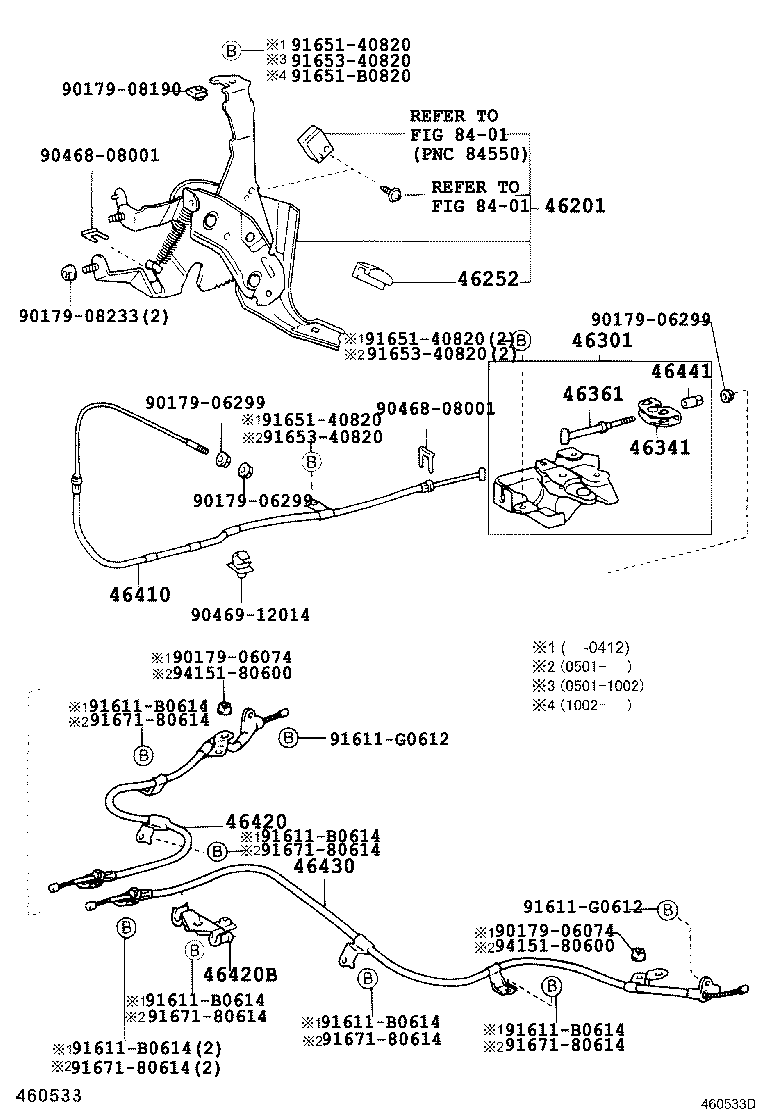

Click highlighted areas on diagram

diagram 46201 46252 46301 46341 46361 46410 46420 46420B 46430 46441 8401 8401 9017906074 9017906074 9017906299 9017906299 9017906299 9017908190 9017908233 9046808001 9046808001 9046912014 91611B0614 91611B0614 91611B0614 91611B0614 91611B0614 91611B0614 91611G0612 91611G0612 9165140820 9165140820 9165140820 91651B0820 9165340820 9165340820 9165340820 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9415180600 9415180600
Part # Description Qty Price
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46210-52020

NCZ2#

 1
46252 - PAD, PARKING PEDAL
46252-52010

NCZ2#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46320-52010

NCZ2#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-52010

NCZ2#

 1
46361 - ROD, PARKING BRAKE PULL
46361-52020

NCZ2#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-52010

NCZ2#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52040

NCZ20

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46451-52010

NCZ2#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52040

NCZ20

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-52010

NCZ2#

 1
Common parts
90179-06074
90179-06299
90179-08190
90179-08233
90468-08001
90469-12014
91611-B0614
91611-G0612
91651-40820
91651-B0820
91653-40820
91671-80614
94151-80600
Linked diagrams
8401
