NCZ20-AHPXK (2003)
Toyota Raum

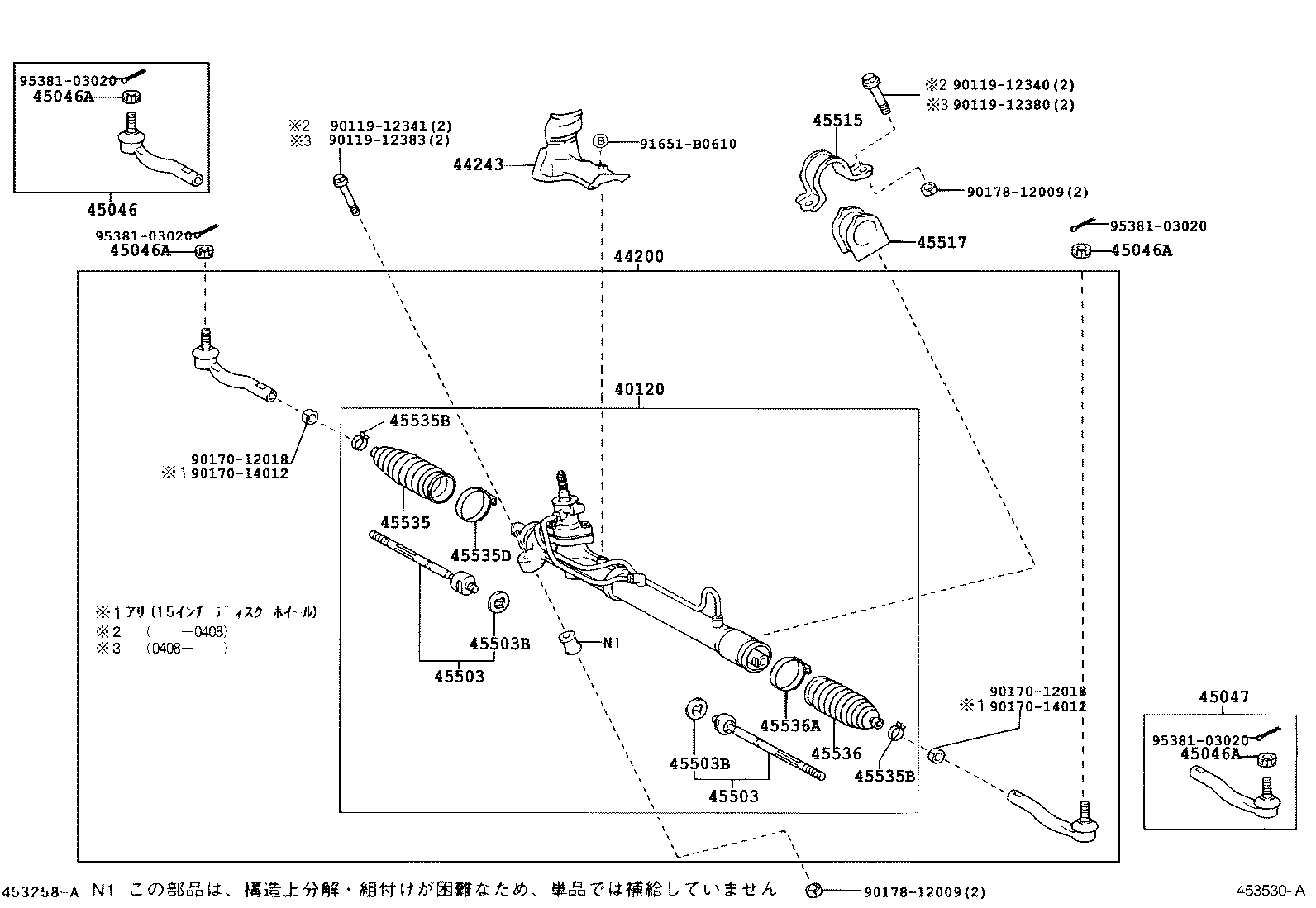

ILLUST NO. 1 OF 2(0304- )NCZ20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-46090 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),TOYODA KOKI |
1 | ||
| 40120-52210 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ,TOYODA KOKI |
1 | ||
| 40120-52210 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ,TOYODA KOKI |
1 | ||
| 40120-46090 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),TOYODA KOKI |
1 | ||
| 40120-46090 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ),TOYODA KOKI |
1 | ||
| 40120-52210 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ,TOYODA KOKI |
1 | ||
| 40120-46090 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4),TOYODA KOKI |
1 | ||
| 40120-46090 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),TOYODA KOKI |
1 | ||
| 40120-46070 |
NCZ20 TOYODA KOKI |
1 | ||
| 40120-52210 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ,TOYODA KOKI |
1 | ||
| 40120-46090 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3),TOYODA KOKI |
1 | ||
| 40120-52210 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ,TOYODA KOKI |
1 | ||
| 40120-52210 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ,TOYODA KOKI |
1 | ||
| 40120-46090 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1),TOYODA KOKI |
1 | ||
| 40120-52210 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ,TOYODAjOKI |
1 | ||
| 40120-46090 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2),TOYODA KOKI |
1 | ||
| 40120-46090 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ),TOYODA KOKI |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-46120 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 44200-46120 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 44200-52370 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 44200-46120 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 44200-46120 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 44200-52370 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 44200-46120 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 44200-52370 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 44200-52370 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 44200-52370 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 44200-52370 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 44200-46120 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 44200-46120 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 44200-46120 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 44200-46120 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 44200-52370 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 44200-46100 |
NCZ20 |
1 | ||
| 44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT | ||||
| 44243-52032 |
NCZ20 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-19175 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 45046-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 45046-59026 |
NCZ20 |
1 | ||
| 45046-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 45046-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCZ2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCZ2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCZ2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCZ2# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45047-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4) |
1 | ||
| 45047-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45047-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 45047-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3) |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45047-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1) |
1 | ||
| 45047-59026 |
NCZ20 |
1 | ||
| 45046-19175 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45047-59026 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2) |
1 | ||
| 45046-19175 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59045 |
NCZ20 |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503-59045 |
NCZ20 |
2 | ||
| 45503-59055 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14010 |
NCZ20 外径=34 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14010 |
NCZ20 外径=34 |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-52010 |
NCZ20 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-52010 |
NCZ20 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-13010 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-52040 |
NCZ20 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90466-17002 |
NCZ20 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90467-19019 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
2 | ||
| 90466-17002 |
NCZ20 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-55016 |
NCZ20 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ1)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ･運転席電動ｽﾗｲﾄﾞﾄﾞｱ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ2)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ4)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-52040 |
NCZ20 |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ 取付ﾀｲﾌﾟ3)&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45535-13010 |
NCZ20 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R15 5.5J ｱﾙﾐ |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-55016 |
NCZ20 |
1 | ||
| Common parts | ||||
| 90119-12380 | ||||
| 90119-12383 | ||||
| 90170-12018 | ||||
| 90170-14012 | ||||
| 90178-12009 | ||||
| 91651-B0610 | ||||
| 95381-03020 | ||||

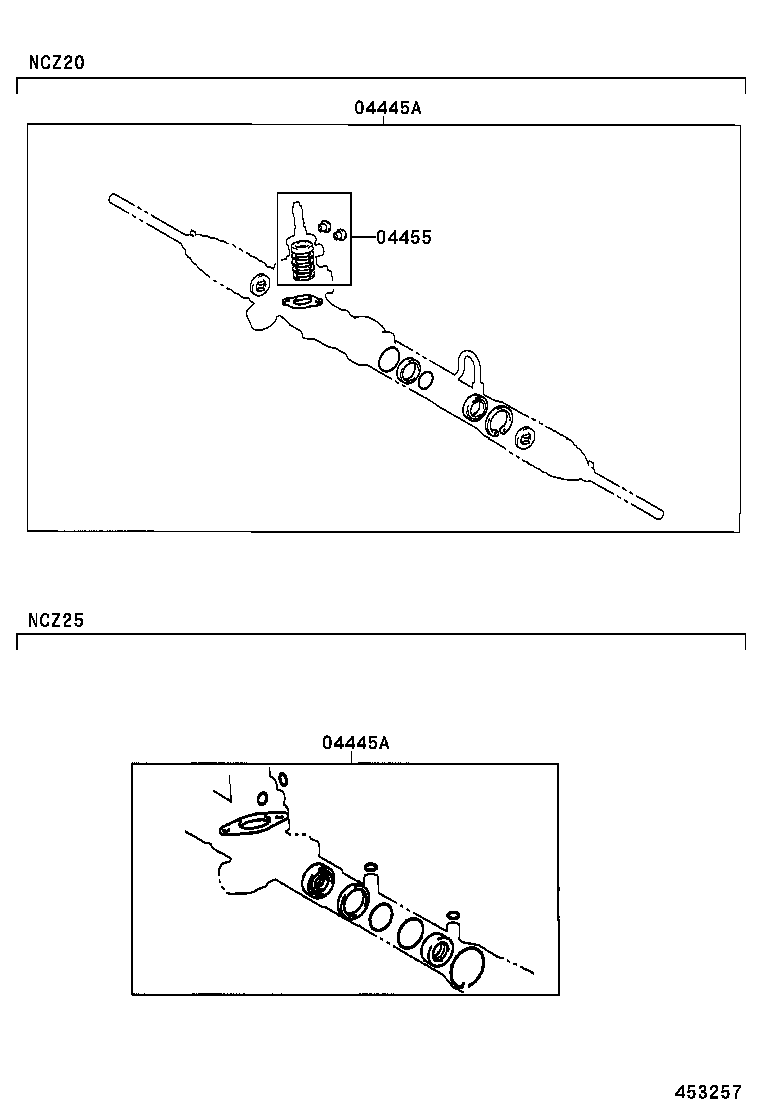

ILLUST NO. 2 OF 2(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-52020 |
NCZ20 |
1 | ||
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-52020 |
NCZ20 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-52010 |
NCZ20 |
1 | ||
