NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304-0612)

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45130 45186 45187 45188 45188 45201P 8401 8401 8401 8401
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-46010E0

NCZ2#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MD.NEUTRAL BONE,TRIM4#

 1
45100-46020B0

NCZ2#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,S PACKAGE,MD.GRAY,TRIM1#

 1
45100-46010B0

NCZ2#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MD.GRAY,TRIM1#

 1
45100-46020E0

NCZ2#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,S PACKAGE,MD.NEUTRAL BONE,TRIM4#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-46010

NCZ2#

 1
45130 - BUTTON ASSY, HORN
45130-46030E0

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
45130-46030B0

NCZ2#

MD.GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-46010E0

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
45186-46010B0

NCZ2#

MD.GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-46010B0

NCZ2#

MD.GRAY,TRIM1#

 1
45187-46010E0

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCZ2#

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCZ2#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NCZ2#

 1
Linked diagrams
8401

(0612- )

Click highlighted areas on diagram

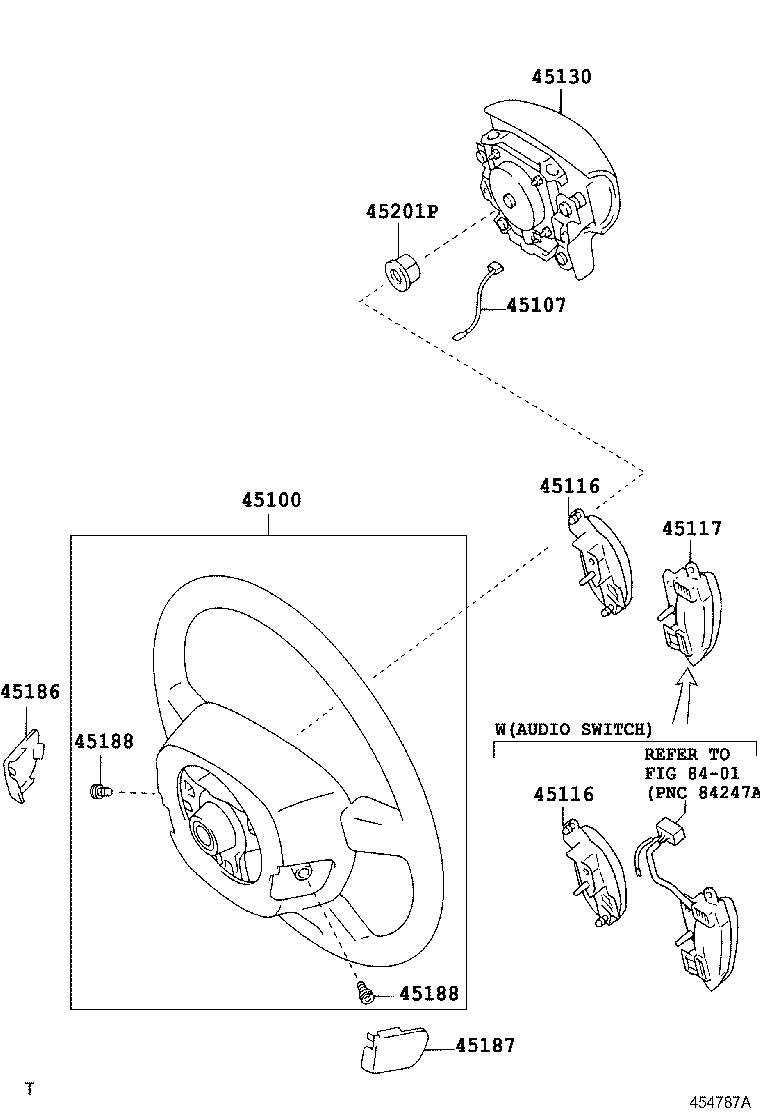

4-SPOKE

diagram 45100 45107 45116 45116 45117 45130 45186 45187 45188 45188 45201P 8401
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-46010E0

NCZ2#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MD.NEUTRAL BONE,TRIM4#

 1
45100-46020B0

NCZ2#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,S PACKAGE,MD.GRAY,TRIM1#

 1
45100-46010B0

NCZ2#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MD.GRAY,TRIM1#

 1
45100-46020E0

NCZ2#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,S PACKAGE,MD.NEUTRAL BONE,TRIM4#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-46010

NCZ2#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-46010

NCZ2#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-46010

NCZ2#

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-46010

NCZ2#

 1
45130 - BUTTON ASSY, HORN
45130-46030E0

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
45130-46030B0

NCZ2#

MD.GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-46010E0

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
45186-46010B0

NCZ2#

MD.GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-46010B0

NCZ2#

MD.GRAY,TRIM1#

 1
45187-46010E0

NCZ2#

MD.NEUTRAL BONE,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCZ2#

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCZ2#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NCZ2#

 1
Linked diagrams
8401
