NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )NCZ20

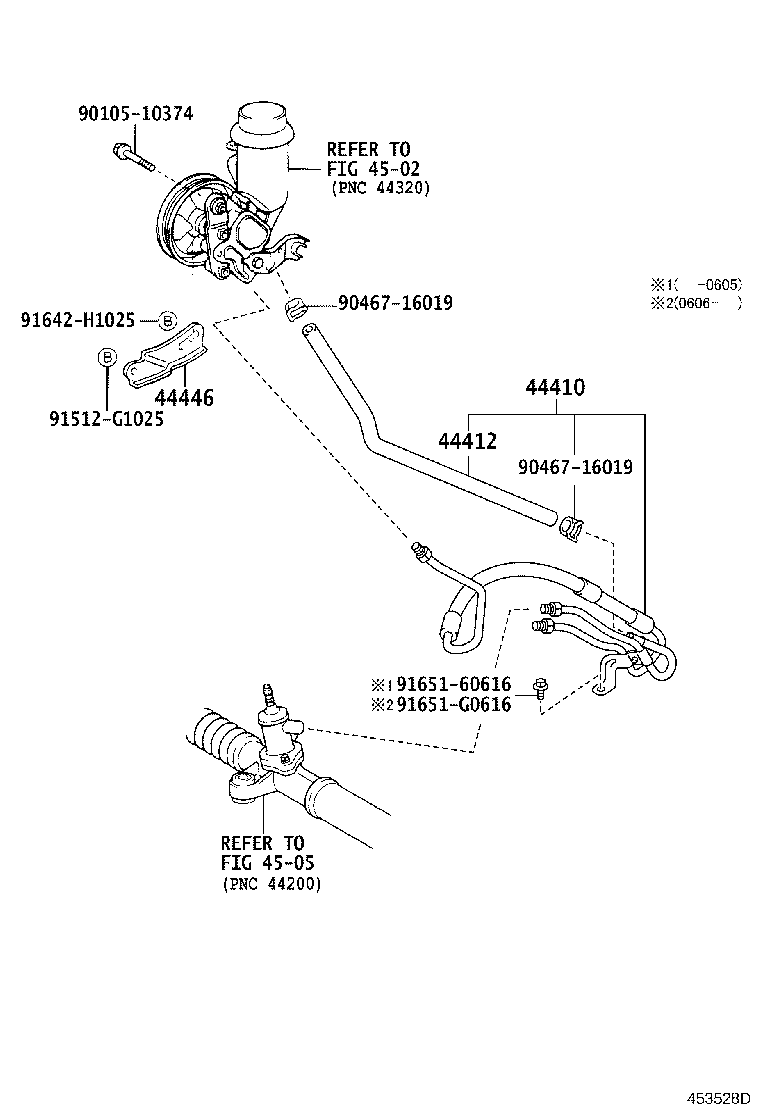

Click highlighted areas on diagram

diagram 44410 44412 44446 4502 4505 9010510374 9046716019 9046716019 91512G1025 91642H1025 9165160616 91651G0616
Part # Description Qty Price
44410 - TUBE ASSY, PRESSURE FEED
44410-52030

NCZ20

 1
44412 - HOSE, RETURN
44412-52010

NCZ20

 1
44446 - STRUT, ADJUSTING
44446-52010

NCZ2#

 1
Common parts
90105-10374
90467-16019
91512-G1025
91642-H1025
91651-60616
91651-G0616
Linked diagrams
4502
4505
