NCZ20-AHPXK (2003)
Toyota Raum
Production
Apr 2003
-
Apr 2011
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

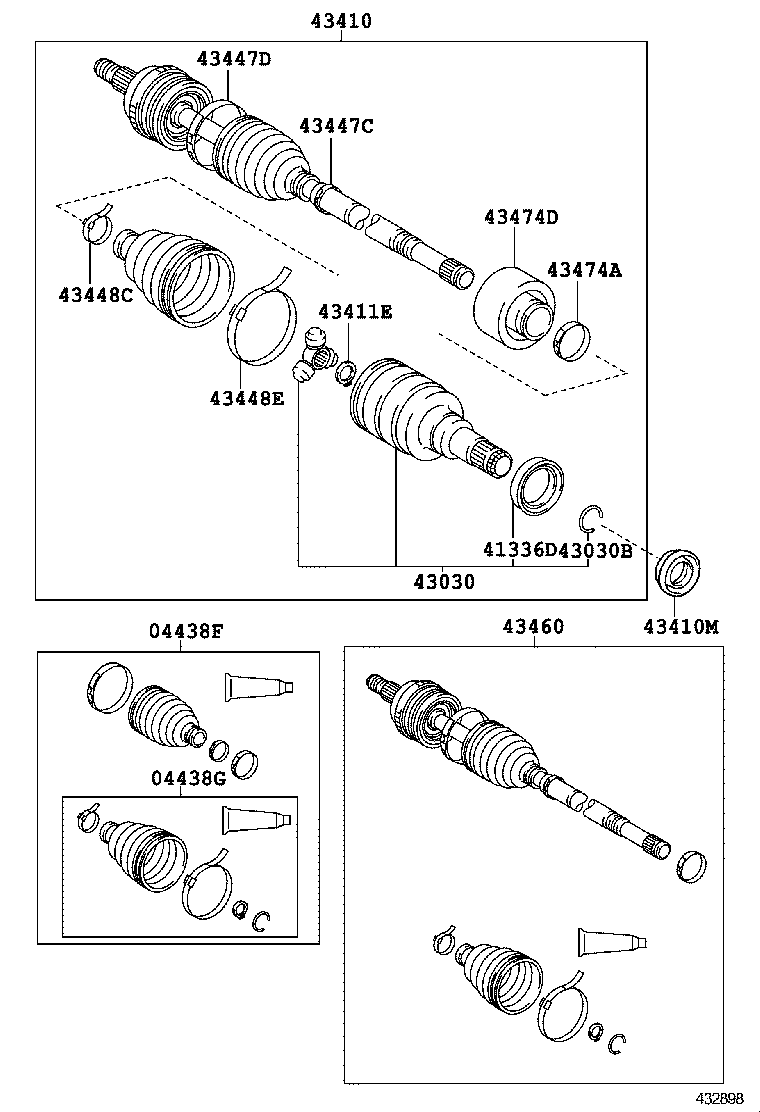

(0304- )NCZ20
Click highlighted areas on diagram
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-52890 |
NCZ20 |
1 | ||
| 04427-52671 |
NCZ20 |
1 | ||
| 04438-12502 |
NCZ20 |
1 | ||
| 04427-52580 |
NCZ20 |
1 | ||
| 04427-52891 |
NCZ20 |
1 | ||
| 04427-52260 |
NCZ20 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-52190 |
NCZ20 |
1 | ||
| 04437-52191 |
NCZ20 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
NCZ20 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-10011 |
NCZ20 |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-26004 |
NCZ20 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-52070 |
NCZ20 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-34031 |
NCZ20 |
1 | ||
| 90311-34023 |
NCZ20 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22001 |
NCZ20 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-52110 |
NCZ2# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-52100 |
NCZ2# |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
NCZ2# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01146 |
NCZ20 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-59045 |
NCZ20 |
1 | ||
| 43460-59365 |
NCZ20 |
1 | ||
| 43460-59165 |
NCZ20 |
1 | ||
| 43460-59366 |
NCZ20 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
NCZ20 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-52030 |
NCZ20 |
1 | ||

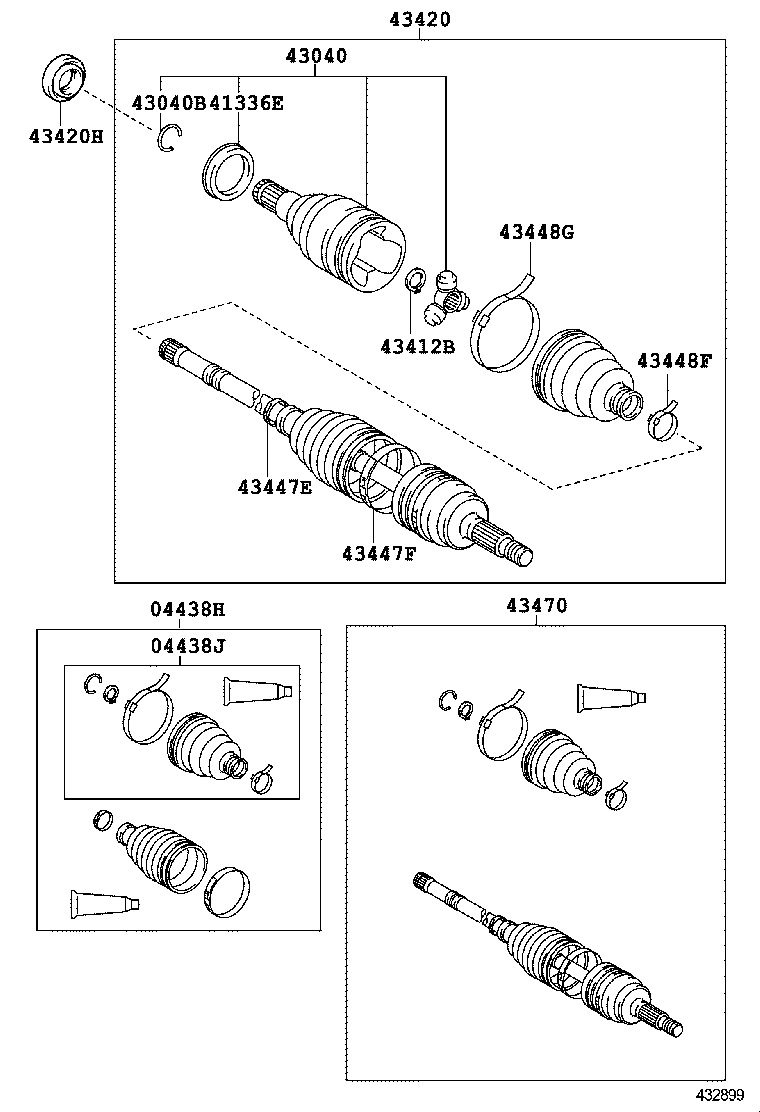

(0304- )NCZ20
Click highlighted areas on diagram
ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-52260 |
NCZ20 |
1 | ||
| 04427-52580 |
NCZ20 |
1 | ||
| 04427-52890 |
NCZ20 |
1 | ||
| 04427-52891 |
NCZ20 |
1 | ||
| 04438-12502 |
NCZ20 |
1 | ||
| 04427-52671 |
NCZ20 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-52190 |
NCZ20 |
1 | ||
| 04437-52191 |
NCZ20 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12010 |
NCZ2# |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-10011 |
NCZ20 |
1 | ||
| 43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) | ||||
| 90521-26004 |
NCZ2# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22001 |
NCZ20 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-52070 |
NCZ20 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-34022 |
NCZ2# |
1 | ||
| 90311-34030 |
NCZ2# |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-52110 |
NCZ2# |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-52100 |
NCZ2# |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
NCZ2# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01146 |
NCZ20 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-59155 |
NCZ20 |
1 | ||
| 43470-59045 |
NCZ20 |
1 | ||
| 43470-59456 |
NCZ20 |
1 | ||
| 43470-59455 |
NCZ20 |
1 | ||
