NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

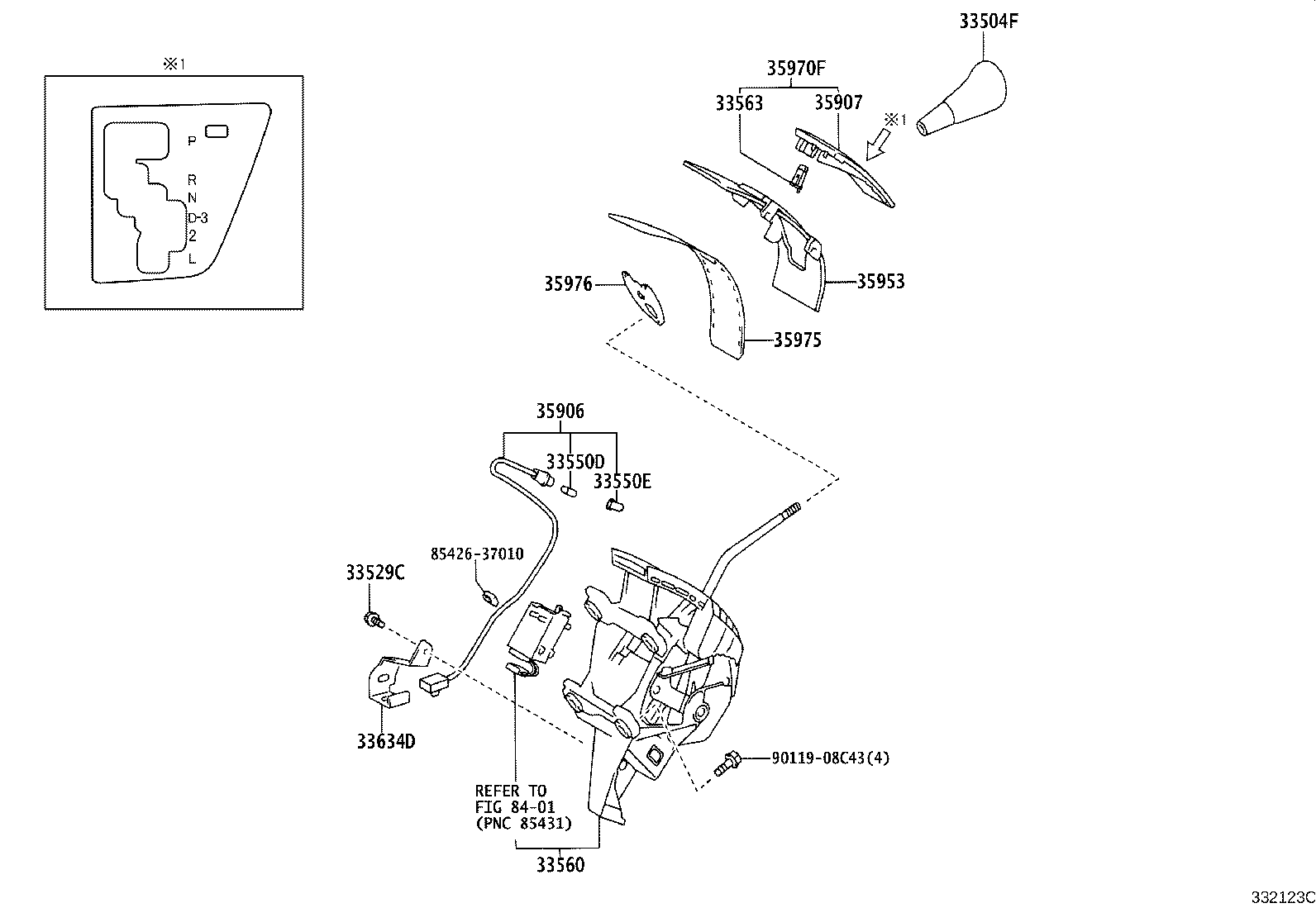

ILLUST NO. 1 OF 2(0304- )

Click highlighted areas on diagram

diagram 33504F 33529C 33550D 33550E 33560 33563 33634D 35906 35907 35953 35970F 35975 35976 8401 8542637010 9011908C43
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-46010C0

NCZ2#

BLACK,TRIM1#

 1
33504-46010E0

NCZ2#

ORCHID BROWN,TRIM4#

 1
33529C - BOLT, SHIFT LEVER
33529-52010

NCZ2#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11040

NCZ2#

12V 2W

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-58010

NCZ2#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-46010

NCZ2#

 1
33560-46011

NCZ2#

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-46010

NCZ2#

 1
33563-46010

NCZ2#

 1
33634D - BRACKET, SHIFT LEVER HARNESS CONNECTOR
33634-58010

NCZ2#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-58010

NCZ2#

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-46010

NCZ2#

 1
35907-46011

NCZ2#

 1
35907-46020

NCZ2#

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-46010

NCZ2#

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-46010

NCZ2#

 1
35970-46020

NCZ2#

 1
35970-46011

NCZ2#

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-58010

NCZ2#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-58010

NCZ2#

 1
Common parts
85426-37010
90119-08C43
Linked diagrams
8401

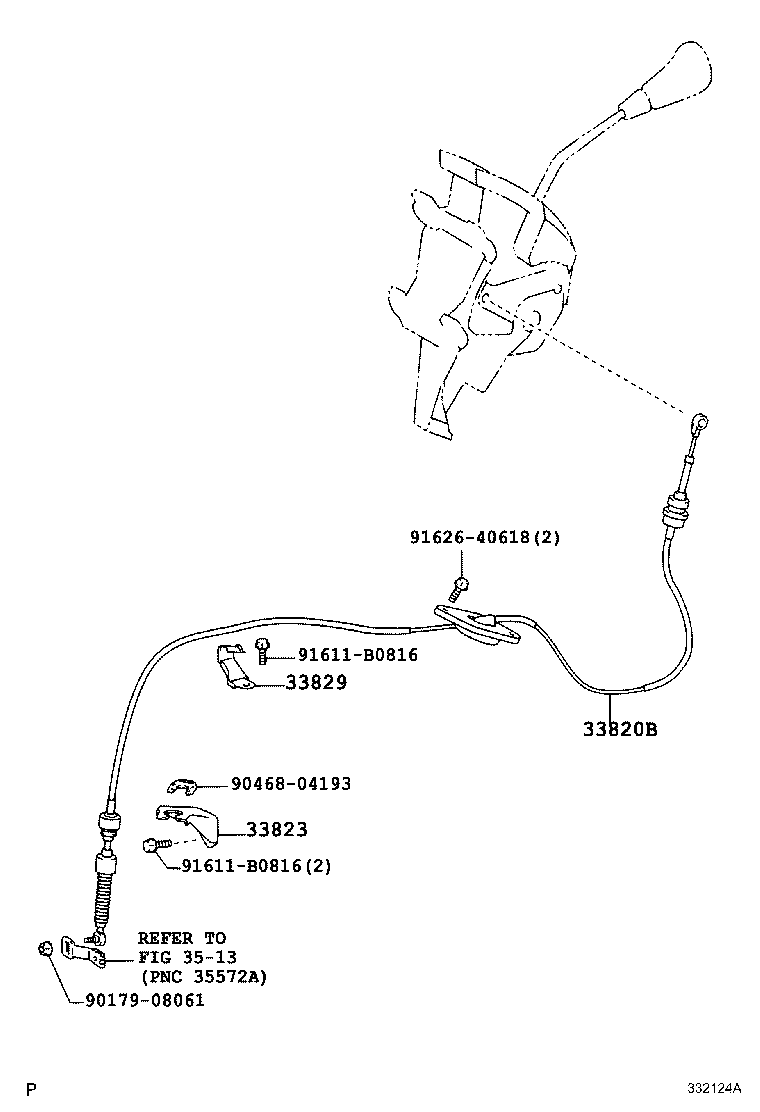

ILLUST NO. 2 OF 2(0304- )

Click highlighted areas on diagram

diagram 33820B 33823 33829 3513 9017908061 9046804193 91611B0816 91611B0816 9162640618
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-46050

NCZ2#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12200

NCZ2#

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-46020

NCZ2#

 1
Common parts
90179-08061
90468-04193
91611-B0816
91626-40618
Linked diagrams
3513
