NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0304- )

Click highlighted areas on diagram

diagram 7701
Part # Description Qty Price
Linked diagrams
7701

ILLUST NO. 1 OF 2(0304- )

Click highlighted areas on diagram

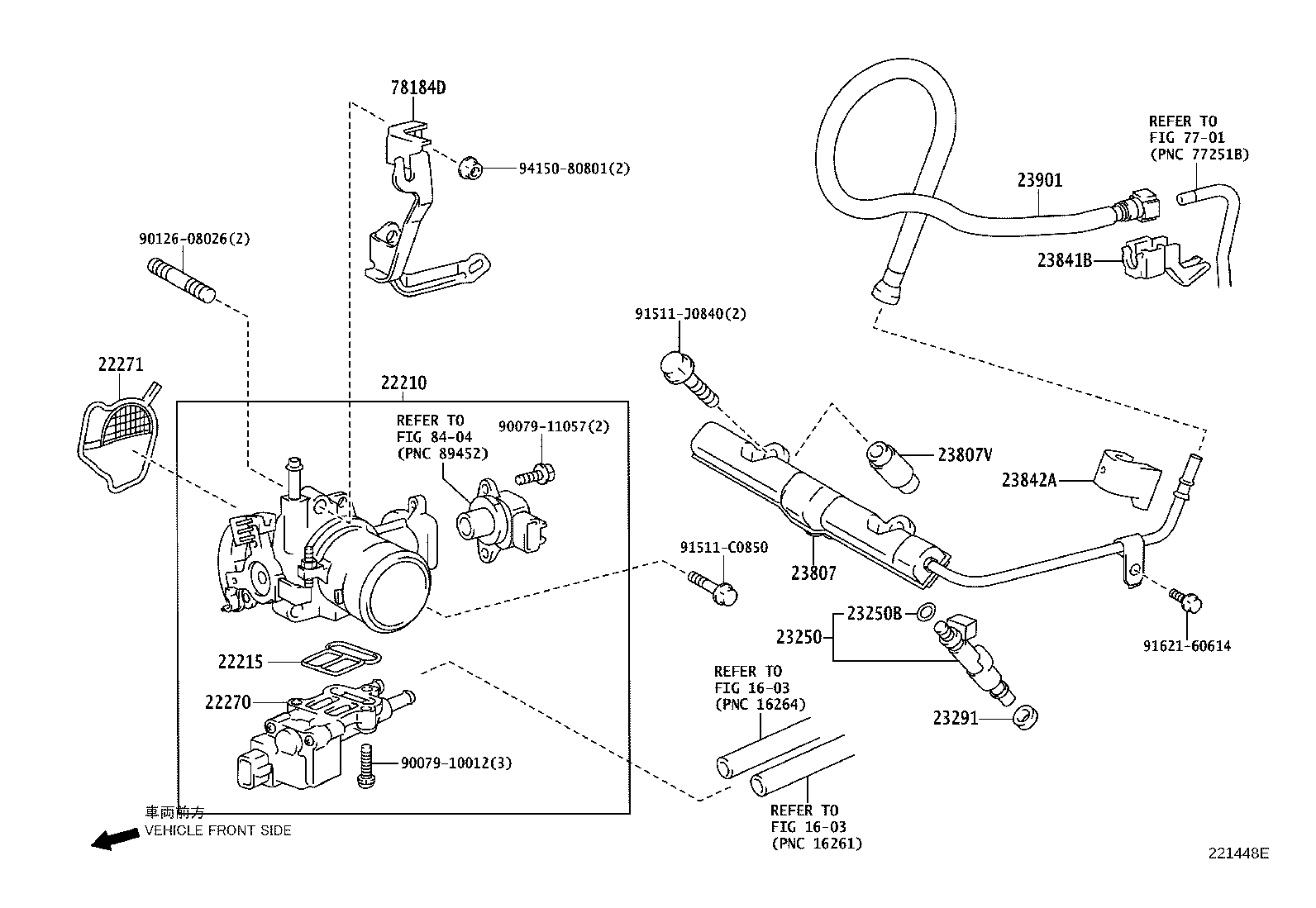

diagram 1603 1603 22210 22215 22270 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 78184D 8404 9007910012 9007911057 9012608026 91511C0850 91511J0840 9162160614 9415080801
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-21010

1NZFE..NCZ2#

 1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680

1NZFE..NCZ2#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-21011

1NZFE..NCZ2#

 1
22271 - GASKET, THROTTLE BODY
22271-21050

1NZFE..NCZ2#

 1
23250 - INJECTOR ASSY, FUEL
23209-21020

1NZFE..NCZ2#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

1NZFE..NCZ2#

 4
90301-07037

1NZFE..NCZ2#

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1NZFE..NCZ2#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-21021

1NZFE..NCZ2#

 1
23807-21010

1NZFE..NCZ2#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-21010

1NZFE..NCZ2#

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

1NZFE..NCZ2#

 1
23841-28010

1NZFE..NCZ2#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

1NZFE..NCZ2#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-21060

1NZFE..NCZ2#

 1
78184D - BRACKET, ACCELERATOR CONTROL CABLE
78184-52011

NCZ2#

 1
Common parts
90079-10012
90079-11057
90126-08026
91511-C0850
91511-J0840
91621-60614
94150-80801
Linked diagrams
1603
7701
8404
