NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )1NZFE..NCZ20

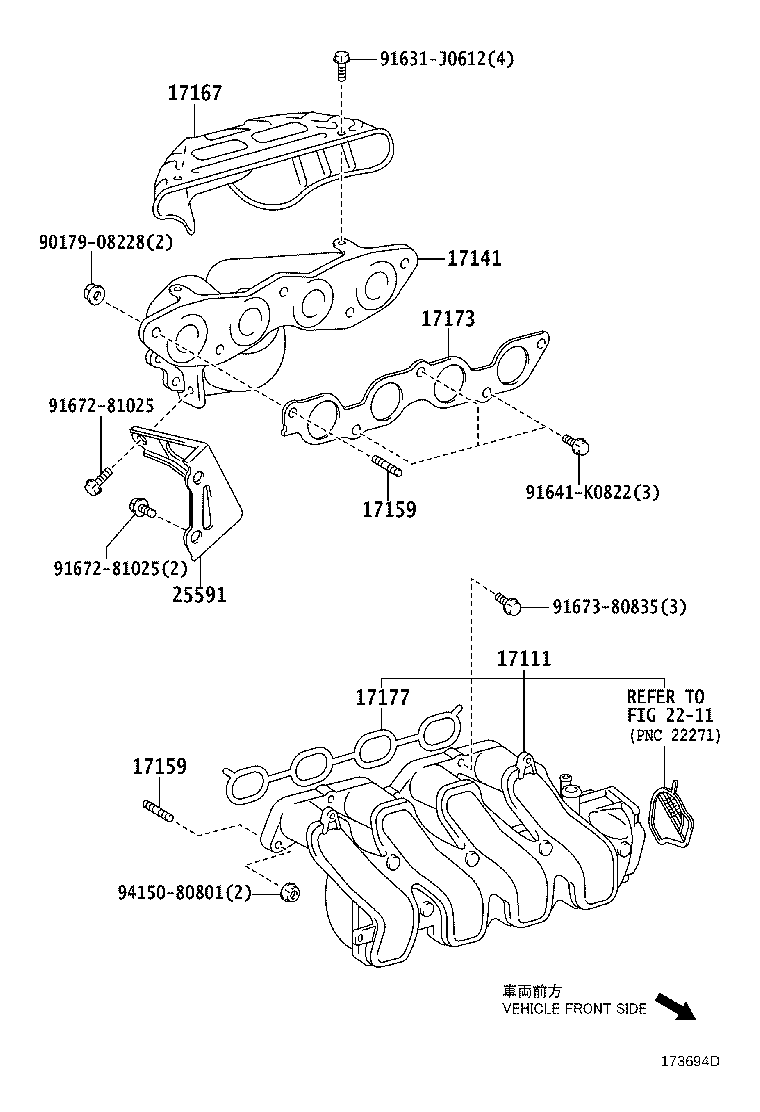

Click highlighted areas on diagram

diagram 17111 17141 17159 17159 17167 17173 17177 2211 25591 9017908228 91631J0612 91641K0822 9167281025 9167281025 9167380835 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-21020

1NZFE..NCZ2#

 1
17141 - MANIFOLD, EXHAUST
17141-21090

1NZFE..NCZ20

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037

1NZFE..NCZ2#

ｴｷｿﾞｰｽﾄ側

 2
90126-08026

1NZFE..NCZ2#

ｲﾝﾃｰｸ側

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037

1NZFE..NCZ2#

ｴｷｿﾞｰｽﾄ側

 2
90126-08026

1NZFE..NCZ2#

ｲﾝﾃｰｸ側

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21060

1NZFE..NCZ20

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21020

1NZFE..NCZ2#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21020

1NZFE..NCZ2#

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-21020

1NZFE..NCZ20

 1
Common parts
90179-08228
91631-J0612
91641-K0822
91672-81025
91673-80835
94150-80801
Linked diagrams
2211
