NCZ20-AHPXK (2003)

Toyota Raum

Production Apr 2003 - Apr 2011
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )1NZFE..NCZ20

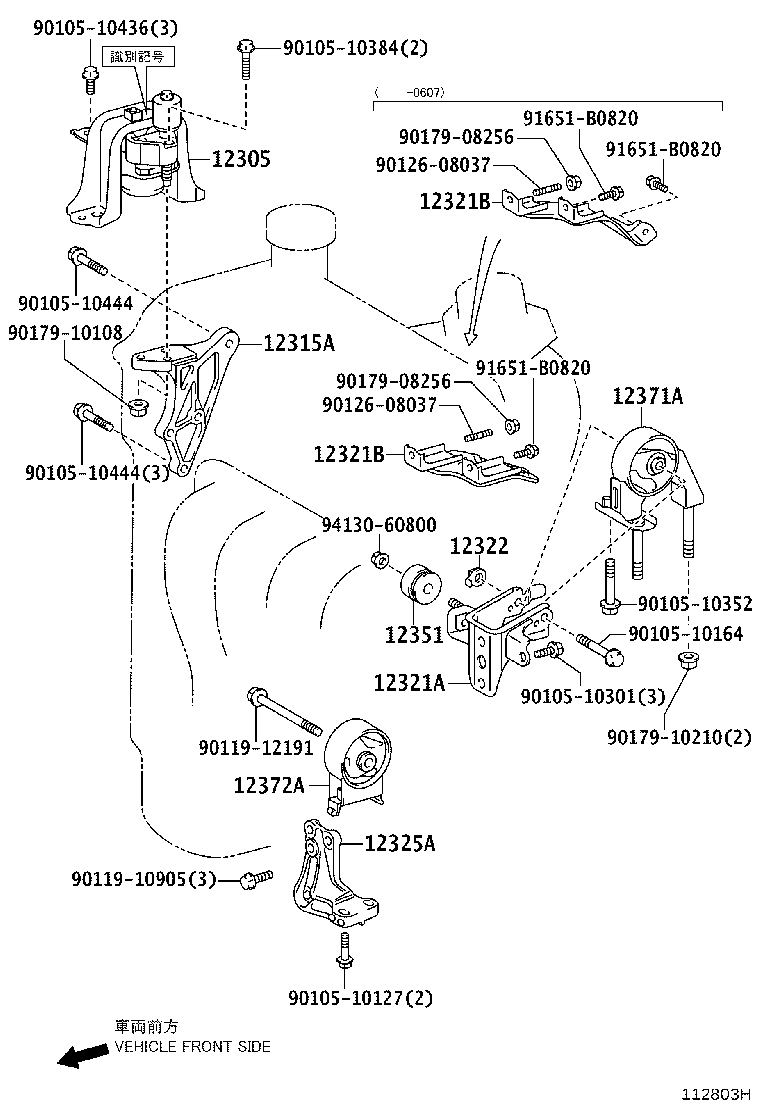

Click highlighted areas on diagram

diagram 12305 12315A 12321A 12321B 12321B 12322 12325A 12351 12371A 12372A 9010510127 9010510164 9010510301 9010510352 9010510384 9010510436 9010510444 9010510444 9011910905 9011912191 9012608037 9012608037 9017908256 9017908256 9017910108 9017910210 91651B0820 91651B0820 91651B0820 9413060800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21060

1NZFE..NCZ20

識別記号 = 3

 1
12305-21061

1NZFE..NCZ20

識別記号 = A3

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21043

1NZFE..NCZ2#

 1
12315-21042

1NZFE..NCZ2#

 1
12315-21040

1NZFE..NCZ2#

 1
12315-21041

1NZFE..NCZ2#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-21150

1NZFE..NCZ20

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52020

1NZFE..NCZ20

 1
43409-52010

1NZFE..NCZ20

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52020

1NZFE..NCZ20

 1
43409-52010

1NZFE..NCZ20

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-23020

1NZFE..NCZ20

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21060

1NZFE..NCZ20

 1
12351 - DAMPER, ENGINE MOUNTING
12351-23010

1NZFE..NCZ20

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-21140

1NZFE..NCZ20

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-21060

1NZFE..NCZ20

 1
12372-23050

1NZFE..NCZ20

 1
Common parts
90105-10127
90105-10164
90105-10301
90105-10352
90105-10384
90105-10436
90105-10444
90119-10905
90119-12191
90126-08037
90179-08256
90179-10108
90179-10210
91651-B0820
94130-60800
