EXZ15-AHSXK (1997)

Toyota Raum

Production Aug 1997 - Apr 2003
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )EXZ15

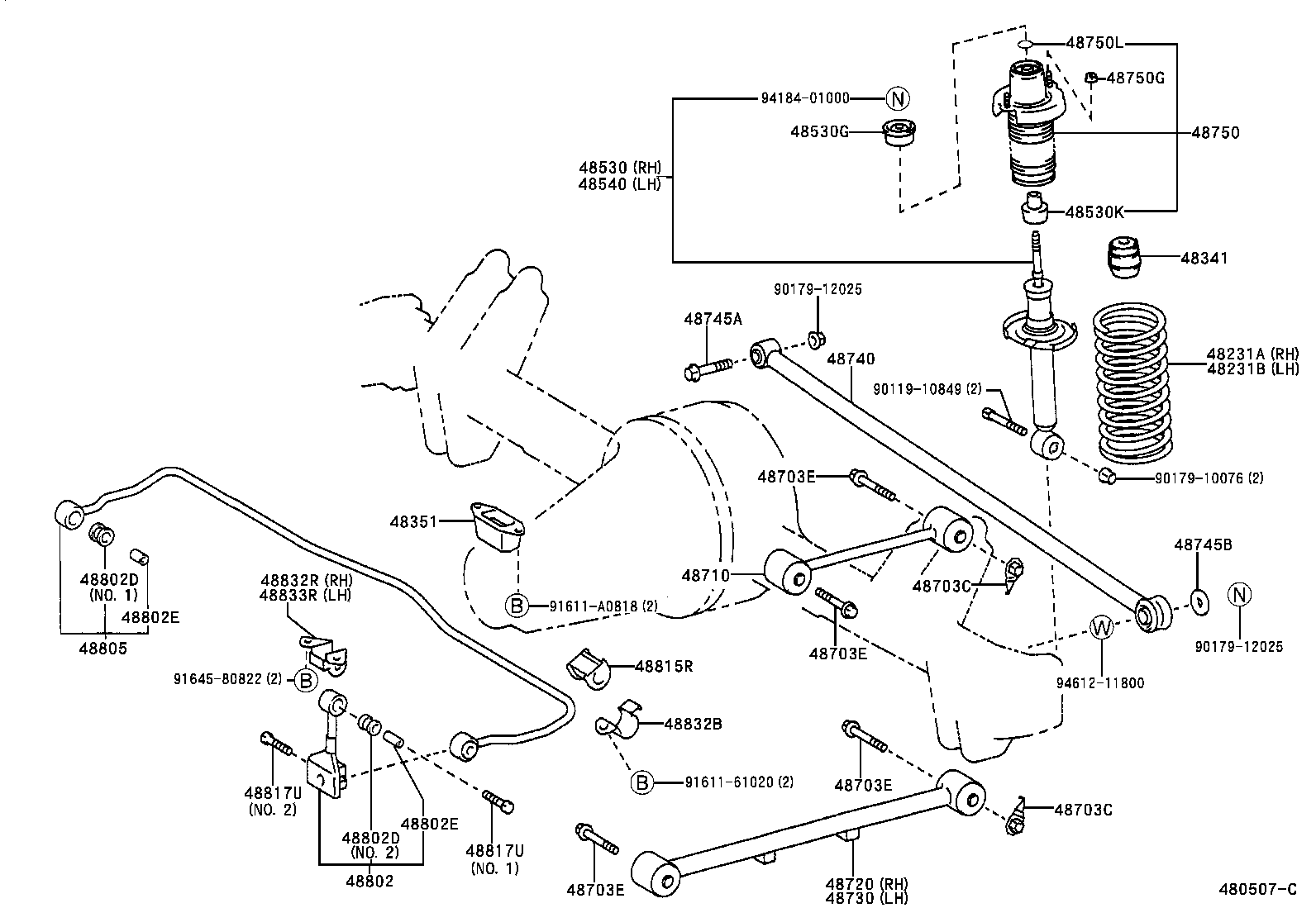

Click highlighted areas on diagram

diagram 48231A 48231B 48341 48351 48530 48530G 48530K 48540 48703C 48703C 48703E 48703E 48703E 48703E 48710 48720 48730 48740 48745A 48745B 48750 48750G 48750L 48802 48802D 48802D 48802E 48802E 48805 48815R 48817U 48817U 48832B 48832R 48833R 9011910849 9017910076 9017912025 9017912025 9161161020 91611A0818 9164580822 9418401000 9461211800
Part # Description Qty Price
48231A - SPRING, COIL, REAR RH
48231-46020

EXZ15

 1
48231B - SPRING, COIL, REAR LH
48231-46020

EXZ15

 1
48341 - BUMPER, REAR SPRING
48341-10111

EXZ15

 2
48351 - BUMPER, DIFFERENTIAL CARRIER
48351-12020

EXZ15

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-49095

EXZ15

ﾏｰｸ 48530−46020

 1
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01051

EXZ15

 2
48530K - CUSHION, REAR SHOCK ABSORBER, NO.2
90948-01052

EXZ15

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-49095

EXZ15

ﾏｰｸ 48530−46020

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12092

EXZ15

 4
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12092

EXZ15

 4
48703E - BOLT(FOR REAR SUSPENSION ARM)
90119-12099

EXZ15

*12−1.25PX75−20

 8
48703E - BOLT(FOR REAR SUSPENSION ARM)
90119-12099

EXZ15

*12−1.25PX75−20

 8
48703E - BOLT(FOR REAR SUSPENSION ARM)
90119-12099

EXZ15

*12−1.25PX75−20

 8
48703E - BOLT(FOR REAR SUSPENSION ARM)
90119-12099

EXZ15

*12−1.25PX75−20

 8
48710 - ARM ASSY, UPPER CONTROL
48710-16060

EXZ15

 2
48720 - ARM ASSY, LOWER CONTROL, RH
48720-16050

EXZ15

 1
48730 - ARM ASSY, LOWER CONTROL, LH
48720-16050

EXZ15

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-16100

EXZ15

 1
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-12070

EXZ1#

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12037

EXZ1#

 1
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-46010

EXZ15

 2
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08122

EXZ15

 4
48750L - RING, O(FOR REAR SUSPENSION SUPPORT)
96711-24063

EXZ15

 2
48802 - LINK SUB-ASSY, STABILIZER
48803-16010

EXZ15

左側

 1
48802-16010

EXZ15

右側

 1
48802-52040

EXZ15

右側

 1
48803-52010

EXZ15

左側

 1
48802D - BUSH, STABILIZER LINK
90385-11014

EXZ15

 4
90385-13012

EXZ15

NO.1

 2
90385-11014

EXZ15

NO.2

 2
90385-13011

EXZ15

NO.2

 2
90385-11025

EXZ15

NO.1

 2
48802D - BUSH, STABILIZER LINK
90385-11014

EXZ15

 4
90385-13012

EXZ15

NO.1

 2
90385-11014

EXZ15

NO.2

 2
90385-13011

EXZ15

NO.2

 2
90385-11025

EXZ15

NO.1

 2
48802E - SPACER(FOR REAR STABILIZER BAR)
90560-10044

EXZ15

 4
90560-10275

EXZ15

 4
48802E - SPACER(FOR REAR STABILIZER BAR)
90560-10044

EXZ15

 4
90560-10275

EXZ15

 4
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-52011

EXZ15

 1
48805-10010

EXZ15

 1
48805-52012

EXZ15

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-20021

EXZ15

 2
48817U - BOLT(FOR REAR STABILIZER)
91111-41040

EXZ15

NO.1 & NO.2

 4
91111-41040

EXZ15

NO.2

 2
91112-61045

EXZ15

NO.1

 2
90119-10930

EXZ15

 4
48817U - BOLT(FOR REAR STABILIZER)
91111-41040

EXZ15

NO.1 & NO.2

 4
91111-41040

EXZ15

NO.2

 2
91112-61045

EXZ15

NO.1

 2
90119-10930

EXZ15

 4
48832B - BRACKET, REAR STABILIZER BAR, NO.2
48832-22020

EXZ15

 2
48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH
48832-52020

EXZ15

 1
48832-16030

EXZ15

 1
48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH
48833-16010

EXZ15

 1
48833-52010

EXZ15

 1
Common parts
90119-10849
90179-10076
90179-12025
91611-61020
91611-A0818
91645-80822
94184-01000
94612-11800
