EXZ15-AHSSK (1999)

Toyota Raum

Production Jul 1999 - Apr 2003
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

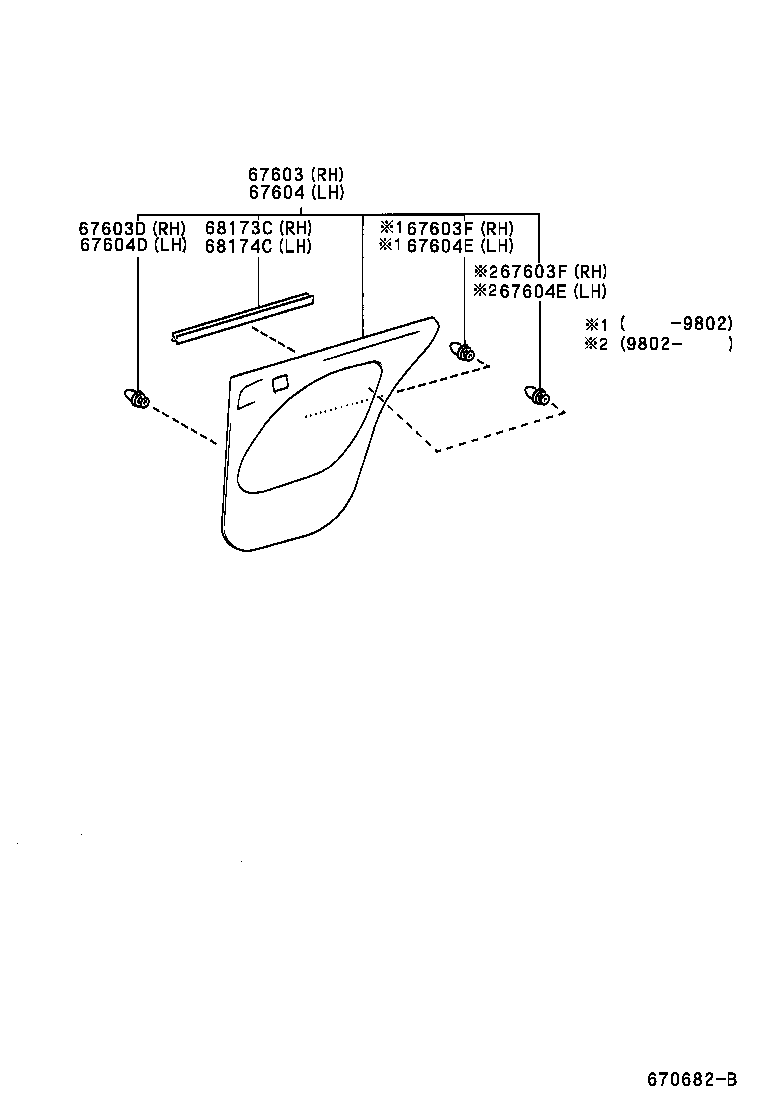

ILLUST NO. 1 OF 2(9705-0208)

Click highlighted areas on diagram

diagram 67603 67603D 67603F 67603F 67604 67604D 67604E 67604E 68173C 68174C
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-46010B1

EXZ1#

ﾄﾘﾑ = TYPE B-*104,MD. MOON MIST,TRIM1#

 1
67630-46030B2

EXZ1#..PB

ﾄﾘﾑ = TYPE H-*104,DK.GRAY,TRIM1#

 1
67630-46010B0

EXZ1#

ﾄﾘﾑ = TYPE A-*104,MD. MOON MIST,TRIM1#

 1
67603D - RETAINER, REAR DOOR TRIM, RH
67771-16120

EXZ1#

 6
90467-10161

EXZ1#

 5
67603F - RETAINER, REAR DOOR TRIM, NO.2 RH
67771-12050

EXZ1#

 1
90467-10161

EXZ1#

 1
67771-12050

EXZ1#

 1
67603F - RETAINER, REAR DOOR TRIM, NO.2 RH
67771-12050

EXZ1#

 1
90467-10161

EXZ1#

 1
67771-12050

EXZ1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-46010B0

EXZ1#

ﾄﾘﾑ = TYPE A-*104,MD. MOON MIST,TRIM1#

 1
67640-46010B1

EXZ1#

ﾄﾘﾑ = TYPE B-*104,MD. MOON MIST,TRIM1#

 1
67640-46030B2

EXZ1#..PB

ﾄﾘﾑ = TYPE H-*104,DK.GRAY,TRIM1#

 1
67604D - RETAINER, REAR DOOR TRIM, LH
67771-16120

EXZ1#

 6
90467-10161

EXZ1#

 5
67604E - RETAINER, REAR DOOR TRIM, NO.2 LH
67771-12050

EXZ1#

 1
67771-12050

EXZ1#

 1
90467-10161

EXZ1#

 1
67604E - RETAINER, REAR DOOR TRIM, NO.2 LH
67771-12050

EXZ1#

 1
67771-12050

EXZ1#

 1
90467-10161

EXZ1#

 1
68173C - WEATHERSTRIP, SLIDE DOOR GLASS, INNER RH
68173-46010

EXZ1#

 1
68174C - WEATHERSTRIP, SLIDE DOOR GLASS, INNER LH
68174-46010

EXZ1#

 1

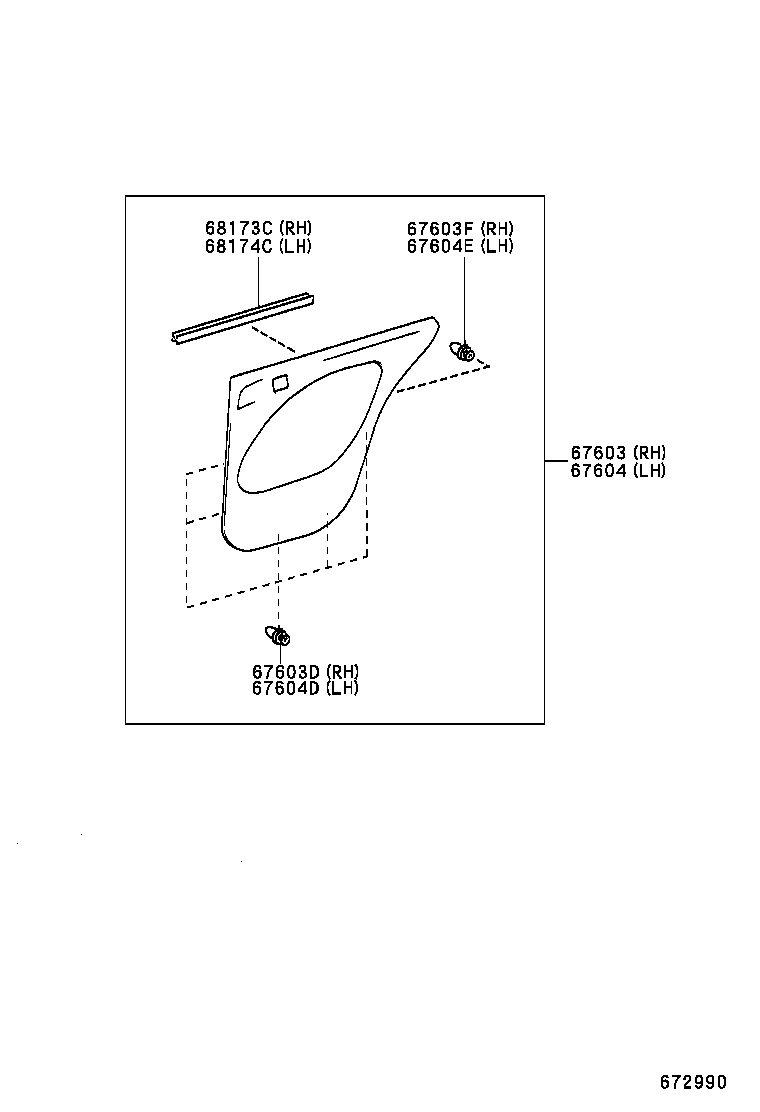

ILLUST NO. 1 OF 2(0208- )

Click highlighted areas on diagram

diagram 67603 67603D 67603F 67604 67604D 67604E 68173C 68174C
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-46010B1

EXZ1#

ﾄﾘﾑ = TYPE B-*104,MD. MOON MIST,TRIM1#

 1
67630-46030B2

EXZ1#..PB

ﾄﾘﾑ = TYPE H-*104,DK.GRAY,TRIM1#

 1
67630-46010B0

EXZ1#

ﾄﾘﾑ = TYPE A-*104,MD. MOON MIST,TRIM1#

 1
67603D - RETAINER, REAR DOOR TRIM, RH
67771-16120

EXZ1#

 6
90467-10161

EXZ1#

 5
67603F - RETAINER, REAR DOOR TRIM, NO.2 RH
67771-12050

EXZ1#

 1
90467-10161

EXZ1#

 1
67771-12050

EXZ1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-46010B0

EXZ1#

ﾄﾘﾑ = TYPE A-*104,MD. MOON MIST,TRIM1#

 1
67640-46010B1

EXZ1#

ﾄﾘﾑ = TYPE B-*104,MD. MOON MIST,TRIM1#

 1
67640-46030B2

EXZ1#..PB

ﾄﾘﾑ = TYPE H-*104,DK.GRAY,TRIM1#

 1
67604D - RETAINER, REAR DOOR TRIM, LH
67771-16120

EXZ1#

 6
90467-10161

EXZ1#

 5
67604E - RETAINER, REAR DOOR TRIM, NO.2 LH
67771-12050

EXZ1#

 1
67771-12050

EXZ1#

 1
90467-10161

EXZ1#

 1
68173C - WEATHERSTRIP, SLIDE DOOR GLASS, INNER RH
68173-46010

EXZ1#

 1
68174C - WEATHERSTRIP, SLIDE DOOR GLASS, INNER LH
68174-46010

EXZ1#

 1
