EXZ10-AHSXK (1997)

Toyota Raum

Production May 1997 - Apr 2003
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9705- )

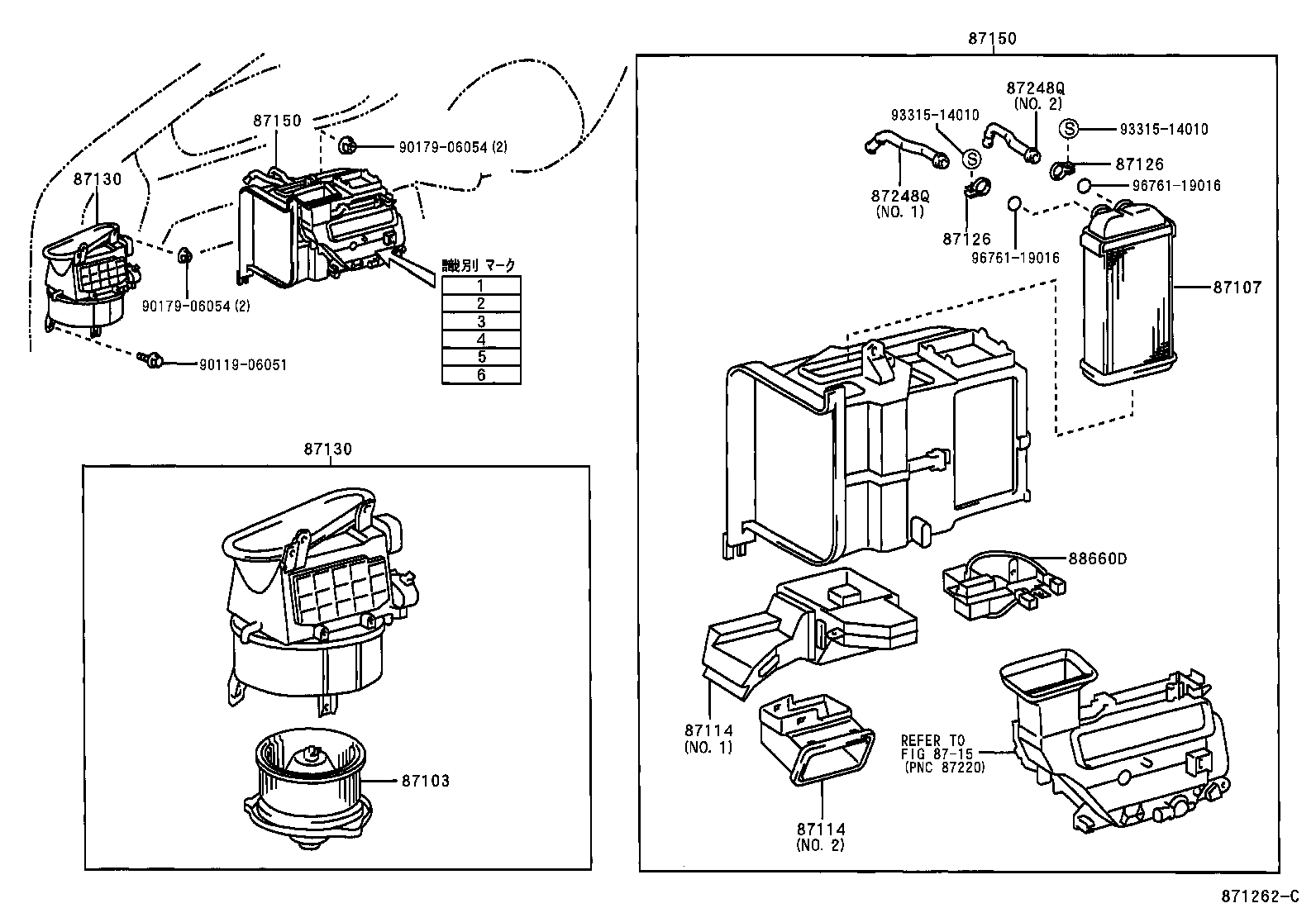

Click highlighted areas on diagram

diagram 87103 87107 87114 87114 87126 87126 87130 87130 8715 87150 87150 87248Q 87248Q 88660D 9011906051 9017906054 9017906054 9331514010 9331514010 9676119016 9676119016
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-17010

EXZ1#

 1
87103-42010

EXZ1#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-10340

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-42050

EXZ1#

 1
87114 - COVER, HEATER
87114-46010

EXZ1#

 1
87114-46020

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.1

 1
87114-46030

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.2

 1
87114 - COVER, HEATER
87114-46010

EXZ1#

 1
87114-46020

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.1

 1
87114-46030

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.2

 1
87126 - CLAMP, HEATER CONTROL
87124-35040

EXZ1#

 2
87126 - CLAMP, HEATER CONTROL
87124-35040

EXZ1#

 2
87130 - BLOWER ASSY, HEATER, FRONT
87130-46010

EXZ1#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-46010

EXZ1#

 1
87150 - RADIATOR ASSY, HEATER
87150-46020

EXZ1#

ﾕｷｸﾞﾆ ｼﾖｳ,ﾏｰｸ 2

 1
87150-46030

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87150-46040

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾏｰｸ 4

 1
87150-46030

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,ﾏｰｸ 3

 1
87150-46060

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ｶﾝﾚｲﾁ ｼﾖｳ

 1
87150-46050

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ﾕｷｸﾞﾆ ｼﾖｳ,ﾏｰｸ 5

 1
87150-46020

EXZ1#

ﾕｷｸﾞﾆ ｼﾖｳ

 1
87150-46010

EXZ1#

ﾏｰｸ 1

 1
87150-46060

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ｶﾝﾚｲﾁ ｼﾖｳ,ﾏｰｸ 6

 1
87150-46010

EXZ1#

 1
87150-46050

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ﾕｷｸﾞﾆ ｼﾖｳ

 1
87150-46040

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
87150 - RADIATOR ASSY, HEATER
87150-46020

EXZ1#

ﾕｷｸﾞﾆ ｼﾖｳ,ﾏｰｸ 2

 1
87150-46030

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87150-46040

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ),ﾏｰｸ 4

 1
87150-46030

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,ﾏｰｸ 3

 1
87150-46060

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ｶﾝﾚｲﾁ ｼﾖｳ

 1
87150-46050

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ﾕｷｸﾞﾆ ｼﾖｳ,ﾏｰｸ 5

 1
87150-46020

EXZ1#

ﾕｷｸﾞﾆ ｼﾖｳ

 1
87150-46010

EXZ1#

ﾏｰｸ 1

 1
87150-46060

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ｶﾝﾚｲﾁ ｼﾖｳ,ﾏｰｸ 6

 1
87150-46010

EXZ1#

 1
87150-46050

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ) & ﾕｷｸﾞﾆ ｼﾖｳ

 1
87150-46040

EXZ1#

ｱﾘ(ｵ-ﾄｴｱｺﾝ)

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-46010

EXZ1#

NO.1

 1
87156-46030

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.1

 1
87156-46020

EXZ1#

NO.2

 1
87156-46040

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.2

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-46010

EXZ1#

NO.1

 1
87156-46030

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.1

 1
87156-46020

EXZ1#

NO.2

 1
87156-46040

EXZ1#

ｶﾝﾚｲﾁ ｼﾖｳ,NO.2

 1
88660D - SERVO ASSY, AIR CONDITIONER
88660-46010

EXZ1#

 1
Common parts
90119-06051
90179-06054
93315-14010
96761-19016
Linked diagrams
8715
