EXZ10-AHSXK (1997)
Toyota Raum
Production
May 1997
-
Apr 2003
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9705- )

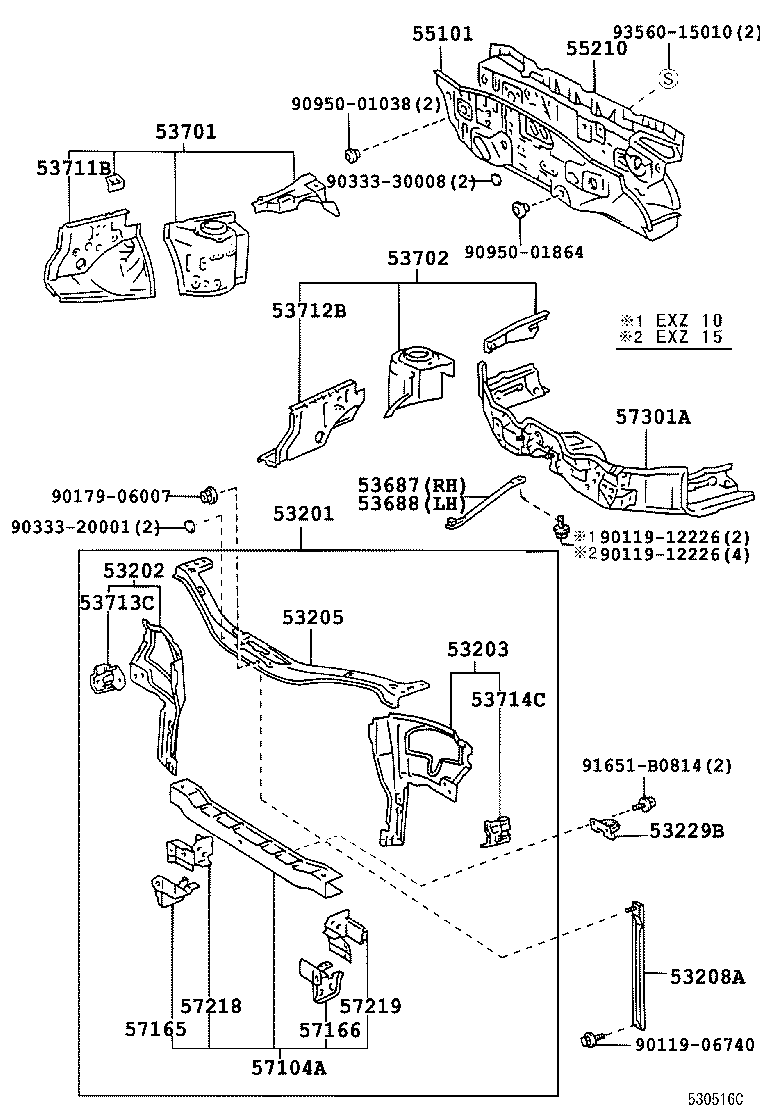

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-46010 |
EXZ10 |
1 | ||
| 53201-46011 |
EXZ1# |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-46010 |
EXZ1# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-46010 |
EXZ1# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-46010 |
EXZ1# |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-46011 |
EXZ1# |
1 | ||
| 53229B - BRACKET, RADIATOR MOUNTING, LOWER NO.2 | ||||
| 53229-16040 |
EXZ1# |
1 | ||
| 53687 - BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH | ||||
| 53687-10030 |
EXZ1# |
1 | ||
| 53688 - BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH | ||||
| 53687-10030 |
EXZ1# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-46010 |
EXZ1# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-46010 |
EXZ1# |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53707-46010 |
EXZ1# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53708-46010 |
EXZ1# |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-46010 |
EXZ1# |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-46010 |
EXZ1# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-46030 |
EXZ1# |
1 | ||
| 55101-46020 |
EXZ1# |
1 | ||
| 55101-46040 |
EXZ10 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-46010 |
EXZ1# |
1 | ||
| 55210-46020 |
EXZ1# |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-16071 |
EXZ1# |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-16020 |
EXZ1# |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-16010 |
EXZ1# |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-16031 |
EXZ1# |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-16031 |
EXZ1# |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-46010 |
EXZ10 |
1 | ||
| Common parts | ||||
| 90119-06740 | ||||
| 90119-12226 | ||||
| 90179-06007 | ||||
| 90333-20001 | ||||
| 90333-30008 | ||||
| 90950-01038 | ||||
| 90950-01864 | ||||
| 91651-B0814 | ||||
| 93560-15010 | ||||
