EXZ10-AHSXK (1997)
Toyota Raum
Production
May 1997
-
Apr 2003
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9705- )

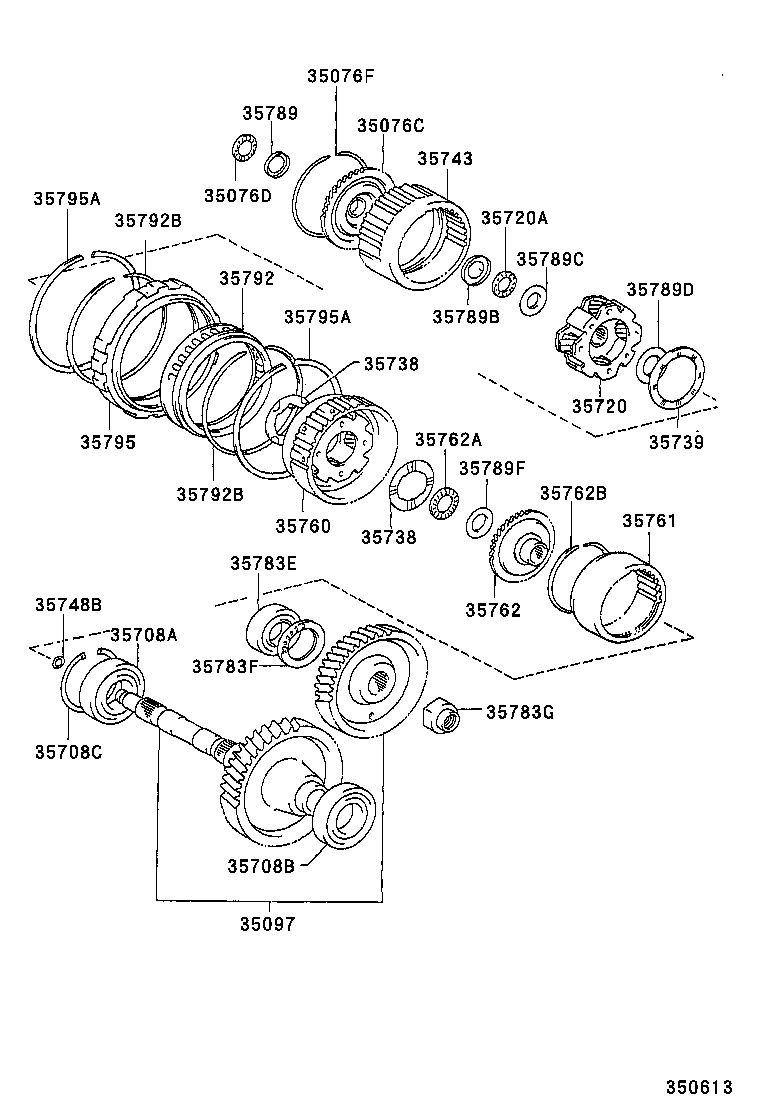

Click highlighted areas on diagram
A244L,A244F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR | ||||
| 35076-32030 |
EXZ10 |
1 | ||
| 35076-32011 |
EXZ1# |
1 | ||
| 35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANG | ||||
| 90374-22001 |
EXZ1# |
1 | ||
| 90374-22001 |
EXZ10 |
1 | ||
| 90374-22005 |
EXZ1# |
1 | ||
| 35076F - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE) | ||||
| 90521-99014 |
EXZ1# |
1 | ||
| 35097 - COUNTER GEAR KIT, AUTOMATIC TRANSAXLE | ||||
| 35097-16010 |
EXZ1# |
1 | ||
| 35708A - BEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT FRONT) | ||||
| 90363-40024 |
EXZ1# |
1 | ||
| 35708B - BEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT REAR) | ||||
| 90363-40024 |
EXZ1# |
1 | ||
| 35708C - RING, HOLE SNAP (FOR INTERMEDIATE SHAFT FRONT BEARING) | ||||
| 90521-76003 |
EXZ1# |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-12030 |
EXZ10 |
1 | ||
| 35720-32010 |
EXZ1# |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-22001 |
EXZ1# |
1 | ||
| 90374-22005 |
EXZ1# |
1 | ||
| 90374-22001 |
EXZ10 |
1 | ||
| 90374-22009 |
EXZ1# |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-12010 |
EXZ10 |
2 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-12010 |
EXZ10 |
2 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-32011 |
EXZ1# |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-32040 |
EXZ1# |
1 | ||
| 35748B - RING, INTERMEDIATE SHAFT OIL SEAL | ||||
| 35748-32010 |
EXZ1# |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-12020 |
EXZ10 |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-32010 |
EXZ1# |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-32010 |
EXZ1# |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-24002 |
EXZ1# |
1 | ||
| 35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90521-90001 |
EXZ1# |
1 | ||
| 35783E - BEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR) | ||||
| 90365-37001 |
EXZ1# |
1 | ||
| 35783F - BEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR) | ||||
| 90374-41001 |
EXZ1# |
1 | ||
| 35783G - NUT(FOR COUNTER DRIVEN GEAR) | ||||
| 90179-20013 |
EXZ1# |
1 | ||
| 35789 - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT) | ||||
| 35789-32050 |
EXZ1# |
1 | ||
| 35789B - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR) | ||||
| 35789-32040 |
EXZ1# |
1 | ||
| 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) | ||||
| 35789-32060 |
EXZ1# |
1 | ||
| 35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR) | ||||
| 35789-32070 |
EXZ1# |
1 | ||
| 35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-32080 |
EXZ1# |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-32011 |
EXZ1# |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
EXZ1# |
2 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
EXZ1# |
2 | ||
| 35795 - RACE, 1 WAY CLUTCH OUTER | ||||
| 35795-32010 |
EXZ1# |
1 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
EXZ1# |
2 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
EXZ1# |
2 | ||
