EXZ10-AHSSK (1999)
Toyota Raum
Production
Jul 1999
-
Apr 2003
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9907- )

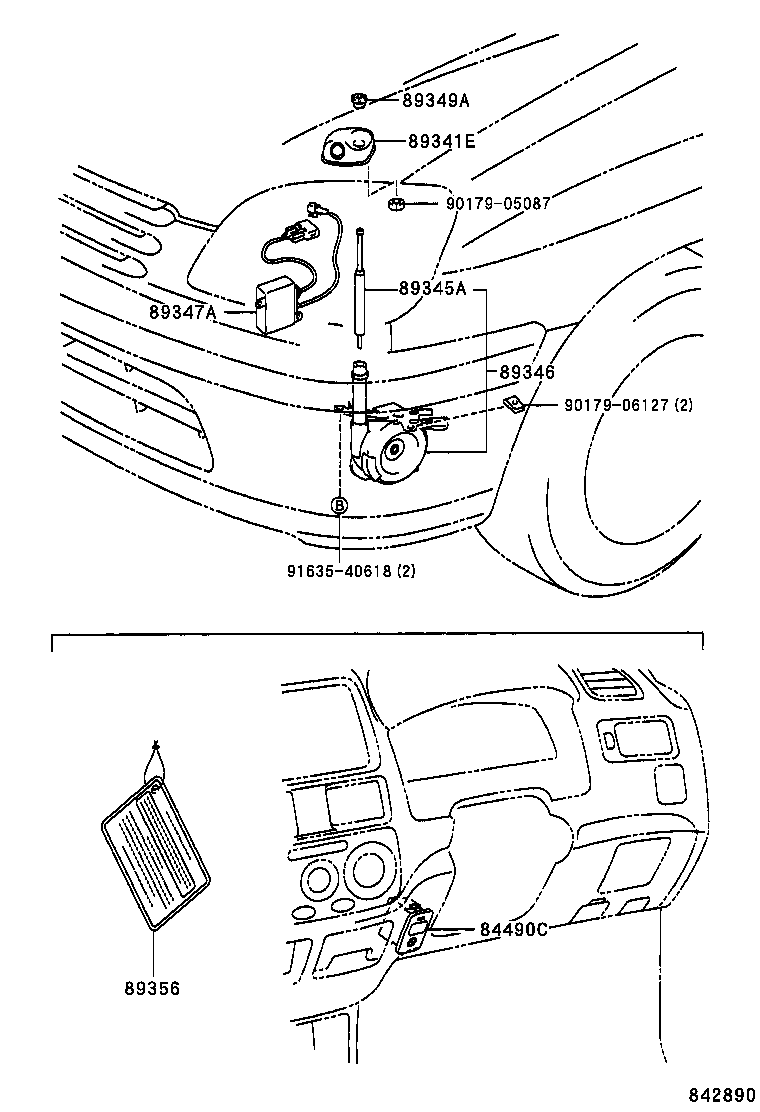

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84490C - SWITCH ASSY, CORNER POLE SENSOR | ||||
| 84490-46010B0 |
EXZ1# LT.BLUISH GRAY,TRIM1# |
1 | ||
| 84490-46020B1 |
EXZ1#..PB,SEPA ﾄﾘﾑ = TYPE H OR TYPE I OR TYPE K-*104,DK.GRAY,TRIM1# |
1 | ||
| 89341E - SENSOR, CORNER POLE | ||||
| 89341-46060B0 |
EXZ1# GRAY M,1C0 ,202 ,3E5 ,6R4 ,8M6 |
1 | ||
| 89341-46010 |
EXZ1# |
1 | ||
| 89341-46060B0 |
EXZ1# GRAY M,1C0 ,202 ,8M6 |
1 | ||
| 89341-46060B1 |
EXZ1# SILVER M,040 ,049 |
1 | ||
| 89341-46050 |
EXZ1# |
1 | ||
| 89341-46060B2 |
EXZ1#..PB SILVER ME.,583 ,761 |
1 | ||
| 89345A - POLE, CORNER ROD | ||||
| 89345-46010 |
EXZ1# |
1 | ||
| 89346 - POLE, CORNER | ||||
| 89346-46020 |
EXZ1# |
1 | ||
| 89346-46010 |
EXZ1# |
1 | ||
| 89347A - COMPUTER, CORNER POLE | ||||
| 89347-46020 |
EXZ1# |
1 | ||
| 89347-46010 |
EXZ1# |
1 | ||
| 89349A - NUT, CORNER POLE | ||||
| 89349-46020 |
EXZ1# |
1 | ||
| 89356 - LABEL, CLEARANCE WARNING INFORMATION | ||||
| 89356-46010 |
EXZ1# |
1 | ||
| Common parts | ||||
| 90179-05087 | ||||
| 90179-06127 | ||||
| 91635-40618 | ||||
