EXZ10-AHSSK (1999)
Toyota Raum

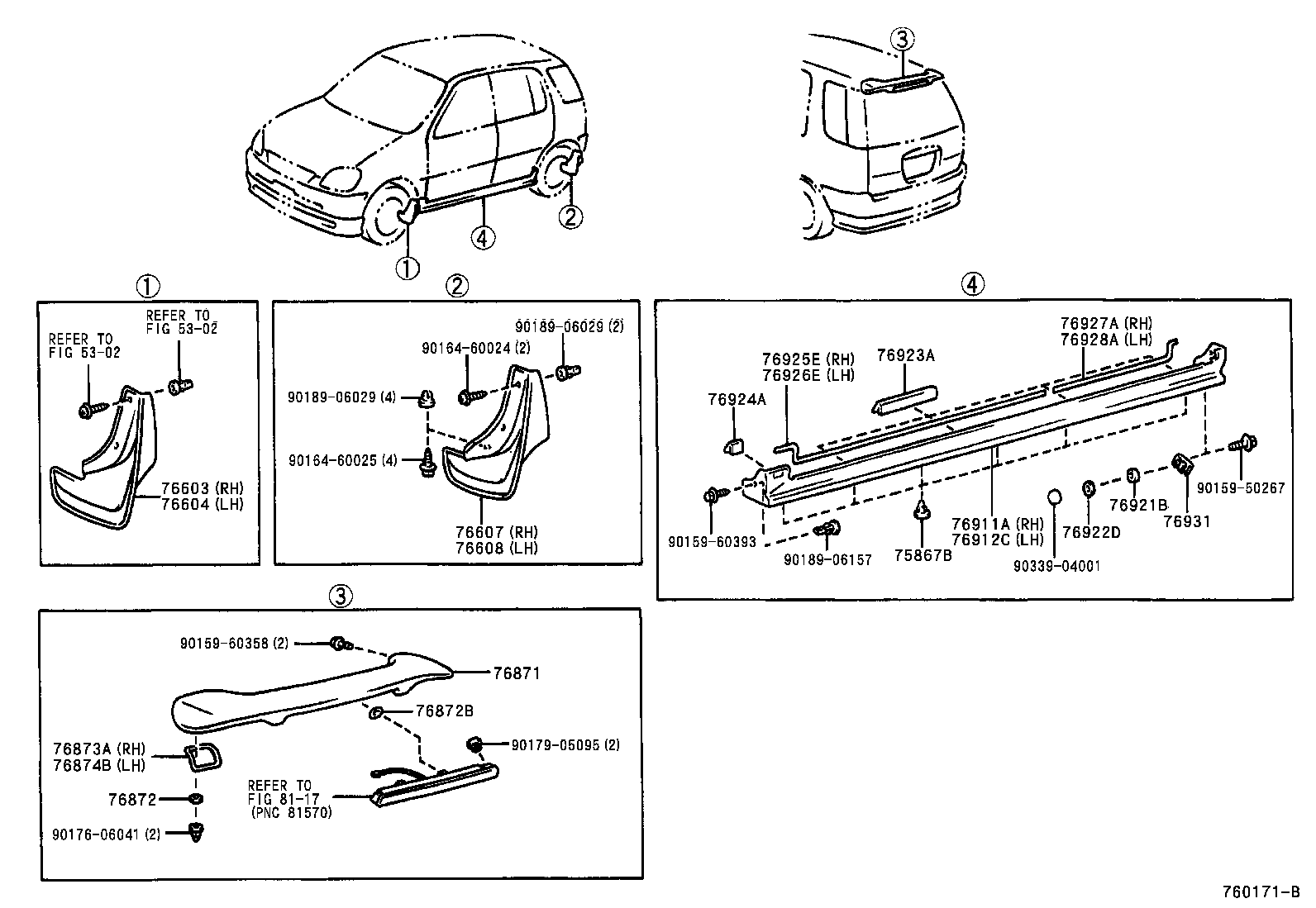

ILLUST NO. 2 OF 2(9907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-46010 |
EXZ1# |
12 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-46010E0 |
EXZ1# BEIGE M.M.,4N3 |
1 | ||
| 76621-46010B0 |
EXZ1# SILVER ME,199 ,2DW ,2DX |
1 | ||
| 76621-46010D0 |
EXZ1# RED M.M.,3L9 |
1 | ||
| 76621-46010G0 |
EXZ1# DK.GREEN MC.,6R4 |
1 | ||
| 76621-46010A0 |
EXZ1# SUPER WHITE,040 |
1 | ||
| 76621-46010K2 |
EXZ1# DK.PURPLE MC.GR.,940 |
1 | ||
| 76621-46010B1 |
EXZ1# SILVER ME.,1C0 |
1 | ||
| 76621-46010J2 |
EXZ1# BLUE MC.,8M6 |
1 | ||
| 76621-46010B1 |
EXZ1#..FD,PB SILVER ME.,1C0 |
1 | ||
| 76621-46010C1 |
EXZ1# BLACK,202 |
1 | ||
| 76621-46010K0 |
EXZ1# LT.PURPLE ME.OP.,931 |
1 | ||
| 76621-46010F2 |
EXZ1# CHAMPAGNE ME.,583 |
1 | ||
| 76621-46010H1 |
EXZ1# LT.AQUA ME.OP.,761 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-46010B0 |
EXZ1# SILVER ME,199 ,2DW ,2DX |
1 | ||
| 76622-46010D0 |
EXZ1# RED M.M.,3L9 |
1 | ||
| 76622-46010K0 |
EXZ1# LT.PURPLE ME.OP.,931 |
1 | ||
| 76622-46010B1 |
EXZ1# SILVER ME.,1C0 |
1 | ||
| 76622-46010K2 |
EXZ1# DK.PURPLE MC.GR.,940 |
1 | ||
| 76622-46010E0 |
EXZ1# BEIGE M.M.,4N3 |
1 | ||
| 76622-46010B1 |
EXZ1#..FD,PB SILVER ME.,1C0 |
1 | ||
| 76622-46010J2 |
EXZ1# BLUE MC.,8M6 |
1 | ||
| 76622-46010G0 |
EXZ1# DK.GREEN MC.,6R4 |
1 | ||
| 76622-46010A0 |
EXZ1# SUPER WHITE,040 |
1 | ||
| 76622-46010C1 |
EXZ1# BLACK,202 |
1 | ||
| 76622-46010F2 |
EXZ1# CHAMPAGNE ME.,583 |
1 | ||
| 76622-46010H1 |
EXZ1# LT.AQUA ME.OP.,761 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-46010B0 |
EXZ1# SILVER ME,199 ,2DW ,2DX |
1 | ||
| 76625-46010E0 |
EXZ1# BEIGE M.M.,4N3 |
1 | ||
| 76625-46010D0 |
EXZ1# RED M.M.,3L9 |
1 | ||
| 76625-46010K2 |
EXZ1# DK.PURPLE MC.GR.,940 |
1 | ||
| 76625-46010K0 |
EXZ1# LT.PURPLE ME.OP.,931 |
1 | ||
| 76625-46020C0 |
EXZ1# BLACK,202 |
1 | ||
| 76625-46020D0 |
EXZ1# SUPER RED II,3E5 |
1 | ||
| 76625-46020J0 |
EXZ1# BLUE MC.,8M6 |
1 | ||
| 76625-46020B0 |
EXZ1# SILVER ME.,1C0 |
1 | ||
| 76625-46020B0 |
EXZ1#..FD,PB SILVER ME.,1C0 |
1 | ||
| 76625-46020A1 |
EXZ1# SUPER WHITE 2,040 |
1 | ||
| 76625-46020A0 |
EXZ1# WHITE PM,049 |
1 | ||
| 76625-46020G0 |
EXZ1# DK.GREEN MC.,6R4 |
1 | ||
| 76625-46020H0 |
EXZ1# LT.AQUA ME.OP.,761 |
1 | ||
| 76625-46020F0 |
EXZ1# CHAMPAGNE ME.,583 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-46010D0 |
EXZ1# RED M.M.,3L9 |
1 | ||
| 76626-46010K2 |
EXZ1# DK.PURPLE MC.GR.,940 |
1 | ||
| 76626-46010E0 |
EXZ1# BEIGE M.M.,4N3 |
1 | ||
| 76626-46020B0 |
EXZ1# SILVER ME.,1C0 |
1 | ||
| 76626-46010B0 |
EXZ1# SILVER ME,199 ,2DW ,2DX |
1 | ||
| 76626-46010K0 |
EXZ1# LT.PURPLE ME.OP.,931 |
1 | ||
| 76626-46020B0 |
EXZ1#..FD,PB SILVER ME.,1C0 |
1 | ||
| 76626-46020J0 |
EXZ1# BLUE MC.,8M6 |
1 | ||
| 76626-46020C0 |
EXZ1# BLACK,202 |
1 | ||
| 76626-46020A0 |
EXZ1# WHITE PM,049 |
1 | ||
| 76626-46020H0 |
EXZ1# LT.AQUA ME.OP.,761 |
1 | ||
| 76626-46020D0 |
EXZ1# SUPER RED II,3E5 |
1 | ||
| 76626-46020A1 |
EXZ1# SUPER WHITE 2,040 |
1 | ||
| 76626-46020F0 |
EXZ1# CHAMPAGNE ME.,583 |
1 | ||
| 76626-46020G0 |
EXZ1# DK.GREEN MC.,6R4 |
1 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-46900 |
EXZ1# |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76875-46010 |
EXZ1# |
2 | ||
| 76872B - PROTECTOR, REAR SPOILER, CENTER | ||||
| 76872-16070 |
EXZ1# |
2 | ||
| 76873A - PROTECTOR, REAR SPOILER, RH | ||||
| 76873-46010 |
EXZ1# |
1 | ||
| 76874B - PROTECTOR, REAR SPOILER, LH | ||||
| 76874-46010 |
EXZ1# |
1 | ||
| 76911A - MUDGUARD, FENDER PANEL, RH | ||||
| 76911-46010D0 |
EXZ1# SUPER RED 2,3E5 |
1 | ||
| 76911-46010G0 |
EXZ1# DARK GREEN MC.,6R4 |
1 | ||
| 76911-46010A0 |
EXZ1# WHITE P.M.,049 |
1 | ||
| 76911-46010J1 |
EXZ1# BLUE MC.,8M6 |
1 | ||
| 76911-46010B1 |
EXZ1# SILVER ME.,1C0 |
1 | ||
| 76911-46010H1 |
EXZ1# LT.AQUA ME.OP.,761 |
1 | ||
| 76911-46010C1 |
EXZ1# BLACK,202 |
1 | ||
| 76911-46010A1 |
EXZ1# SUPER WHITE 2,040 |
1 | ||
| 76911-46010F0 |
EXZ1# CHAMPAGNE ME.,583 |
1 | ||
| 76912C - MUDGUARD, FENDER PANEL, LH | ||||
| 76912-46010G0 |
EXZ1# DARK GREEN MC.,6R4 |
1 | ||
| 76912-46010A0 |
EXZ1# WHITE P.M.,049 |
1 | ||
| 76912-46010D0 |
EXZ1# SUPER RED 2,3E5 |
1 | ||
| 76912-46010B1 |
EXZ1# SILVER ME.,1C0 |
1 | ||
| 76912-46010A1 |
EXZ1# SUPER WHITE 2,040 |
1 | ||
| 76912-46010C1 |
EXZ1# BLACK,202 |
1 | ||
| 76912-46010F0 |
EXZ1# CHAMPAGNE ME.,583 |
1 | ||
| 76912-46010J1 |
EXZ1# BLUE MC.,8M6 |
1 | ||
| 76912-46010H1 |
EXZ1# LT.AQUA ME.OP.,761 |
1 | ||
| 76921B - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-46010 |
EXZ1# |
1 | ||
| 76923A - RETAINER, SIDE MUDGUARD | ||||
| 76923-46010 |
EXZ1# |
8 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-46010 |
EXZ1# |
2 | ||
| 76925E - PROTECTOR, SIDE MUDGUARD, FRONT RH | ||||
| 76925-46010B0 |
EXZ1# GRAY,040 ,049 ,1C0 |
1 | ||
| 76925-46010B0 |
EXZ1# GRAY,040 ,049 ,1C0 ,583 ,761 |
1 | ||
| 76925-46010C0 |
EXZ1# BLACK,202 ,8M6 |
1 | ||
| 76925-46010C0 |
EXZ1# BLACK,202 ,3E5 ,6R4 ,8M6 |
1 | ||
| 76926E - PROTECTOR, SIDE MUDGUARD, FRONT LH | ||||
| 76926-46010C0 |
EXZ1# BLACK,202 ,8M6 |
1 | ||
| 76926-46010C0 |
EXZ1# BLACK,202 ,3E5 ,6R4 ,8M6 |
1 | ||
| 76926-46010B0 |
EXZ1# GRAY,040 ,049 ,1C0 |
1 | ||
| 76926-46010B0 |
EXZ1# GRAY,040 ,049 ,1C0 ,583 ,761 |
1 | ||
| 76927A - PROTECTOR, SIDE MUDGUARD, REAR RH | ||||
| 76927-46010C0 |
EXZ1# BLACK,202 ,3E5 ,6R4 ,8M6 |
1 | ||
| 76927-46010C0 |
EXZ1# BLACK,202 ,8M6 |
1 | ||
| 76927-46010B0 |
EXZ1# GRAY,040 ,049 ,1C0 |
1 | ||
| 76927-46010B0 |
EXZ1# GRAY,040 ,049 ,1C0 ,583 ,761 |
1 | ||
| 76928A - PROTECTOR, SIDE MUDGUARD, REAR LH | ||||
| 76928-46010B0 |
EXZ1# GRAY,040 ,049 ,1C0 ,583 ,761 |
1 | ||
| 76928-46010B0 |
EXZ1# GRAY,040 ,049 ,1C0 |
1 | ||
| 76928-46010C0 |
EXZ1# BLACK,202 ,3E5 ,6R4 ,8M6 |
1 | ||
| 76928-46010C0 |
EXZ1# BLACK,202 ,8M6 |
1 | ||
| 76931 - RETAINER, SIDE MUDGUARD, NO.3 | ||||
| 76931-46010 |
EXZ1# |
2 | ||
| Common parts | ||||
| 90159-50267 | ||||
| 90159-60358 | ||||
| 90159-60393 | ||||
| 90164-60024 | ||||
| 90164-60025 | ||||
| 90176-06041 | ||||
| 90179-05095 | ||||
| 90189-06029 | ||||
| 90189-06157 | ||||
| 90339-04001 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 8117 | ||||

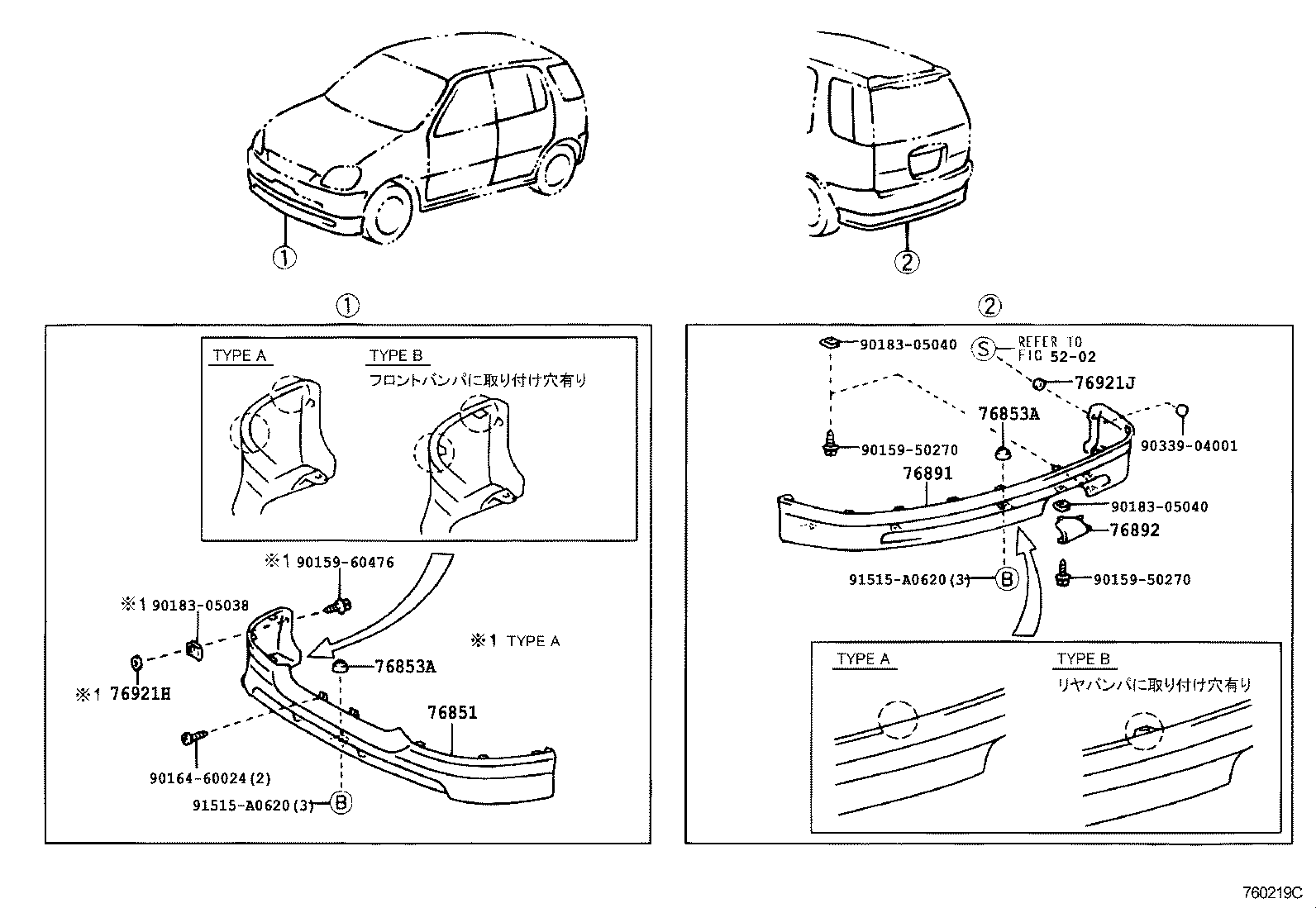

ILLUST NO. 1 OF 2(9907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76851 - COVER, FRONT SPOILER | ||||
| 76851-46030D0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED 2,3E5 |
1 | ||
| 76851-46020G0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GREEN MC.,6R4 |
1 | ||
| 76851-46030A1 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 76851-46020B0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 76851-46030G0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GREEN MC.,6R4 |
1 | ||
| 76851-46020A1 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 76851-46020H0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT.AQUA ME.OP.,761 |
1 | ||
| 76851-46020C0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
1 | ||
| 76851-46020A0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE PM,049 |
1 | ||
| 76851-46030A0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE PM,049 |
1 | ||
| 76851-46020J0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE MC.,8M6 |
1 | ||
| 76851-46030B0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 76851-46020D0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED II,3E5 |
1 | ||
| 76851-46030H0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT.AQUA ME.OP.,761 |
1 | ||
| 76851-46030C0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
1 | ||
| 76851-46020F0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,CHAMPAGNE ME.,583 |
1 | ||
| 76851-46030F0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,CHAMPAGNE ME.,583 |
1 | ||
| 76851-46030J0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE MC.,8M6 |
1 | ||
| 76853A - RETAINER, FRONT SPOILER, UPPER NO.1 | ||||
| 76853-46010 |
EXZ1# |
3 | ||
| 76853A - RETAINER, FRONT SPOILER, UPPER NO.1 | ||||
| 76853-46010 |
EXZ1# |
3 | ||
| 76891 - SPOILER, REAR NO.1 | ||||
| 76891-46050D0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED 2,3E5 |
1 | ||
| 76891-46030G0 |
EXZ1# MARK = 76891-46030,DK.GREEN MC.,6R4 |
1 | ||
| 76891-46030A0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE PM,049 |
1 | ||
| 76891-46030D0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED II,3E5 |
1 | ||
| 76891-46030A1 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 76891-46030B0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 76891-46030C0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
1 | ||
| 76891-46050F0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,CHAMPAGNE ME.,583 |
1 | ||
| 76891-46050G0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GREEN MC.,6R4 |
1 | ||
| 76891-46030J0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE MC.,8M6 |
1 | ||
| 76891-46050H0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT.AQUA ME.OP.,761 |
1 | ||
| 76891-46050A1 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 76891-46050J0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE MC.,8M6 |
1 | ||
| 76891-46030F0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,CHAMPAGNE ME.,583 |
1 | ||
| 76891-46050B0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 76891-46030H0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT.AQUA ME.OP.,761 |
1 | ||
| 76891-46050A0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE PM,049 |
1 | ||
| 76891-46050C0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
1 | ||
| 76892 - SPOILER, REAR NO.2 | ||||
| 76892-46010D0 |
EXZ10 SUPER RED II,3E5 |
1 | ||
| 76892-46010C0 |
EXZ10 BLACK,202 |
1 | ||
| 76892-46010A1 |
EXZ10 WHITE PM,049 |
1 | ||
| 76892-46010G0 |
EXZ10 DK.GREEN MC.,6R4 |
1 | ||
| 76892-46010A0 |
EXZ10 SUPER WHITE 2,040 |
1 | ||
| 76892-46010H0 |
EXZ10 LT.AQUA ME.OP.,761 |
1 | ||
| 76892-46010B0 |
EXZ10 SILVER ME.,1C0 |
1 | ||
| 76892-46010F0 |
EXZ10 CHAMPAGNE ME.,583 |
1 | ||
| 76892-46010J0 |
EXZ10 BLUE MC.,8M6 |
1 | ||
| 76921H - PROTECTOR, FRONT SPOILER, NO.1 | ||||
| 76921-46010 |
EXZ1# 厚さ=1.5 |
2 | ||
| 76922-46010 |
EXZ1# 厚さ=3.0 |
2 | ||
| 76921J - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76921-46010 |
EXZ1# 厚さ=1.5 |
2 | ||
| 76922-46010 |
EXZ1# 厚さ=3.0 |
4 | ||
| Common parts | ||||
| 90159-50270 | ||||
| 90159-60476 | ||||
| 90164-60024 | ||||
| 90183-05038 | ||||
| 90183-05040 | ||||
| 90339-04001 | ||||
| 91515-A0620 | ||||
| Linked diagrams | ||||
| 5202 | ||||
