EXZ10-AHSSK (1999)

Toyota Raum

Production Jul 1999 - Apr 2003
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

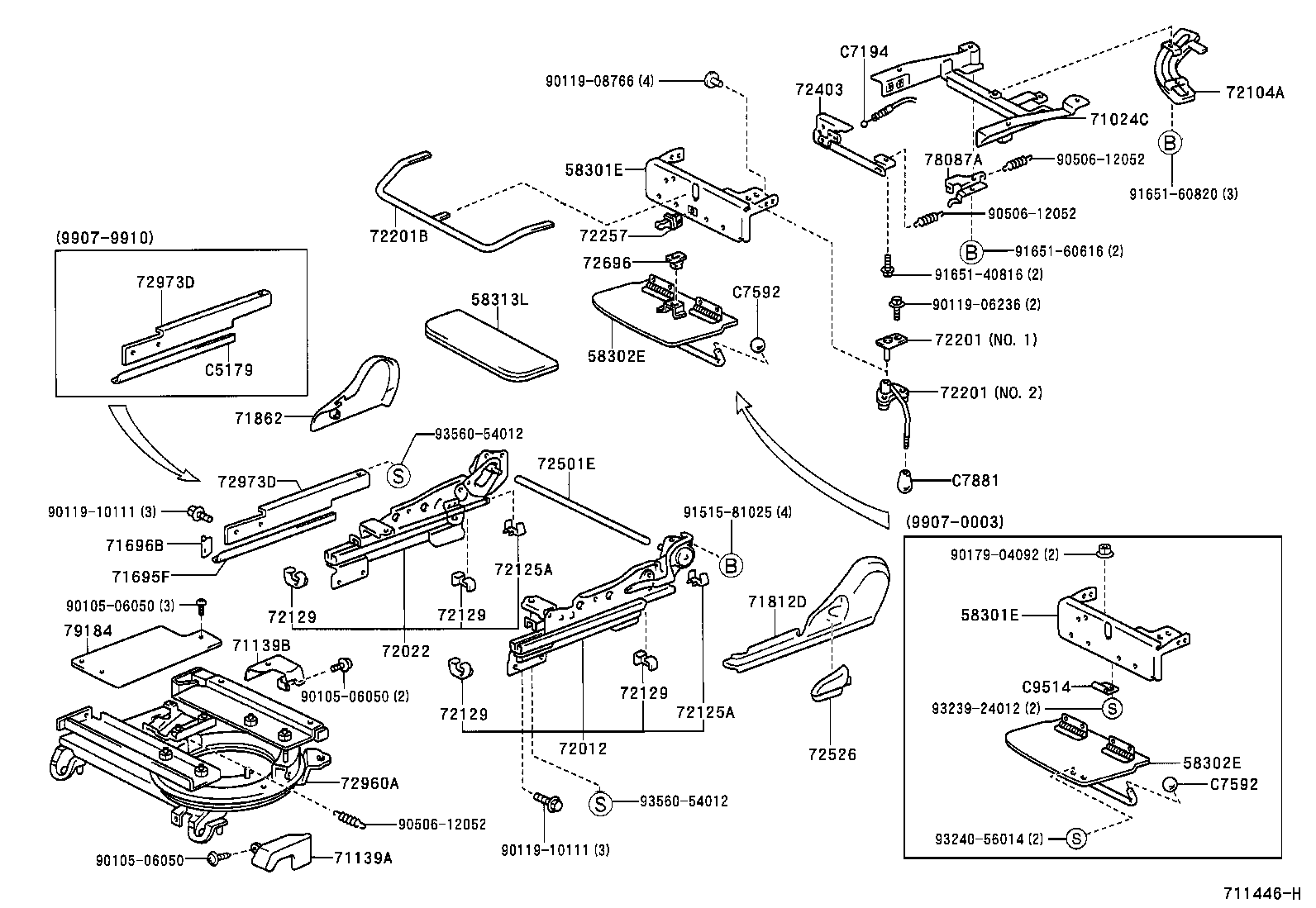

ILLUST NO. 2 OF 2(9907- )

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ ｶｲﾃﾝ ｼ-ﾄ

diagram 58301E 58301E 58302E 58302E 58313L 71024C 71139A 71139B 71695F 71696B 71812D 71862 72012 72022 72104A 72125A 72125A 72129 72129 72129 72129 72201 72201 72201B 72257 72403 72501E 72526 72696 72960A 72973D 72973D 78087A 79184 9010506050 9010506050 9010506050 9011906236 9011908766 9011910111 9011910111 9017904092 9050612052 9050612052 9050612052 9151581025 9165140816 9165160616 9165160820 9323924012 9324056014 9356054012 9356054012 C5179 C7194 C7592 C7592 C7881 C9514
Part # Description Qty Price
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-20270B9

EXZ1#..PB

ｼ-ﾄ = TYPE H-*104,DK.GRAY,TRIM1#

 1
71812-20270B4

EXZ1#

LT.BLUISH GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-46020B1

EXZ1#..PB

ｼ-ﾄ = TYPE H-*104,DK.GRAY,TRIM1#

 1
71862-46010B0

EXZ1#

LT.BLUISH GRAY,TRIM1#

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-46010

EXZ1#

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-46010

EXZ1#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-16020

EXZ1#

 4
72125A - COVER, SEAT TRACK, UPPER REAR
72125-16020

EXZ1#

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-16020

EXZ1#

 4
72129-16020

EXZ1#..FD,PB

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-16020

EXZ1#

 4
72129-16020

EXZ1#..FD,PB

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-16020

EXZ1#

 4
72129-16020

EXZ1#..FD,PB

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-16020

EXZ1#

 4
72129-16020

EXZ1#..FD,PB

 4
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72201-46010

EXZ1#

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72345-16030

EXZ1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010P4

EXZ1#

LT.BLUISH GRAY,TRIM1#

 1
72526-16010S1

EXZ1#..PB

ｼ-ﾄ = TYPE H-*104,DK.GRAY,TRIM1#

 1
Common parts
90105-06050
90119-06236
90119-08766
90119-10111
90179-04092
90506-12052
91515-81025
91651-40816
91651-60616
91651-60820
93239-24012
93240-56014
93560-54012
