EXZ10-AHSSK (1999)
Toyota Raum
Production
Jul 1999
-
Apr 2003
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9907- )

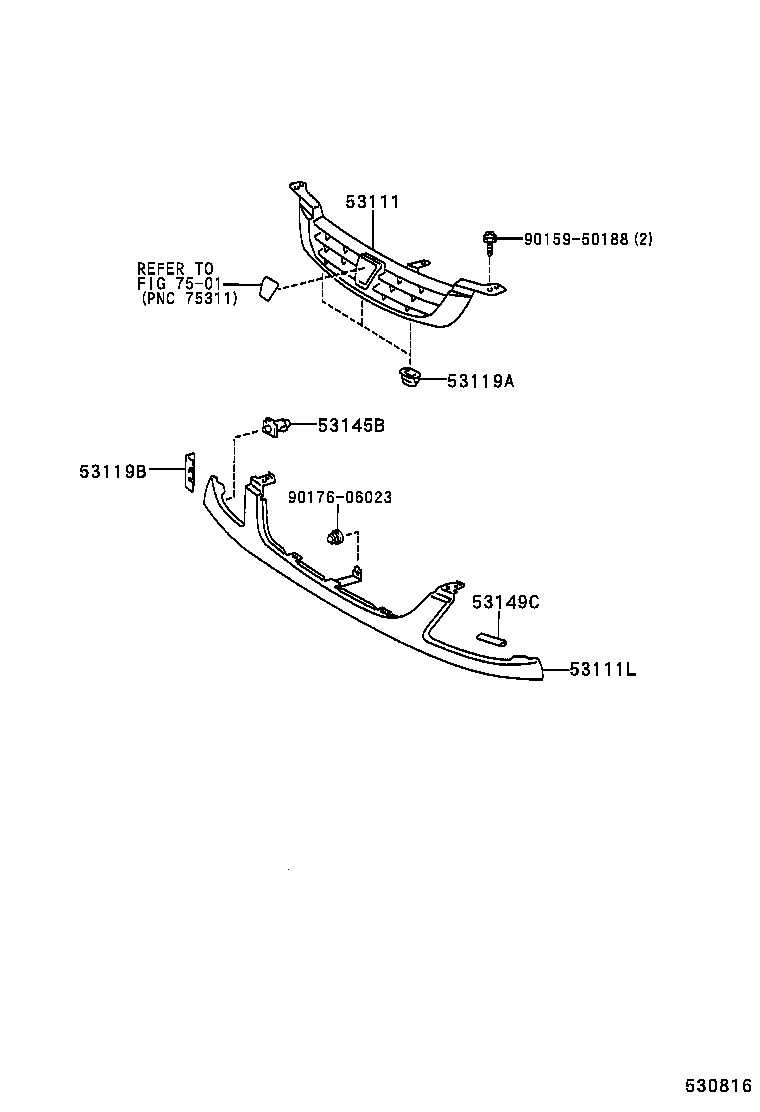

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-46900 |
EXZ1# |
1 | ||
| 53111-46030 |
EXZ1# |
1 | ||
| 53111L - GRILLE SUB-ASSY, RADIATOR, CENTER | ||||
| 53101-46902 |
EXZ1# |
1 | ||
| 53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL | ||||
| 53119-12110 |
EXZ1# |
3 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-46010 |
EXZ1# |
2 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-46010 |
EXZ1# |
2 | ||
| 53149C - PROTECTOR, RADIATOR GRILLE, NO.2 | ||||
| 53149-46010 |
EXZ1# |
4 | ||
| Common parts | ||||
| 90159-50188 | ||||
| 90176-06023 | ||||
| Linked diagrams | ||||
| 7501 | ||||
