EXZ10-AHSSK (1999)
Toyota Raum
(9907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52116F - RETAINER, REAR BUMPER | ||||
| 52116-12310 |
EXZ1# |
2 | ||
| 52137E - PLATE, REAR BUMPER BRACKET, NO.1 | ||||
| 52137-12100 |
EXZ1# |
2 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-46020 |
EXZ1# |
1 | ||
| 52155-46010 |
EXZ1# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52155-46010 |
EXZ1# |
1 | ||
| 52155-46020 |
EXZ1# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-46040B1 |
EXZ1# SILVER M,040 ,049 |
1 | ||
| 52159-46040B0 |
EXZ1# GRAY M,1C0 ,202 ,8M6 |
1 | ||
| 52159-46030 |
EXZ1# |
1 | ||
| 52159-46010 |
EXZ1# ﾄｿｳ ﾅｼ(ｸﾞﾚ-) |
1 | ||
| 52159-46040B0 |
EXZ1# GRAY M,1C0 ,202 ,3E5 ,6R4 ,8M6 |
1 | ||
| 52159-46040B2 |
EXZ1#..PB SILVER ME.,583 ,761 |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-46010B0 |
EXZ1# SILVER ME,199 ,2DW ,2DX |
1 | ||
| 52169-46010K0 |
EXZ1# LT.PURPLE ME.OP.,931 |
1 | ||
| 52169-46010E0 |
EXZ1# BEIGE M.M.,4N3 |
1 | ||
| 52169-46010D0 |
EXZ1# RED M.M.,3L9 |
1 | ||
| 52169-46010K2 |
EXZ1# DK.PURPLE MC.GR.,940 |
1 | ||
| 52169-46040G0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GREEN MC.,6R4 |
1 | ||
| 52169-46030D0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED II,3E5 |
1 | ||
| 52169-46040A0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE PM,049 |
1 | ||
| 52169-46040D0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED II,3E5 |
1 | ||
| 52169-46030G0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GREEN MC.,6R4 |
1 | ||
| 52169-46030J0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE MC.,8M6 |
1 | ||
| 52169-46040J0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE MC.,8M6 |
1 | ||
| 52169-46040A1 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 52169-46030A1 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 52169-46040C0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
1 | ||
| 52169-46030A0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE PM,049 |
1 | ||
| 52169-46040H0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT.AQUA ME.OP.,761 |
1 | ||
| 52169-46040F0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,CHAMPAGNE ME.,583 |
1 | ||
| 52169-46030B0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 52169-46030F0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,CHAMPAGNE ME.,583 |
1 | ||
| 52169-46030C0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
1 | ||
| 52169-46040B0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 52169-46030H0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT.AQUA ME.OP.,761 |
1 | ||
| 52169-46030B0 |
EXZ1#..FD,PB TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-46010B0 |
EXZ1# SILVER ME,199 ,2DW ,2DX |
1 | ||
| 52169-46010K0 |
EXZ1# LT.PURPLE ME.OP.,931 |
1 | ||
| 52169-46010E0 |
EXZ1# BEIGE M.M.,4N3 |
1 | ||
| 52169-46010D0 |
EXZ1# RED M.M.,3L9 |
1 | ||
| 52169-46010K2 |
EXZ1# DK.PURPLE MC.GR.,940 |
1 | ||
| 52169-46040G0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GREEN MC.,6R4 |
1 | ||
| 52169-46030D0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED II,3E5 |
1 | ||
| 52169-46040A0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE PM,049 |
1 | ||
| 52169-46040D0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER RED II,3E5 |
1 | ||
| 52169-46030G0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GREEN MC.,6R4 |
1 | ||
| 52169-46030J0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE MC.,8M6 |
1 | ||
| 52169-46040J0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE MC.,8M6 |
1 | ||
| 52169-46040A1 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 52169-46030A1 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 52169-46040C0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
1 | ||
| 52169-46030A0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE PM,049 |
1 | ||
| 52169-46040H0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT.AQUA ME.OP.,761 |
1 | ||
| 52169-46040F0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,CHAMPAGNE ME.,583 |
1 | ||
| 52169-46030B0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 52169-46030F0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,CHAMPAGNE ME.,583 |
1 | ||
| 52169-46030C0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,202 |
1 | ||
| 52169-46040B0 |
EXZ1# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 52169-46030H0 |
EXZ1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT.AQUA ME.OP.,761 |
1 | ||
| 52169-46030B0 |
EXZ1#..FD,PB TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER ME.,1C0 |
1 | ||
| 52187E - GUIDE, REAR BUMPER LOCATION, RH | ||||
| 52187-16070 |
EXZ1# |
1 | ||
| 52188D - GUIDE, REAR BUMPER LOCATION, LH | ||||
| 52187-16070 |
EXZ1# |
1 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-46010 |
EXZ1# |
1 | ||
| 52582 - PROTECTOR, REAR BUMPER, LH | ||||
| 52581-46010 |
EXZ1# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-46010 |
EXZ1# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-46010 |
EXZ1# |
1 | ||
| Common parts | ||||
| 52791-46010 | ||||
| 90106-06001 | ||||
| 90119-06352 | ||||
| 90159-60393 | ||||
| 90159-60476 | ||||
| 90179-06009 | ||||
| 90183-05038 | ||||
| 90189-06029 | ||||
| 90430-10016 | ||||
| 90467-09075 | ||||

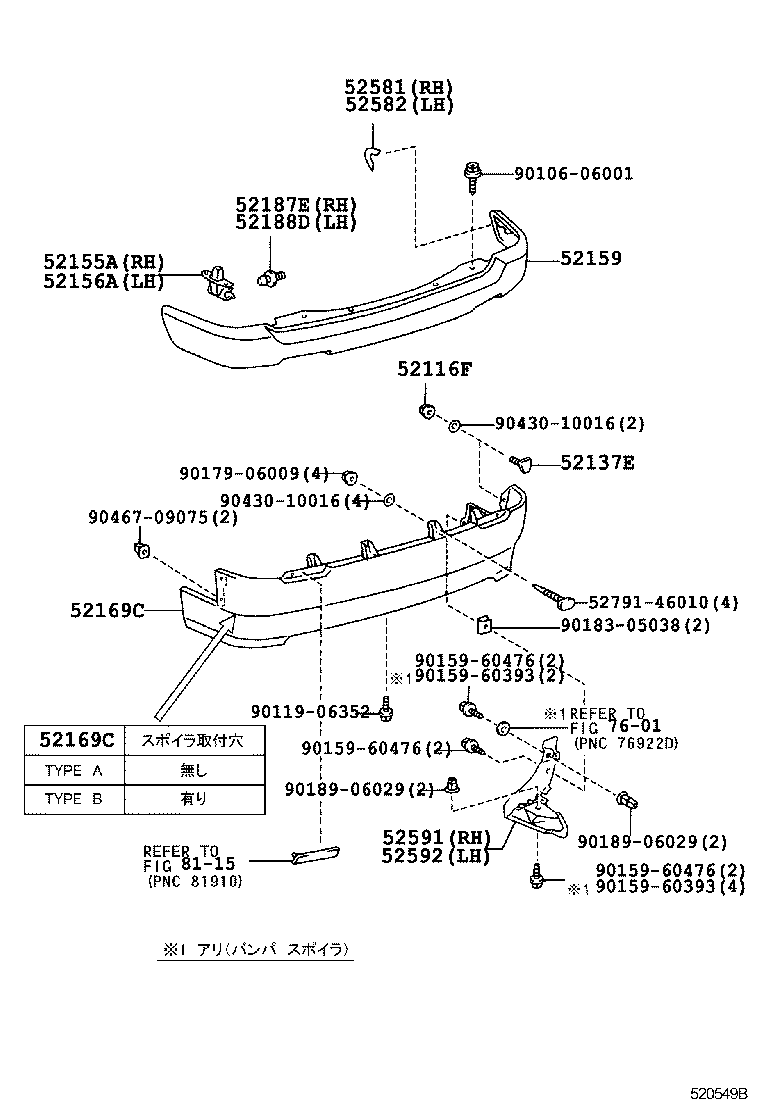

| Linked diagrams | ||||
| 7601 | ||||
| 8115 | ||||
