EXZ10-AHSSK (1999)
Toyota Raum
Production
Jul 1999
-
Apr 2003
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

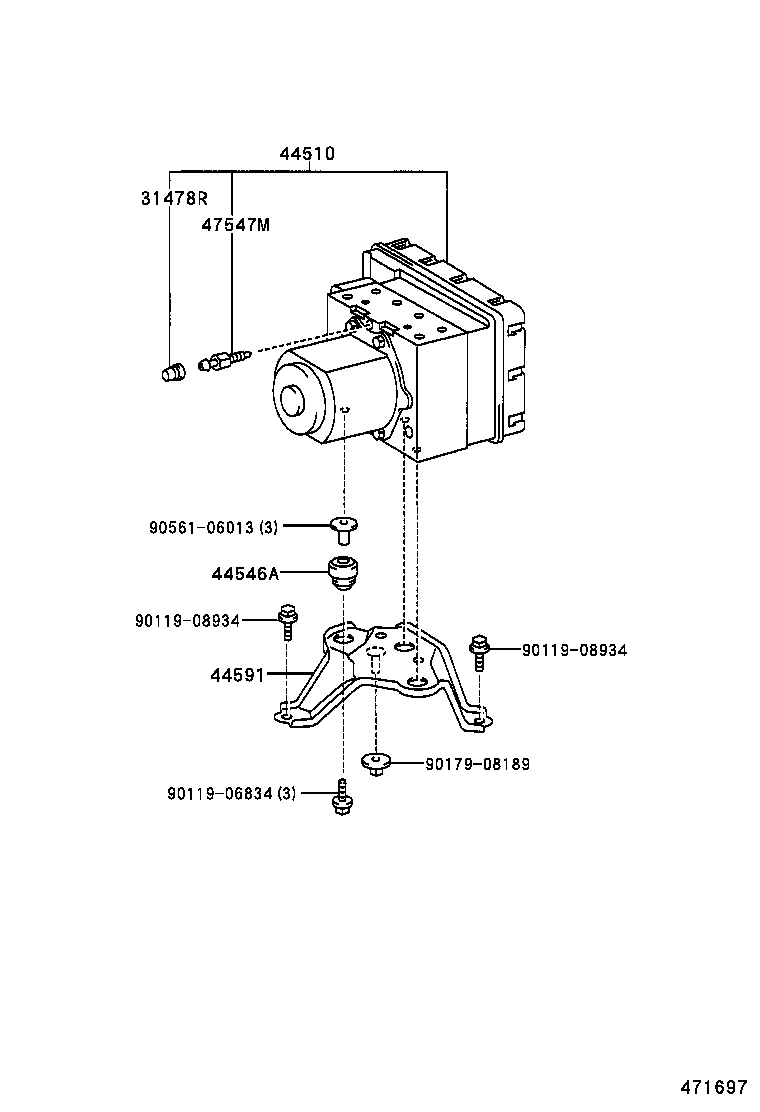

ILLUST NO. 2 OF 2(9907- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478R - CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR) | ||||
| 31478-30010 |
EXZ1# |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-46040 |
EXZ10 |
1 | ||
| 44050-46010 |
EXZ10 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
EXZ1# |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-46020 |
EXZ1# |
1 | ||
| 44591-46010 |
EXZ1# |
1 | ||
| 47547M - PLUG, BLEEDER(FOR BRAKE ACTUATOR) | ||||
| 47547-22020 |
EXZ1# |
1 | ||
| Common parts | ||||
| 90119-06834 | ||||
| 90119-08934 | ||||
| 90179-08189 | ||||
| 90561-06013 | ||||
