EXZ10-AHSSK (1999)

Toyota Raum

Production Jul 1999 - Apr 2003
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )

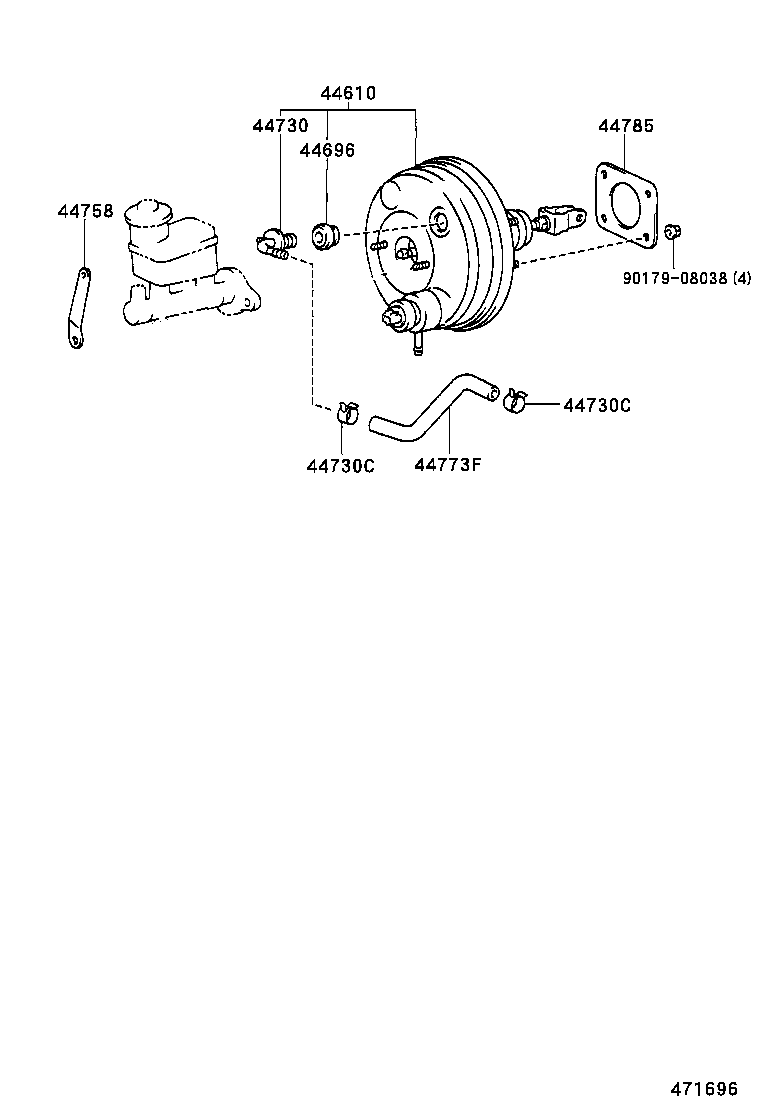

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44758 44773F 44785 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-46010

EXZ1#

 1
44610-46020

EXZ1#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

EXZ1#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

EXZ1#

 1
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

EXZ1#

 2
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

EXZ1#

 2
44758 - BRACKET, VACUUM CHECK VALVE
44758-46010

EXZ1#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-46010

EXZ1#

 1
44785 - GASKET, BRAKE BOOSTER
44785-16020

EXZ1#

 1
Common parts
90179-08038
