EXZ10-AHSSK (1999)
Toyota Raum
Production
Jul 1999
-
Apr 2003
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9907- )

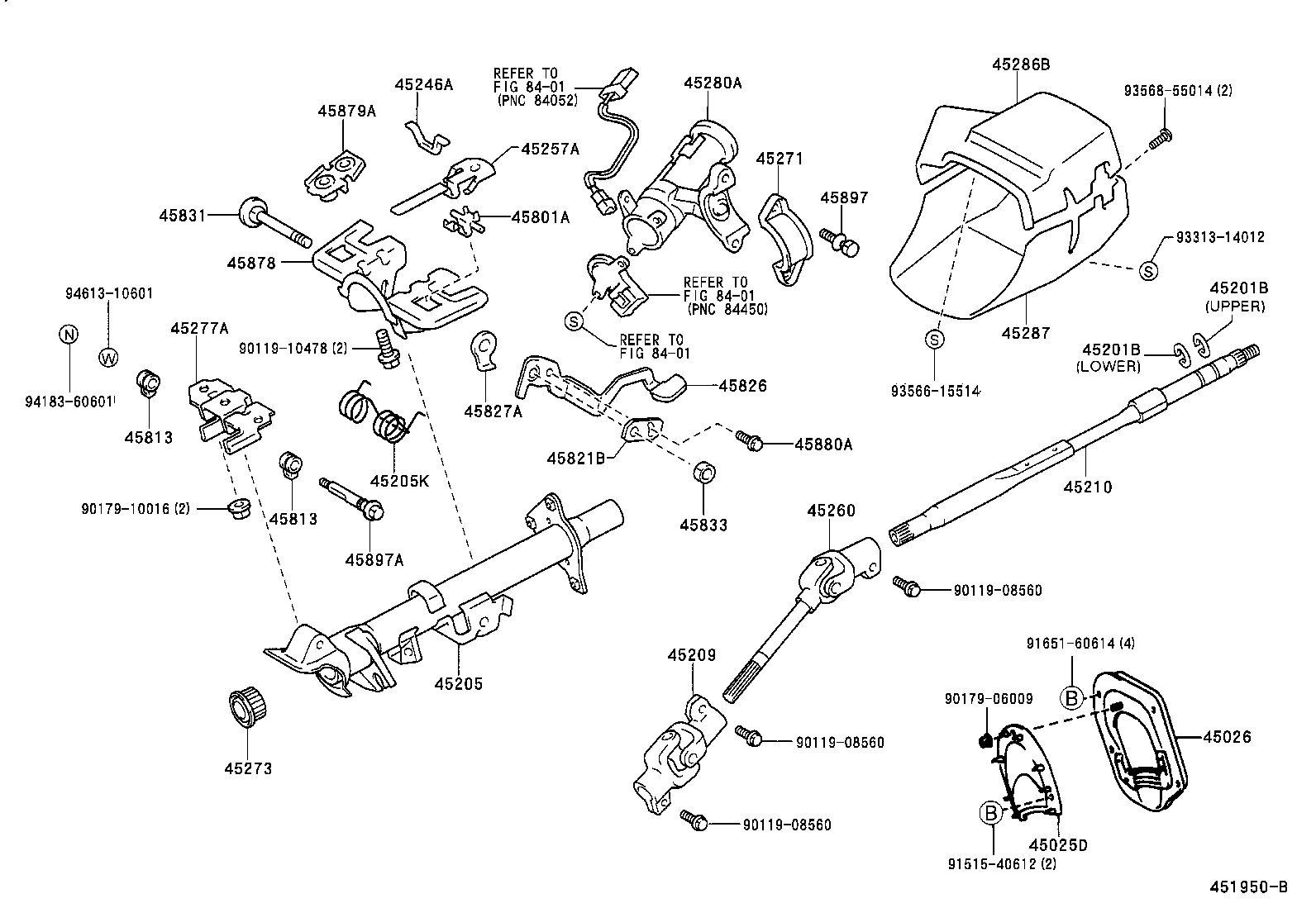

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-16130 |
EXZ1# |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-16060 |
EXZ1# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EXZ1# 厚さ=1.20,下側 |
1 | ||
| 90520-17269 |
EXZ1# 厚さ=1.20,上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EXZ1# 厚さ=1.20,下側 |
1 | ||
| 90520-17269 |
EXZ1# 厚さ=1.20,上側 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-44060 |
EXZ1# |
1 | ||
| 45205-44010 |
EXZ1# |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90949-03027 |
EXZ1# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16051 |
EXZ1# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-44010 |
EXZ1# |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
EXZ1# |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
EXZ1# |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-46010 |
EXZ1# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EXZ1# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-12020 |
EXZ1# |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-12010 |
EXZ1# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-44020 |
EXZ1# |
1 | ||
| 45280-44011 |
EXZ1# |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-46010B0 |
EXZ1# DK.GRAY,TRIM1# |
1 | ||
| 45286-44010B0 |
EXZ1# MD.MOON MIST,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45024-46020B0 |
EXZ1# DK.GRAY,TRIM1# |
1 | ||
| 45024-46010B0 |
EXZ1# MD.MOON MIST,TRIM1# |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
EXZ1# |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12010 |
EXZ1# 外径=14 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12010 |
EXZ1# 外径=14 |
2 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-12010 |
EXZ1# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-44020 |
EXZ1# |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-12030 |
EXZ1# |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-12020 |
EXZ1# |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-12010 |
EXZ1# |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-12220 |
EXZ1# |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-12050 |
EXZ1# |
2 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
EXZ1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EXZ1# |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-12040 |
EXZ1# |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90179-06009 | ||||
| 90179-10016 | ||||
| 91515-40612 | ||||
| 91651-60614 | ||||
| 93313-14012 | ||||
| 93566-15514 | ||||
| 93568-55014 | ||||
| 94183-60601 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 8401 | ||||
