EXZ10-AHSSK (1999)

Toyota Raum

Production Jul 1999 - Apr 2003
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9705-0204)5EFE..EXZ10 ; (9705- )5EFE..EXZ15

Click highlighted areas on diagram

diagram 17302 17341P 17630 23265C 25860 7701 9044708083 9046400295 9091005211 9099992002 9099992002
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-11011

5EFE..EXZ1#

 1
17341P - HOSE, AIR
17341-11390

5EFE..EXZ1#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-11070

5EFE..EXZ1#

 1
23265C - FILTER, GAS
90917-11030

5EFE..EXZ1#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-11380

5EFE..EXZ10

 1
25860-11320

5EFE..EXZ1#

 1
Common parts
90447-08083
90464-00295
90910-05211
90999-92002
Linked diagrams
7701

(0204- )5EFE..EXZ10

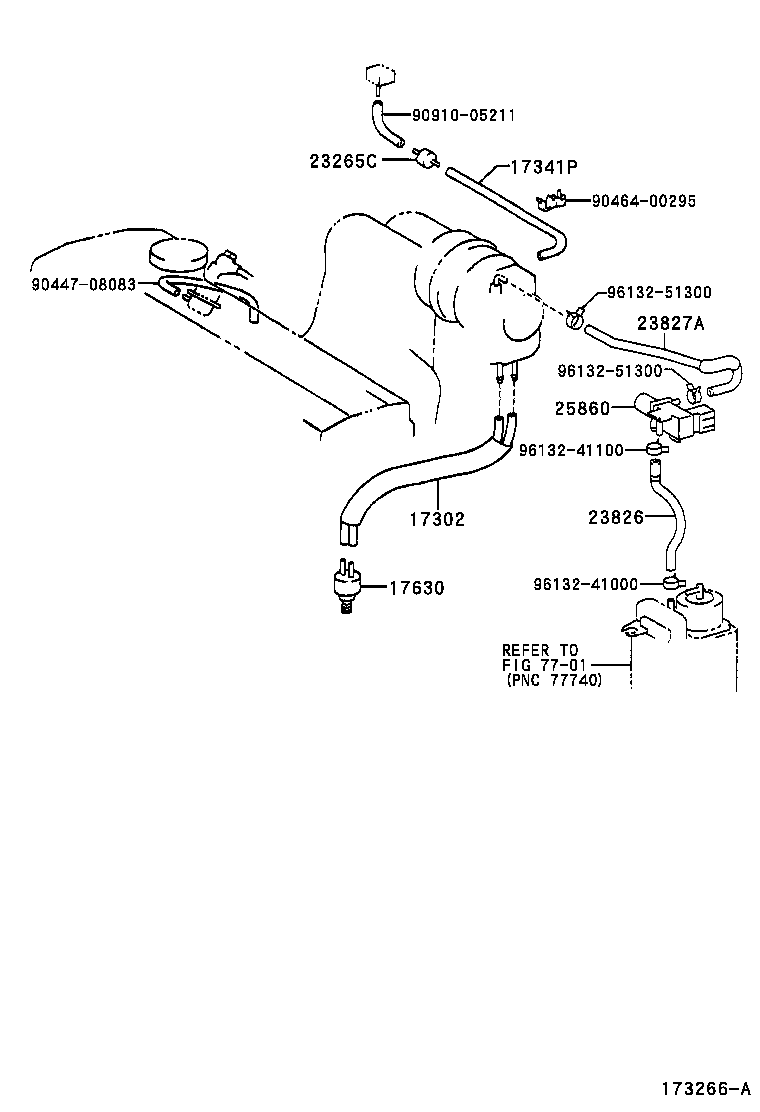

Click highlighted areas on diagram

diagram 17302 17341P 17630 23265C 23826 23827A 25860 7701 9044708083 9046400295 9091005211 9613241000 9613241100 9613251300 9613251300
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-11011

5EFE..EXZ1#

 1
17341P - HOSE, AIR
17341-11390

5EFE..EXZ1#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-11070

5EFE..EXZ1#

 1
23265C - FILTER, GAS
90917-11030

5EFE..EXZ1#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-11030

5EFE..EXZ10

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-11040

5EFE..EXZ10

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-11380

5EFE..EXZ10

 1
25860-11320

5EFE..EXZ1#

 1
Common parts
90447-08083
90464-00295
90910-05211
96132-41000
96132-41100
96132-51300
Linked diagrams
7701
