A210A-GBXV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

Click highlighted areas on diagram

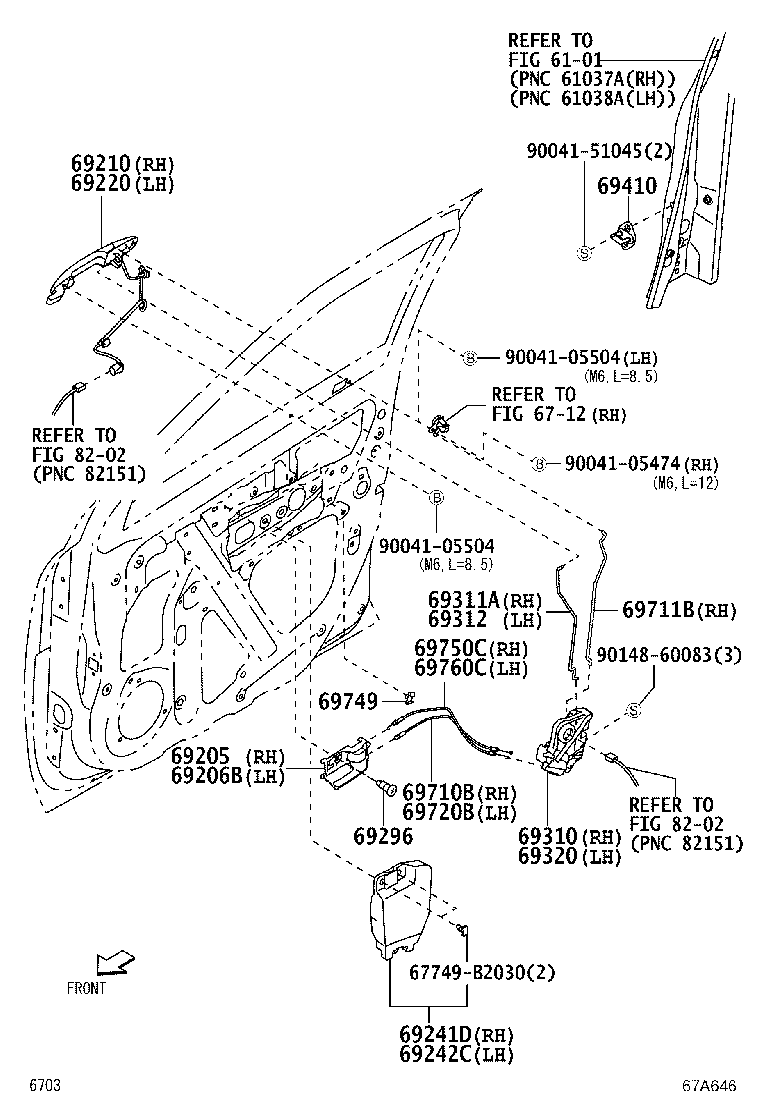

diagram 6101 6712 67749B2030 69205 69206B 69210 69220 69241D 69242C 69296 69310 69311A 69312 69320 69410 69710B 69711B 69720B 69749 69750C 69760C 8202 8202 9004105474 9004105504 9004105504 9004151045 9014860083
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-B1050C0

A200,210

BLACK,TRIM2#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-B1050C0

A200,210

BLACK,TRIM2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-B1120C0

A200,210..X

BLACK M.M.,X07

 1
69210-B1121D0

A200,210..X

RED ME.,R67

 1
69210-B1120B0

A200,210..X

SILVER ME.,S28

 1
69210-B1121B0

A200,210..X

SILVER ME.,S28

 1
69210-B1120J0

A200,210..X

TURQUOISE BLUE SE.,B82

 1
69210-B1120F0

A200,210..X

GREENISHYELLOW M.M.,Y15

 1
69210-B1121J0

A200,210..X

TURQUOISE BLUE SE.,B82

 1
69210-B1121J1

A200,210..X

TURQUOISE M.M.,B86

 1
69210-B1121E0

A200,210..X

BROWNISH BEIGE M.M.,T32

 1
69210-B1141

A200,210..G,Z

ﾒｯｷ

 1
69210-B1120D0

A200,210..X

RED ME.,R67

 1
69210-B1120E0

A200,210..X

BROWNISH BEIGE M.M.,T32

 1
69210-B1120J1

A200,210..X

TURQUOISE M.M.,B86

 1
69210-B1121A0

A200,210..X

WHITE PEARL SE.,W25

 1
69210-B1121F0

A200,210..X

GREENISHYELLOW M.M.,Y15

 1
69210-B1140

A200,210..G,Z

ﾒｯｷ

 1
69210-B1120A0

A200,210..X

WHITE PEARL SE.,W25

 1
69210-B1121C0

A200,210..X

BLACK M.M.,X07

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-B1080A0

A200,210..X

WHITE PEARL SE.,W25

 1
69220-B1080E0

A200,210..X

BROWNISH BEIGE M.M.,T32

 1
69220-B1080F0

A200,210..X

GREENISHYELLOW M.M.,Y15

 1
69220-B1080C0

A200,210..X

BLACK M.M.,X07

 1
69220-B1080D0

A200,210..X

RED ME.,R67

 1
69220-B1081F0

A200,210..X

GREENISHYELLOW M.M.,Y15

 1
69220-B1081D0

A200,210..X

RED ME.,R67

 1
69220-B1080B0

A200,210..X

SILVER ME.,S28

 1
69220-B1081A0

A200,210..X

WHITE PEARL SE.,W25

 1
69220-B1100

A200,210..G,Z

ﾒｯｷ

 1
69220-B1080J1

A200,210..X

TURQUOISE M.M.,B86

 1
69220-B1081C0

A200,210..X

BLACK M.M.,X07

 1
69220-B1081B0

A200,210..X

SILVER ME.,S28

 1
69220-B1080J0

A200,210..X

TURQUOISE BLUE SE.,B82

 1
69220-B1101

A200,210..G,Z

ﾒｯｷ

 1
69220-B1081E0

A200,210..X

BROWNISH BEIGE M.M.,T32

 1
69220-B1081J0

A200,210..X

TURQUOISE BLUE SE.,B82

 1
69220-B1081J1

A200,210..X

TURQUOISE M.M.,B86

 1
69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH
75787-B1030

A200,210

 1
69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH
75788-B1030

A200,210

 1
69296 - SCREW, DOOR INSIDE HANDLE
90041-67041

A200,210

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-B1081

A200,210

 1
69310-B1082

A200,210

 1
69310-B1080

A200,210

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-B1070

A200,210

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-B1070

A200,210

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-B1033

A200,210

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-B2020

A200,210

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-B1070

A200,210

 1
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-B1030

A200,210

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-B1070

A200,210

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040

A200,210

 2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-B1070

A200,210

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69760-B1070

A200,210

 1
Common parts
67749-B2030
90041-05474
90041-05504
90041-51045
90148-60083
Linked diagrams
6101
6712
8202
