A210A-GBSV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )A210

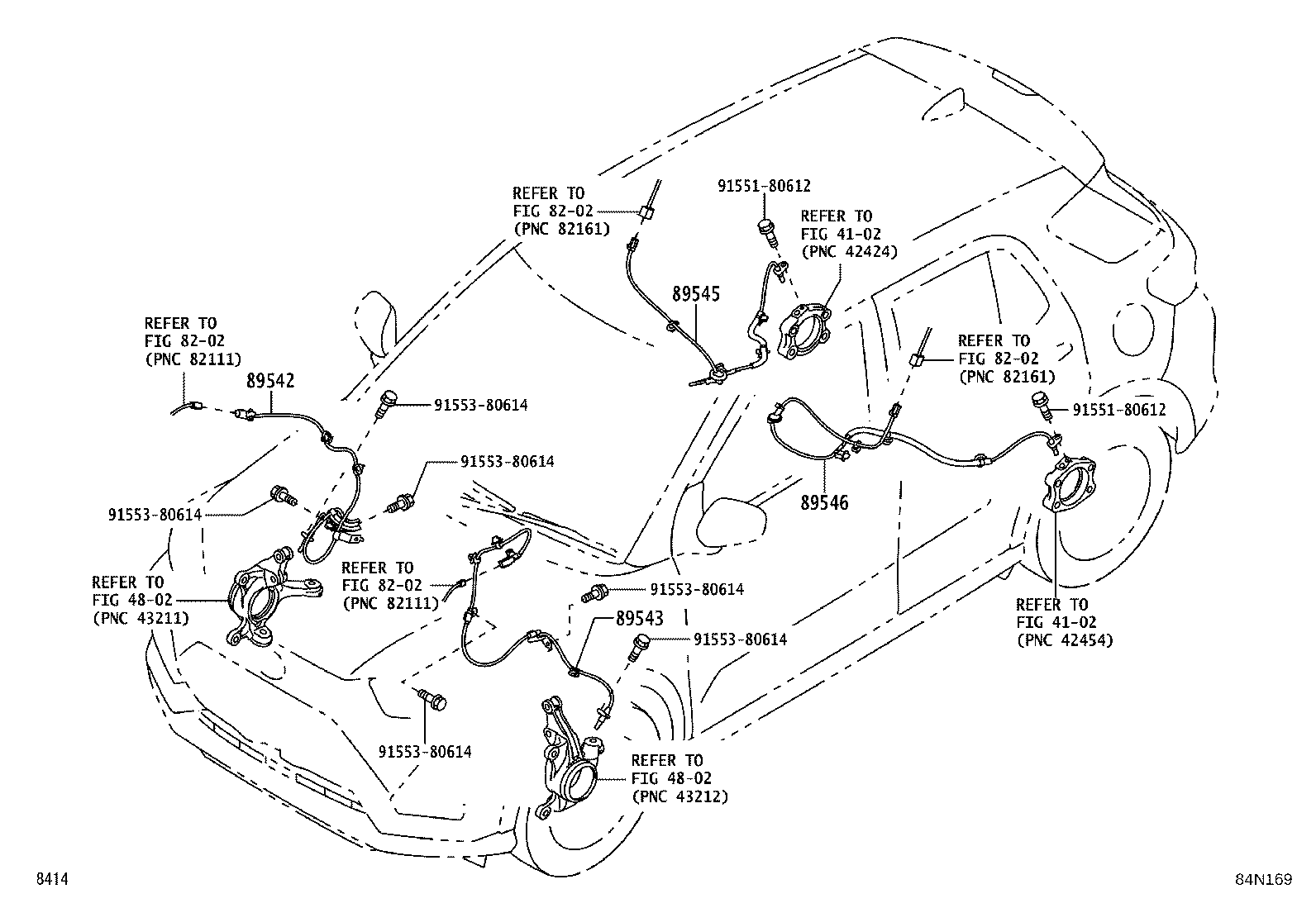

Click highlighted areas on diagram

4WD

diagram 4102 4102 4802 4802 8202 8202 8202 8202 89542 89543 89545 89546 9155180612 9155180612 9155380614 9155380614 9155380614 9155380614 9155380614 9155380614
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-B1050

A200,210

 1
89543 - SENSOR, SPEED, FRONT LH
89543-B1060

A200,210

 1
89545 - SENSOR, SPEED, REAR RH
89545-B1110

A210

 1
89546 - SENSOR, SPEED, REAR LH
89546-B1040

A210

 1
Common parts
91551-80612
91553-80614
Linked diagrams
4102
4802
8202
