Toyota Raize A210A WIRING & CLAMP

A210A-GBSV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021

Engine 1KRVET

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(1910- )

Click highlighted areas on diagram

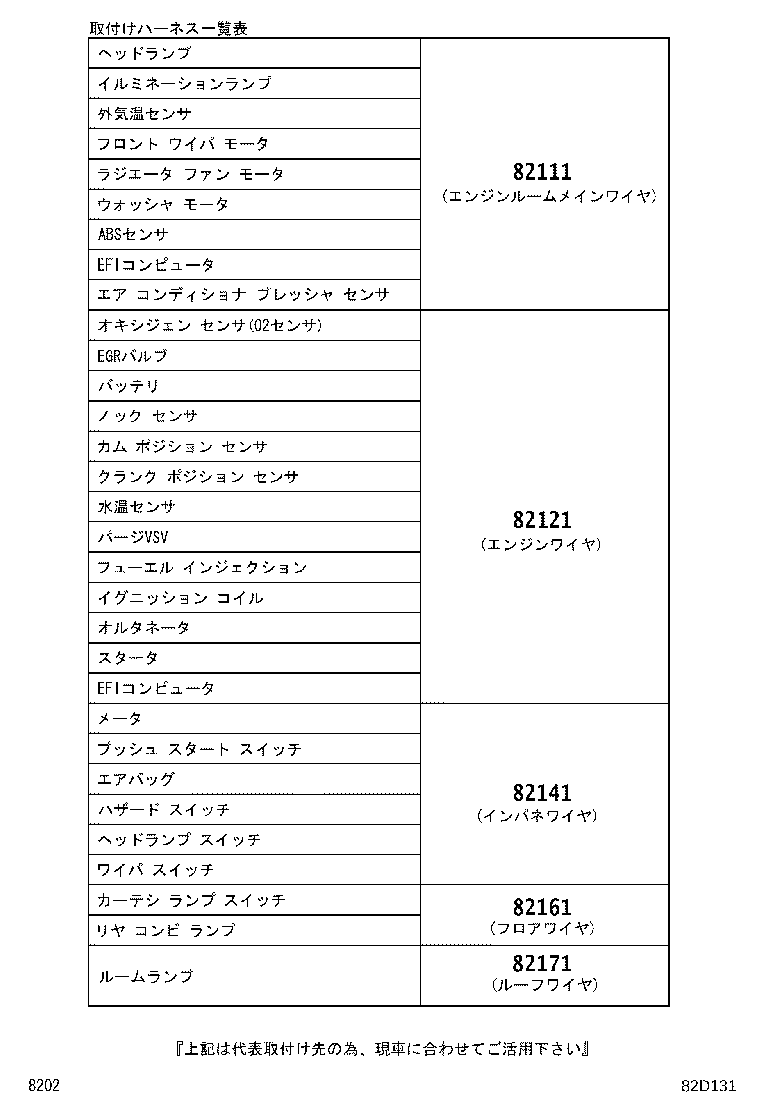

ﾜｲﾔﾊｰﾈｽｲﾁﾗﾝ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-B1K20	A210..G,X	10/2019 - 10/2021	1
82111-B1L10	A200,210..Z ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82111-B1K70	A200,210..G ﾊﾟﾉﾗﾏﾓﾆﾀﾊﾟｯｸ&9”DA(TMC用)	10/2019 - 10/2021	1
82111-B1L10	A200,210..Z ﾊﾟﾉﾗﾏﾓﾆﾀﾊﾟｯｸ&9”DA(TMC用)	10/2019 - 10/2021	1
82111-B1K80	A210..Z	10/2019 - 10/2021	1
82111-B1K70	A200,210..G ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82121 - WIRE, ENGINE
82121-B1510	A200,210	10/2019 - 10/2021	1
82141 - WIRE, INSTRUMENT PANEL
82141-B1L70	A210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀﾊﾟｯｸ&9”DA(TMC用)	10/2019 - 10/2021	1
82141-B1L00	A210	10/2019 - 10/2021	1
82141-B1L70	A210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82161 - WIRE, FLOOR
82161-B1D30	A210..G,Z BSM(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ)付き	10/2019 - 10/2021	1
82161-B1D40	A210	10/2019 - 10/2021	1
82171 - WIRE, ROOF, NO.1
82171-B1360	A200,210 純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82171-B1360	A200,210 9”DA(TMC用)	10/2019 - 10/2021	1
82171-B1360	A200,210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82171-B1410	A200,210	10/2019 - 10/2021	1

ILLUST NO. 5 OF 8(1910- )

Click highlighted areas on diagram

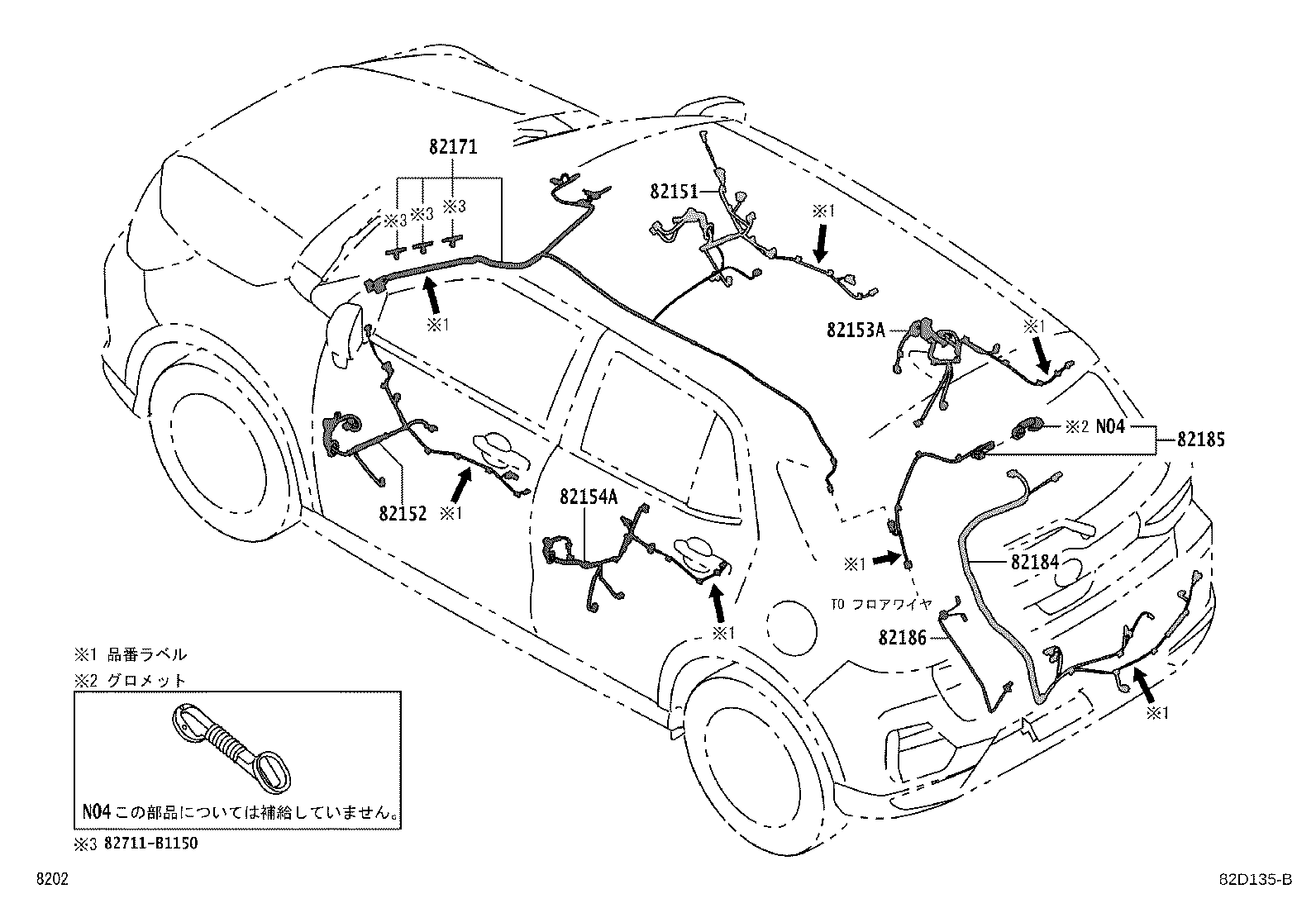

ﾄﾞｱ&ﾙｰﾌ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-B1590	A200,210..G,Z	10/2019 - 10/2021	1
82151-B1540	A200,210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀﾊﾟｯｸ&9”DA(TMC用)	10/2019 - 10/2021	1
82151-B1540	A200,210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82152 - WIRE, FRONT DOOR, LH
82152-B1510	A200,210..G,Z	10/2019 - 10/2021	1
82152-B1490	A200,210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀﾊﾟｯｸ&9”DA(TMC用)	10/2019 - 10/2021	1
82152-B1490	A200,210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82153A - WIRE, REAR DOOR, RH
82153-B1120	A200,210	10/2019 - 10/2021	1
82154A - WIRE, REAR DOOR, LH
82153-B1120	A200,210	10/2019 - 10/2021	1
82171 - WIRE, ROOF, NO.1
82171-B1360	A200,210 純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82171-B1360	A200,210 9”DA(TMC用)	10/2019 - 10/2021	1
82171-B1360	A200,210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82171-B1410	A200,210	10/2019 - 10/2021	1
82184 - WIRE, BACK DOOR, NO.1
82184-B1270	A200,210	10/2019 - 10/2021	1
82185 - WIRE, BACK DOOR, NO.2
82185-B1090	A200,210 純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82185-B1090	A200,210 9”DA(TMC用)	10/2019 - 10/2021	1
82185-B1090	A200,210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82185-B1100	A200,210	10/2019 - 10/2021	1
82186 - WIRE, REAR WINDOW, NO.1
82186-B2190	A200,210	10/2019 - 10/2021	1
Common parts
82711-B1150

ILLUST NO. 6 OF 8(1910-2110)

Click highlighted areas on diagram

ﾌﾛｱ

Part #	Description	Period	Qty

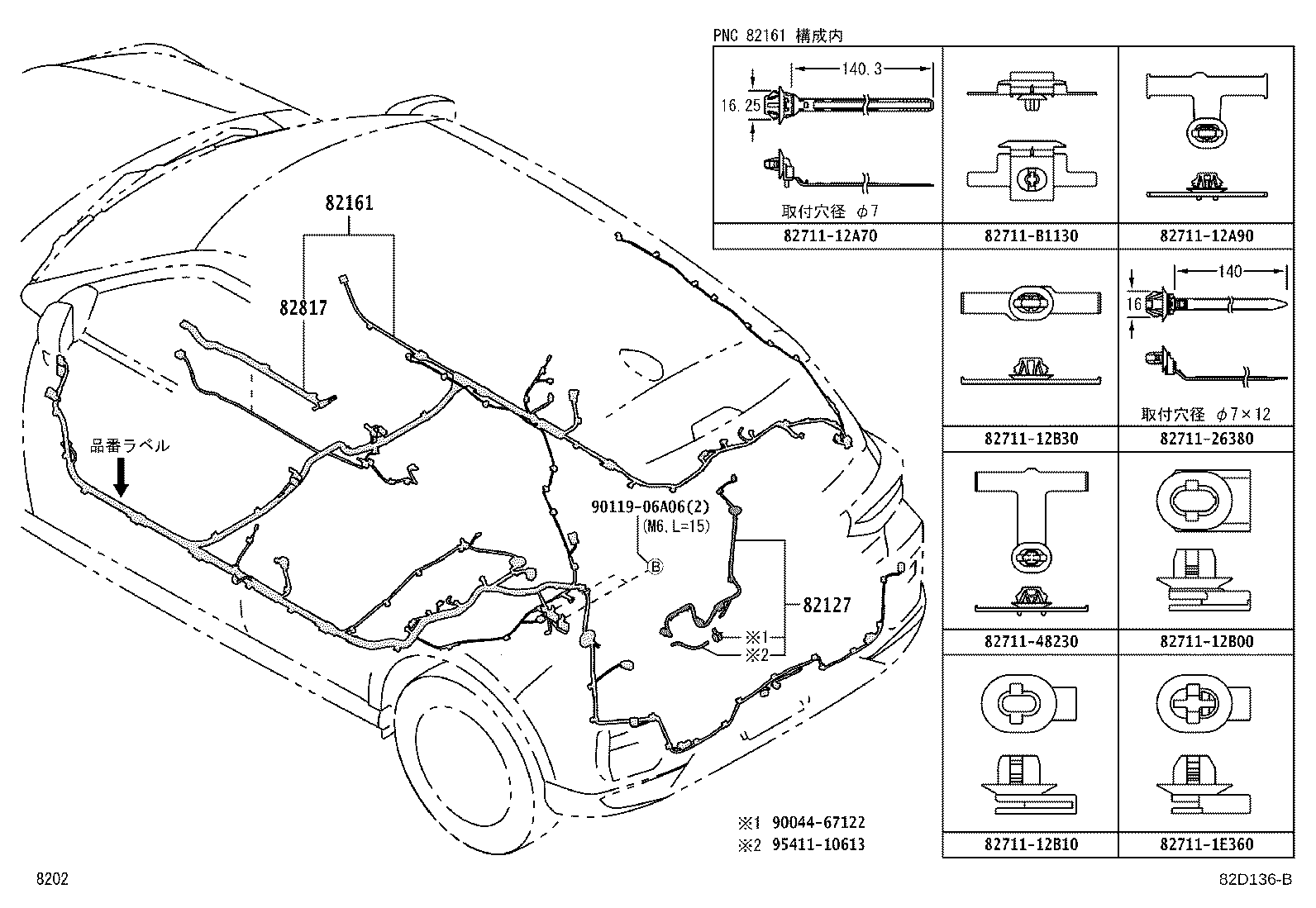

82127 - WIRE, DIFFERENTIAL
41440-B1010	A210	10/2019 - 10/2021	1
82161 - WIRE, FLOOR
82161-B1D30	A210..G,Z BSM(ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ)付き	10/2019 - 10/2021	1
82161-B1D40	A210	10/2019 - 10/2021	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-B1110	A200,210	10/2019 - 10/2021	1
Common parts
82711-12A70
82711-12A90
82711-12B00
82711-12B10
82711-12B30
82711-1E360
82711-26380
82711-48230
82711-B1130
90044-67122
90119-06A06
95411-10613

ILLUST NO. 2 OF 8(1910-2110)

Click highlighted areas on diagram

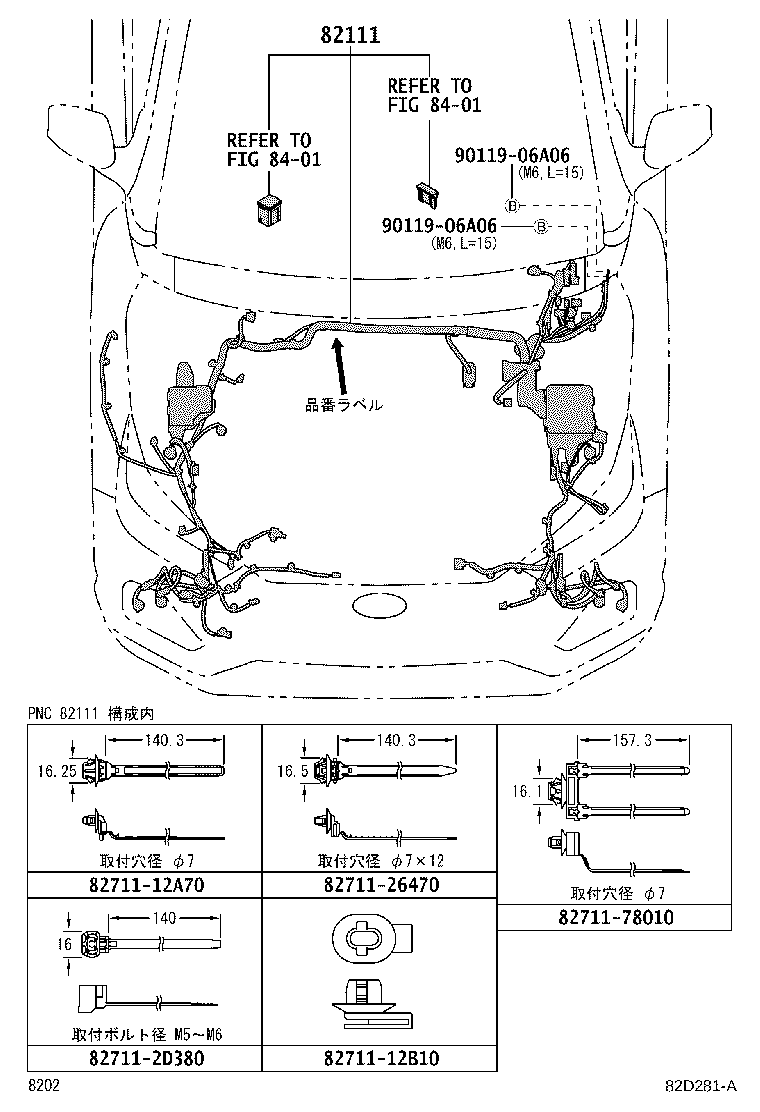

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-B1K20	A210..G,X	10/2019 - 10/2021	1
82111-B1L10	A200,210..Z ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82111-B1K70	A200,210..G ﾊﾟﾉﾗﾏﾓﾆﾀﾊﾟｯｸ&9”DA(TMC用)	10/2019 - 10/2021	1
82111-B1L10	A200,210..Z ﾊﾟﾉﾗﾏﾓﾆﾀﾊﾟｯｸ&9”DA(TMC用)	10/2019 - 10/2021	1
82111-B1K80	A210..Z	10/2019 - 10/2021	1
82111-B1K70	A200,210..G ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
Common parts
82711-12A70
82711-12B10
82711-26470
82711-2D380
82711-78010
90119-06A06
Linked diagrams
8401

ILLUST NO. 3 OF 8(1910- )

Click highlighted areas on diagram

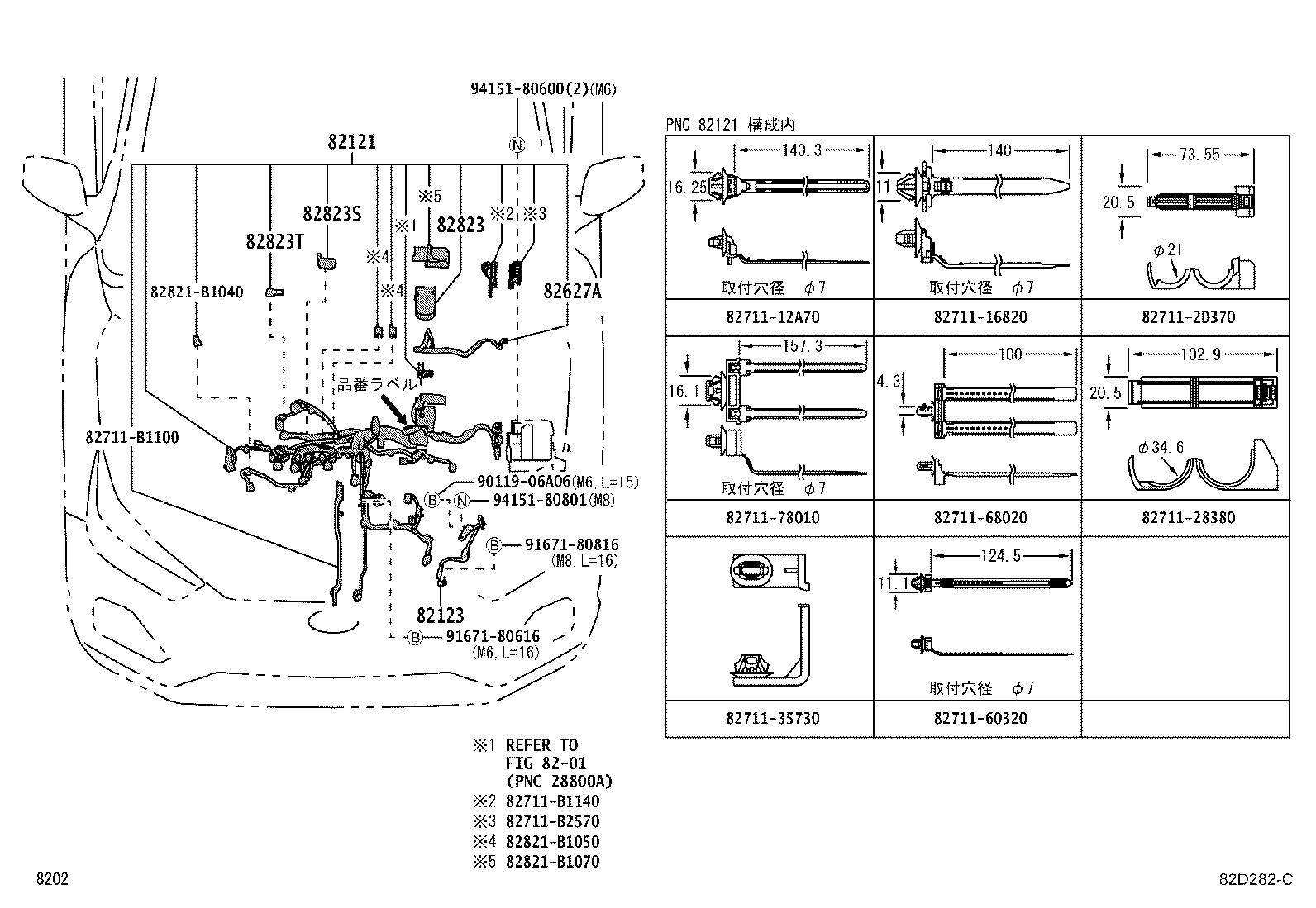

ｴﾝｼﾞﾝ(1KRVET)

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-B1510	A200,210	10/2019 - 10/2021	1
82123 - WIRE, ENGINE, NO.3
82123-B1160	A200,210	10/2019 - 10/2021	1
82627A - WIRE, FUSIBLE LINK
82627-B1070	A200,210	10/2019 - 10/2021	1
82823 - CAP, TERMINAL, NO.1
82823-B2040	A200,210	10/2019 - 10/2021	1
82823S - CAP, STARTER TERMINAL
82823-B2050	A200,210	10/2019 - 10/2021	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22070	A200,210	10/2019 - 10/2021	1
Common parts
82711-12A70
82711-16820
82711-28380
82711-2D370
82711-35730
82711-60320
82711-68020
82711-78010
82711-B1100
82711-B1140
82711-B2570
82821-B1040
82821-B1050
82821-B1070
90119-06A06
91671-80616
91671-80816
94151-80600
94151-80801
Linked diagrams
8201

ILLUST NO. 4 OF 8(1910-2110)

Click highlighted areas on diagram

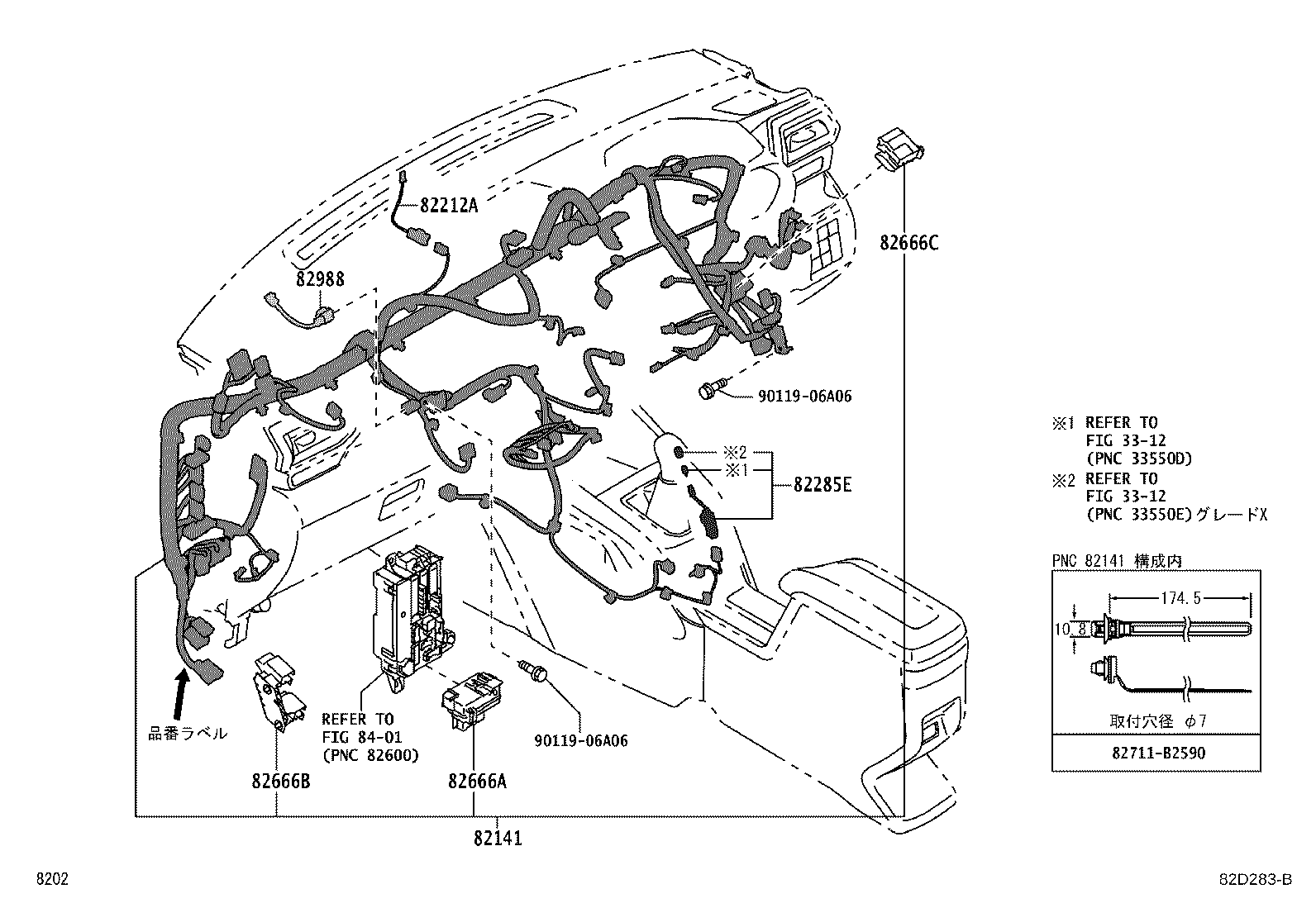

ｲﾝﾊﾟﾈ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-B1L70	A210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀﾊﾟｯｸ&9”DA(TMC用)	10/2019 - 10/2021	1
82141-B1L00	A210	10/2019 - 10/2021	1
82141-B1L70	A210..G,Z ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	10/2019 - 10/2021	1
82212A - HARNESS, AIR CONDITIONER
88605-B1050	A200,210	10/2019 - 10/2021	1
82285E - WIRE, ILLUMINATION
82285-B1070	A200,210..G,Z	10/2019 - 10/2021	1
82666A - HOLDER, CONNECTOR NO.2
82666-B2230	A200,210	10/2019 - 10/2021	1
82666B - HOLDER, CONNECTOR NO.3
82666-B2240	A200,210	10/2019 - 10/2021	1
82666C - HOLDER, CONNECTOR NO.4
82666-B2250	A200,210	10/2019 - 10/2021	1
82988 - WIRE, AIR BAG REPAIR
89171-B2070	A200,210	10/2019 - 10/2021	1
Common parts
82711-B2590
90119-06A06
Linked diagrams
3312
8401

ILLUST NO. 7 OF 8(1910-2110)

Click highlighted areas on diagram

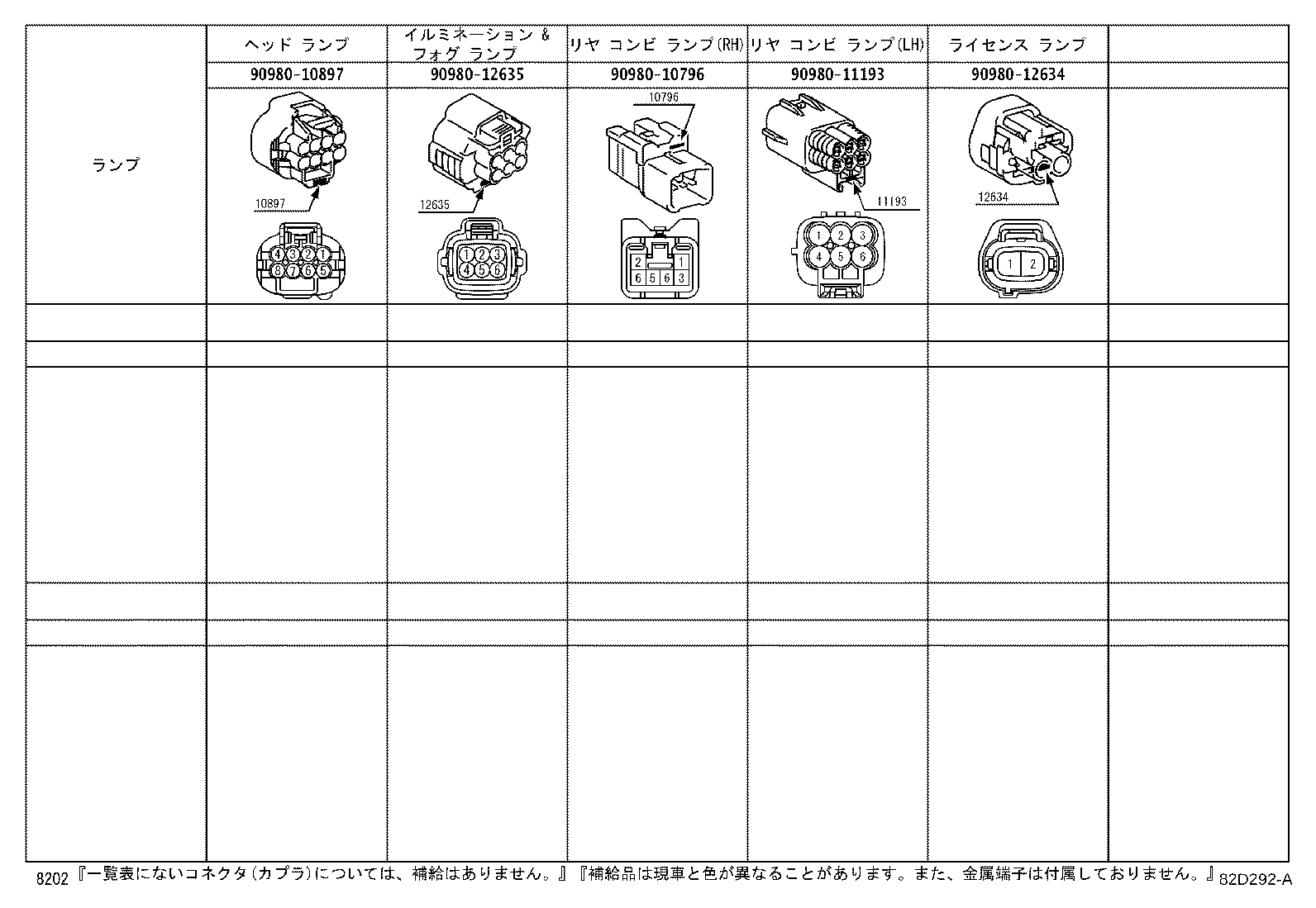

ｺﾈｸﾀ NO.1

Part #	Description	Period	Qty	Price
Common parts
90980-10796
90980-10897
90980-11193
90980-12634
90980-12635

ILLUST NO. 8 OF 8(1910-2110)

Click highlighted areas on diagram

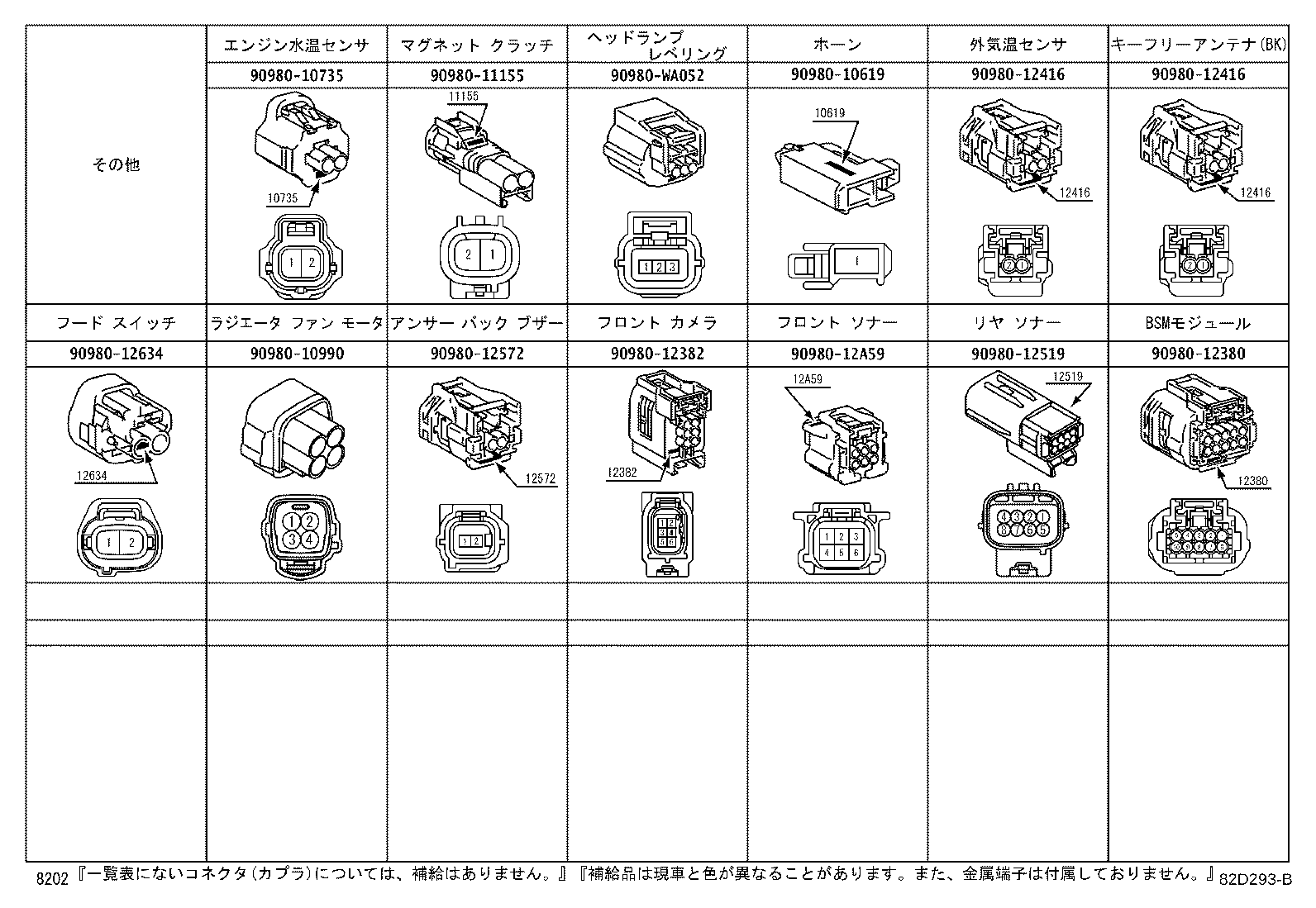

ｺﾈｸﾀ NO.2

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10735
90980-10990
90980-11155
90980-12380
90980-12382
90980-12416
90980-12519
90980-12572
90980-12634
90980-12A59
90980-WA052
